Titanium Alloy Disc Ozone Air Diffuser For Aeration Diffuser Of Fish Ponds Ozone Water Mixing/pond Aeration Diffuser
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
1999
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pond Fountain Aerator Aeration Diffuser Disc Ozone DiffusingNegotiableMOQ: 1 -
Titanium Alloy Ozone Wastewater Treatment Equipment Titanium Alloy Aerator Head Aerator DiscNegotiableMOQ: 1
-
Stainless Steel Powder Sintered Titanium Titanium Alloy Ozone Aeration Equipment Aeration HeadNegotiableMOQ: 1
-
Titanium Alloy Ozone Diffuser Aeration Stone for Sewage TreatmentNegotiableMOQ: 1
-
Water Treatment Titanium Air Disc Diffusers Alloy Aerator Fish Pond Nano Bubble Aeration DiffusersNegotiableMOQ: 1
Product name | Titanium alloy aerator /Ozone Diffuser |
Material | Sintered with 99% purity industrial titanium powder |
Product Advantages | Durable, can be used for a long time； When it is clogged with dirt or producing bubbles with low quantity, you can wash it for re-used； |

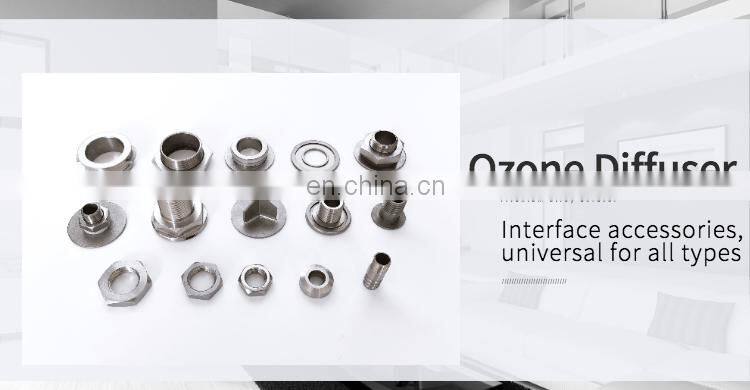

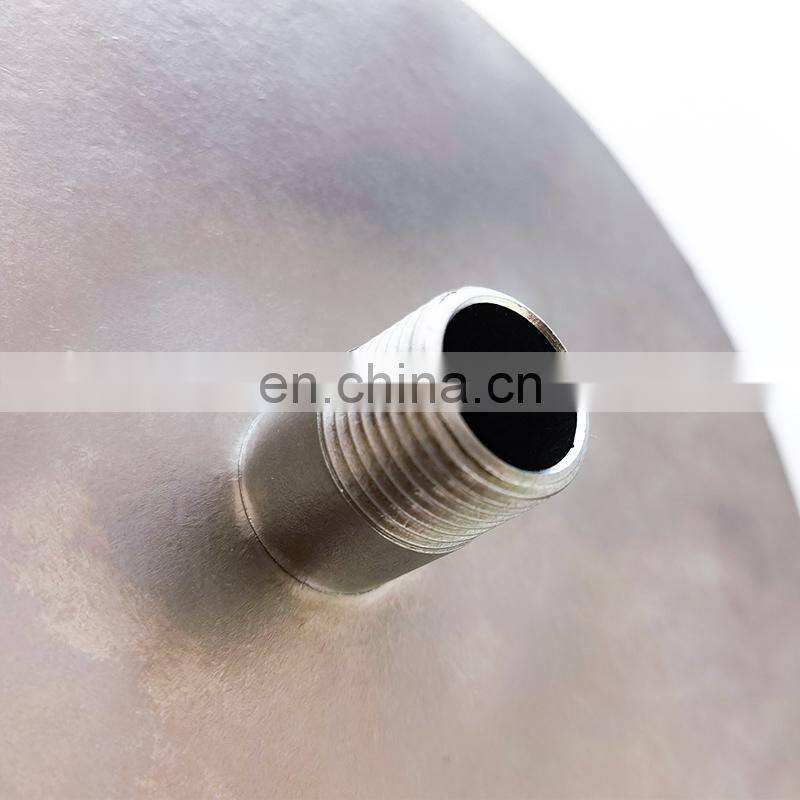

Interface | Four-point interface (interface diameter: 2CM)/six-point interface (interface diameter: 2.5CM)/customized |

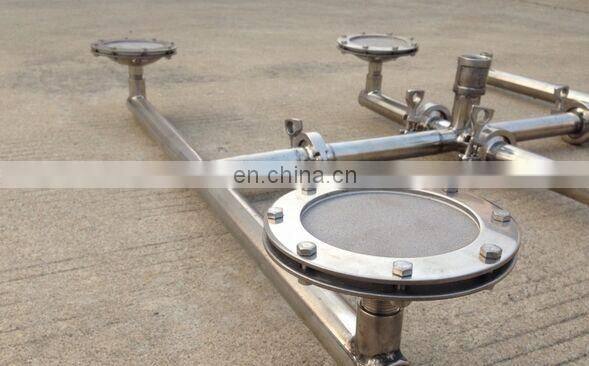

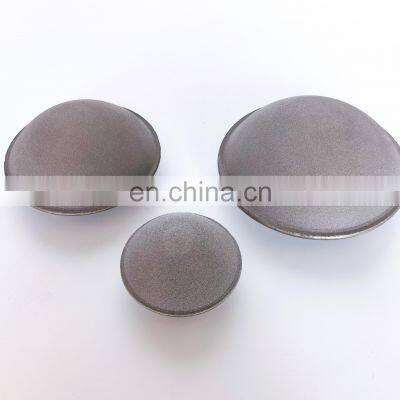

Classification | Mushroom head aerator, aeration tube, aeration plate |
Size (diameter) | Interface (customizable) | Filtration | Material |
100mm | Four points /Six points | 0.22μm-100μm | 99.68% Purity titanium |
150mm | Four points /Six points | 0.22μm-100μm | 99.68% Purity titanium |
180mm | Four points /Six points | 0.22μm-100μm | 99.68% Purity titanium |
Product Description

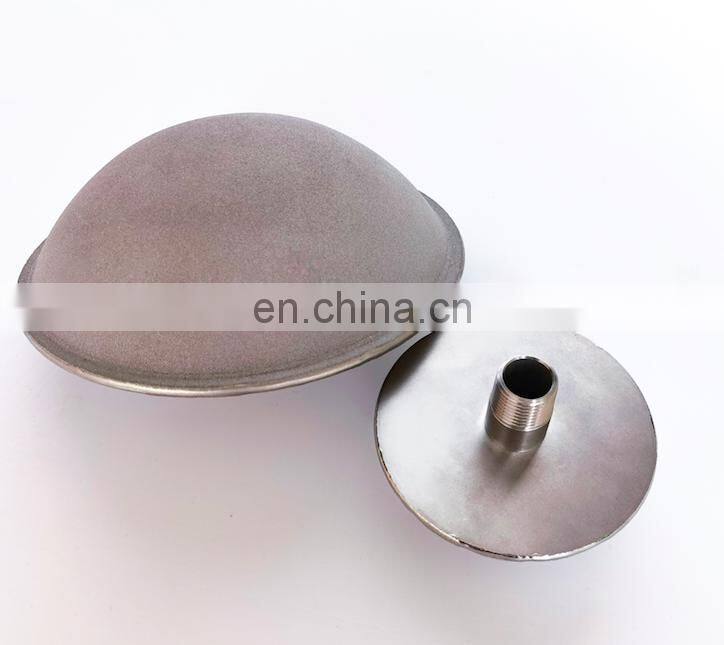

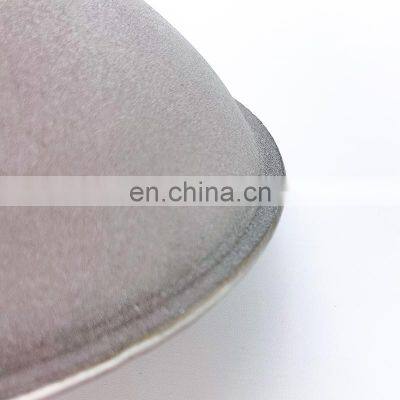

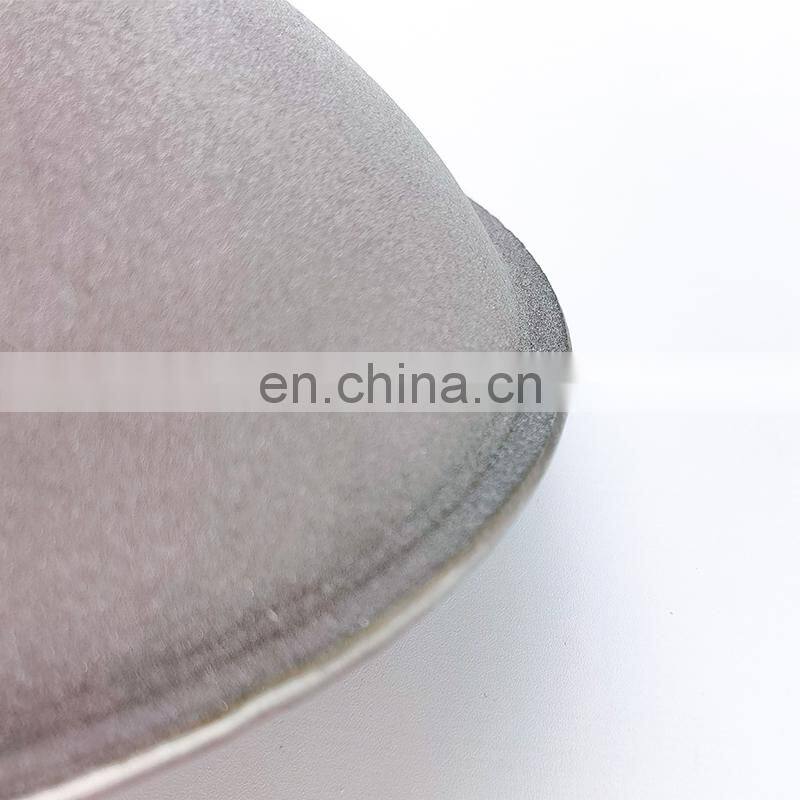

The microporous pure titanium aeration head uses industrial titanium powder (purity ≥99.6899%) as the main raw material and is sintered at high temperature and high vacuum.
Its structure is uniform, the micropore diameter is 0.22-100um, the porosity is 25-50%, the filtration resistance is small, the separation and purification efficiency is high, the mechanical properties are good, the thickness is 3 mm, the aeration bubble is 0.1-2 mm, and the aeration resistance is small The gas-liquid interface area is large, the bubbles are diffused evenly, no holes are blocked, and the corrosion resistance is strong.
The energy consumption is 40% lower than that of the conventional aerator, and the sewage treatment capacity is doubled. The service life is up to ten years. It is especially suitable for the expansion of urban sewage and large-scale water plants and the reconstruction of old aeration tanks.
Product Advantage
1. Uniform pore size, high porosity, stable pore shape;
2. Bubbles diffuse uniformly, the diameter of aeration bubbles is small, and the area of gas-liquid boundary is large;
3, high temperature resistance, can be used normally below 280℃;
4, the filtration resistance is small, the separation and purification efficiency is high, and the mechanical performance is good;
5. No clogging of holes, good chemical stability, acid and alkali corrosion resistance;
6.It has anti-oxidation performance and reduces energy consumption by 40% compared with conventional aerators;
7, non-magnetic, non-toxic, no shedding, no pollution, good biological compatibility
8. Strong anti-microbial ability, does not interact with microorganisms;
9. Good airtightness, compact structure, not easy to damage, suitable for harsh working conditions;
10. It can be regenerated online, is easy to clean, and has a long service life.
2. Bubbles diffuse uniformly, the diameter of aeration bubbles is small, and the area of gas-liquid boundary is large;
3, high temperature resistance, can be used normally below 280℃;
4, the filtration resistance is small, the separation and purification efficiency is high, and the mechanical performance is good;
5. No clogging of holes, good chemical stability, acid and alkali corrosion resistance;
6.It has anti-oxidation performance and reduces energy consumption by 40% compared with conventional aerators;
7, non-magnetic, non-toxic, no shedding, no pollution, good biological compatibility
8. Strong anti-microbial ability, does not interact with microorganisms;
9. Good airtightness, compact structure, not easy to damage, suitable for harsh working conditions;
10. It can be regenerated online, is easy to clean, and has a long service life.
Application

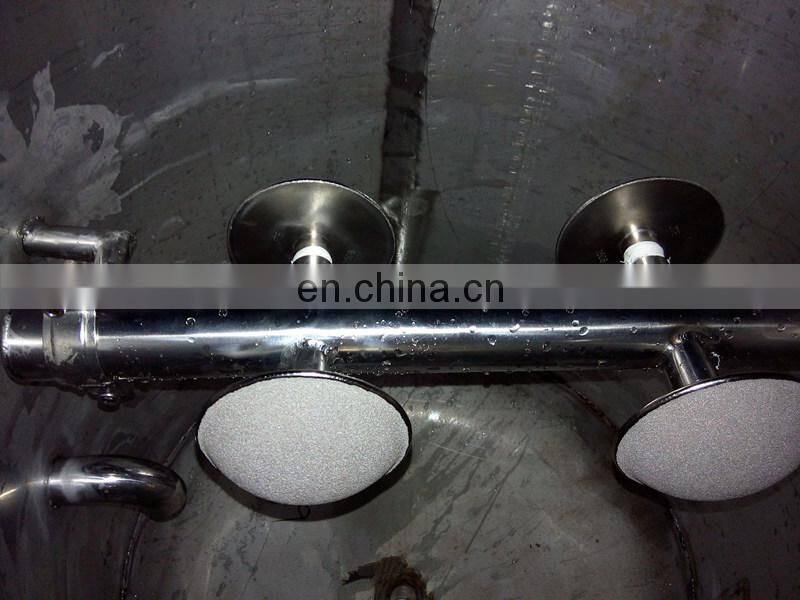

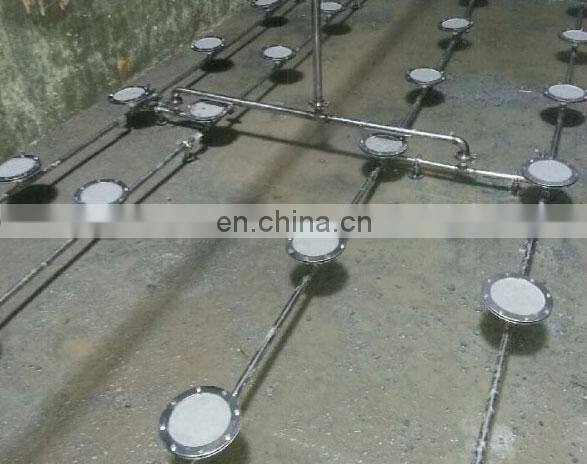

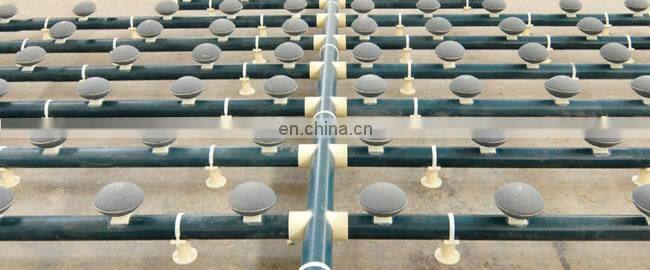

The scope of application includes urban sewage, chemical industry, petrochemical industry, biological engineering, pharmaceutical industry, food industry, new expansion of large-scale water plants, and old aeration tank transformation.
Cleaning method
1. Because the surface is mostly non-water-soluble salts and oxides, it is generally soaked in 5% nitric acid, and the cleaning effect can be achieved without ultrasonic cleaning;
2. Soak in 3-5% analytical pure solution of sodium hydroxide for 30-60 minutes at a temperature of about 40 degrees, which is excellent in an ultrasonic cleaning machine. After soaking, use filtered deionized water or water for injection to flush inside and outside to neutral;
3, soak in 5% nitric acid solution for more than 8 hours, the temperature is about 40 ℃. Excellent in ultrasonic cleaners. After soaking, use filtered deionized water or water for injection to rinse internally and externally to neutral;
4. Organic matter pollution can be cleaned with surfactants, and the cell debris pollution system combined with enzyme cleaning effect is more ideal.
Note: The above methods can be used alone or in combination with each other. If possible, combined with an ultrasonic cleaning machine, the effect is superb.
2. Soak in 3-5% analytical pure solution of sodium hydroxide for 30-60 minutes at a temperature of about 40 degrees, which is excellent in an ultrasonic cleaning machine. After soaking, use filtered deionized water or water for injection to flush inside and outside to neutral;
3, soak in 5% nitric acid solution for more than 8 hours, the temperature is about 40 ℃. Excellent in ultrasonic cleaners. After soaking, use filtered deionized water or water for injection to rinse internally and externally to neutral;
4. Organic matter pollution can be cleaned with surfactants, and the cell debris pollution system combined with enzyme cleaning effect is more ideal.
Note: The above methods can be used alone or in combination with each other. If possible, combined with an ultrasonic cleaning machine, the effect is superb.
