Wastewater Treatment Machine Volute Sludge Dewatering Equipment Solid Liquid Separator For Sewage Treatment Plant

Name: Wastewater Treatment Machine Volute Sludge Dewatering Equipment Solid Liquid Separator For Sewage Treatment Plant
Brand: SANSHINE
Price: USD $14890 - 16460 / Set

FOB Price

USD $14890 - $16460 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Shanghai
Payment Terms:T/T L/C

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

SANSHINE

Place of Origin:

China

Model Number:

HDL-203

Product Description

PRODUCT OVERVIEW

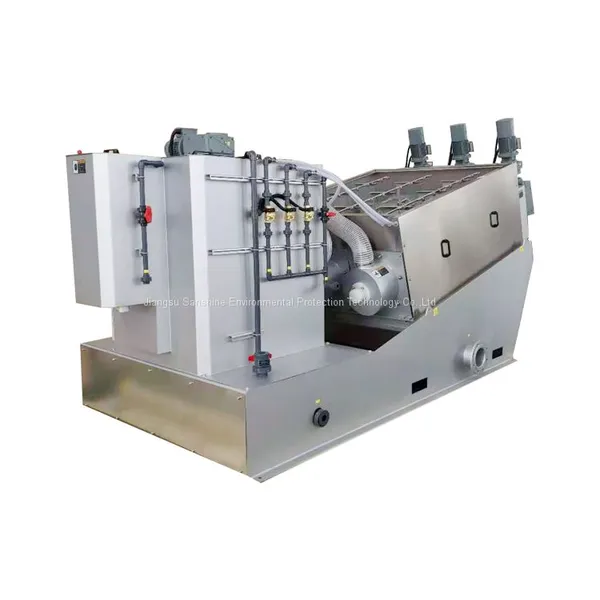

SCREW PRESS SLUDGE DEWATERING MACHINE

Following the principles of the same direction of force water, thin layer dewatering, proper pressure and extension of dewatering path, SANSHINE screw dewatering machine solves the technical problems of the previous generations of sludge dewatering equipment, such as easy blockage, unable to deal with low concentration sludge and oily sludge, high energy consumption and complex operation, and achieves the dehydration goal of high efficiency and energy saving.

PRODUCT SPECIFICATIONS

Model	Dry Sludge Capacity (kg-DS/h)	Sludge Treating Capacity (m3/h)
Model	Low-high Concentration	2000mg/L	10000mg/L	20000mg/L	30000mg/L	40000mg/L	50000mg/L
HDL-131	4～14	2	0.6	0.5	0.4	0.3	0.28
HDL-132	8～28	4	1.2	1	0.8	0.6	0.56
HDL-201	8～20	4	1.2	0.75	0.6	0.5	0.4
HDL-202	16～40	8	2.4	1.5	1.2	1	0.8
HDL-203	24～60	12	3.6	2.25	1.18	1.5	1.2
HDL-301	20～70	10	3	2.5	2	1.5	1.4
HDL-302	40～140	20	6	5	4	3	2.8
HDL-303	60～210	30	9	7.5	6	4.5	4.2
HDL-304	80～280	40	12	10	8	6	5.6
HDL-351	40～120	20	6	5	4	3	2.4
HDL-352	80～240	40	12	10	8	6	4.8
HDL-353	120～360	60	18	15	12	9	7.2
HDL-354	160～480	80	24	20	16	12	9.6
HDL-401	67.5～160	33.7	10	6.5	5	4	3.2
HDL-402	135～320	67.5	20	13	10	8	6.4
HDL-403	200～480	100	30	19.5	15	12	9.6
HDL-404	266～640	133	40	26	20	16	12.8

FAQ

Q: Can the screw type sludge dehydrator be placed outside?
A: Yes, the protective performance of the corresponding electric cabinet and motor needs to be improved. For example, the motor needs to add rainproof cover, motor protection IP55, IP65, etc
Q: Is the mud removed from our equipment shipped directly?
A: Yes, the mud can be shipped directly.
Q: What kind of sludge is the screw type sludge dehydrator suitable for?
A: The dehydrator is a multi-plate solid-liquid separator, which is suitable for most occasions requiring solid-liquid separation, as long as the particles can be flocculated into particles larger than 0.25mm.
Q: Does screw type sludge dehydrator need to add medicine?
A: Yes, it is necessary to add flocculants to sludge to form alum flower with certain particle size and strength to enter the main body of the dehydrator for dewatering.
Q: Can screw type sludge dehydrator be self-cleaned to avoid blockage without backwash pump?
A: Yes, during operation, the swimming ring is in constant motion and has the function of self-cleaning filter joint to prevent clogging.
Q: What are the advantages of screw type sludge dehydrator compared with traditional filter press?
A: 1. Good at handling oily sludge; 2. Compact design, saving space; 3. Simple operation and maintenance; 4. Save electricity & water; 5. Low noise, low vibration
Q: How long is your warranty?
A: One year after the arrival of the goods. During this period, as long as it is not a man-made damage, we send the damaged parts for free
Q: What about your delivery time?
A: Normally within 30 days against down payment.
