12V 24V 230V High Voltage Coil Ignition Transformer For Ozone Generator Water Filters
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2001
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Current Transformer Hall Current Module DC Current Sensor Hall Effect TransformerNegotiableMOQ: 1 -
EER ETD EC High Frequency Transformer Soft Magnetic Mn-Zn Ferrite Black CoreNegotiableMOQ: 1
-
EI33 Electronic Smps Transformer High Frequency Flyback Power Transformer for Power SupplyNegotiableMOQ: 1
-
Generating Ozone Transformer HV Flyback Transformer For Laser Power SupplyNegotiableMOQ: 1
-
PQ2620 PQ2020 PQ32/30 PQ Ferrite Core P40 CoreNegotiableMOQ: 1
Product Description
Product Name |
High Voltage Ignition Coil Transformer for Ozone Generator |
Input Voltage |
12V, 24, 110V, 230V |
Output Voltage |
1KV-10KV |
Transformer Power |
10W-100W |
Dimension |
Customization |
Material |
Ferrite Core, bobbin, copper wire, epoxy |
Application |
Trigger transformer, ozone generator, gas burner, negative ion generator |
Turns Ratio |
Available in Various Turns ratio |
Type |

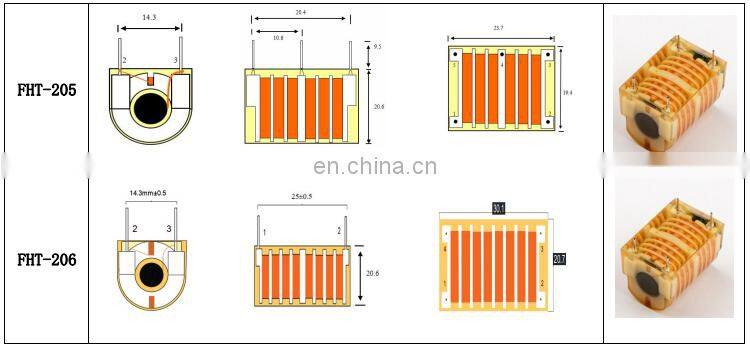

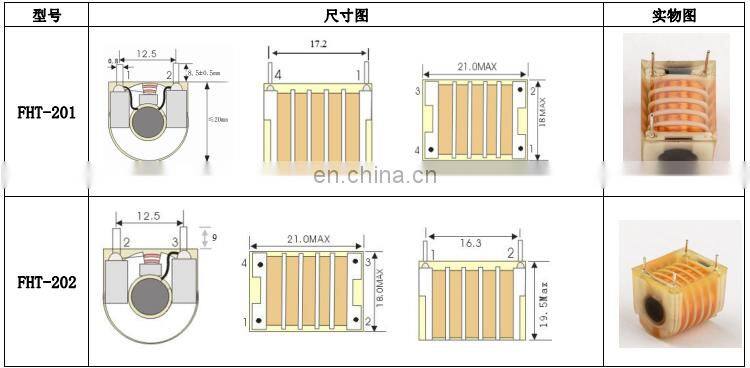

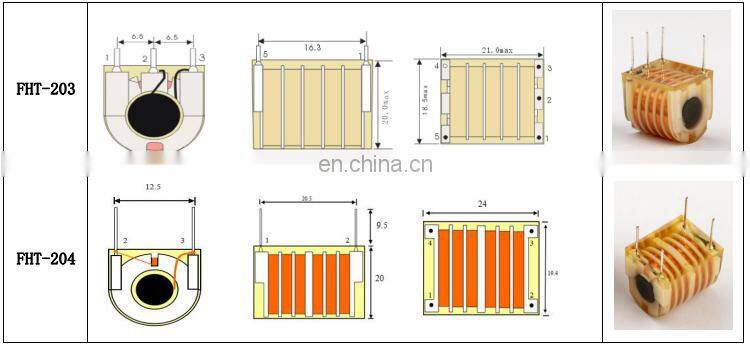

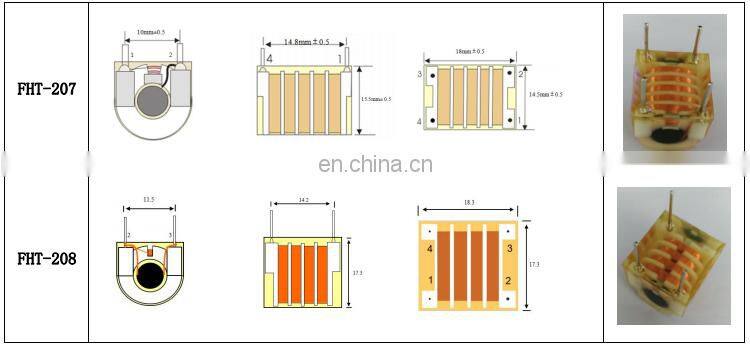

FHT201, 202, 203, 204, 205, 206, 207, 208, 209, 210.
EE16/EE19/EE25 series
R8*18.5/ R6*16.5 Series R10*20 series |
