100/5A Open Type Current Transformer /Split Core Current Sensor
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Current sensing transformer Dc Current sensor split core
-
Split core current transformer Current sensor Transformer CT 300/5 5A
-
Toroidal zero phase current transformer primary current 100A
-
Zero phase current transformer low cost current sensor primary current 100A
-
PCB Current sensing transformer toroid core transformer
-
Custom PCB Current transformer toroid core transformer
Product Description
Professional research and development / Rapid production / Best services
China Factory Current Sensor Split Core Current Sensor AC current sensor
As a ISO9001-2015 certificated factory, Fullstar SCT split core type transformer has been designed for installing easily in circuit system and network. High quality comprensive measurements available in a wide range of current ratings. Accuracy up to Class 0.5, base or Busbar mounting.
Our Advantages | ||
*Strong Support for design. Our engineers are with over 30years of experience in this field, can assist during the designing process. *Sample Support We can make free samples for low cost products. *Quick delivery Sample delivery time: 1-2 weeks. Mass production: 3-4 weeks. | *High Quality Strict quality control process ensures zero defective rates for each order. *Competitive Price Our strong supply chain system and our location give us the advantage of competitive prices on material and labor. *Customized service We are flexible to meet the various requirements of our customers. | |

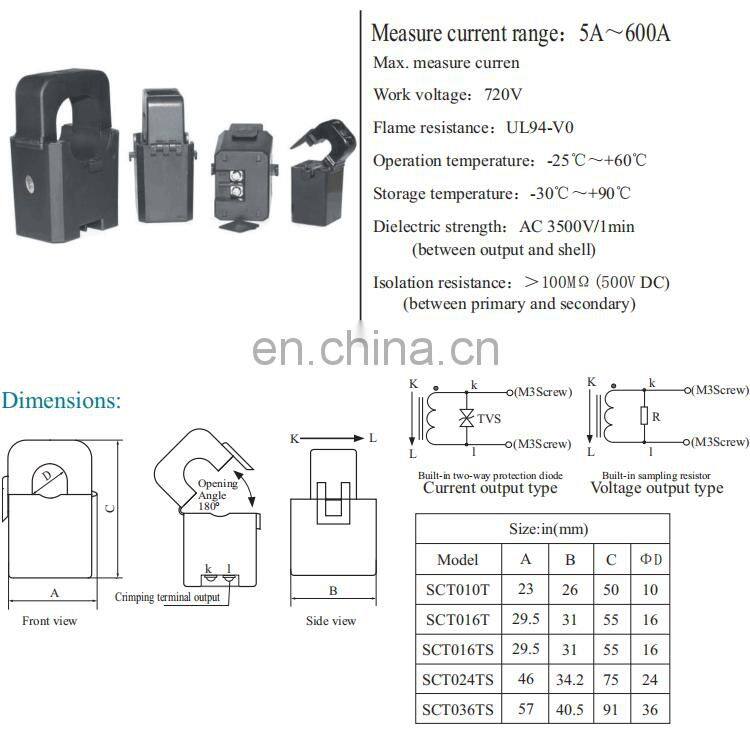

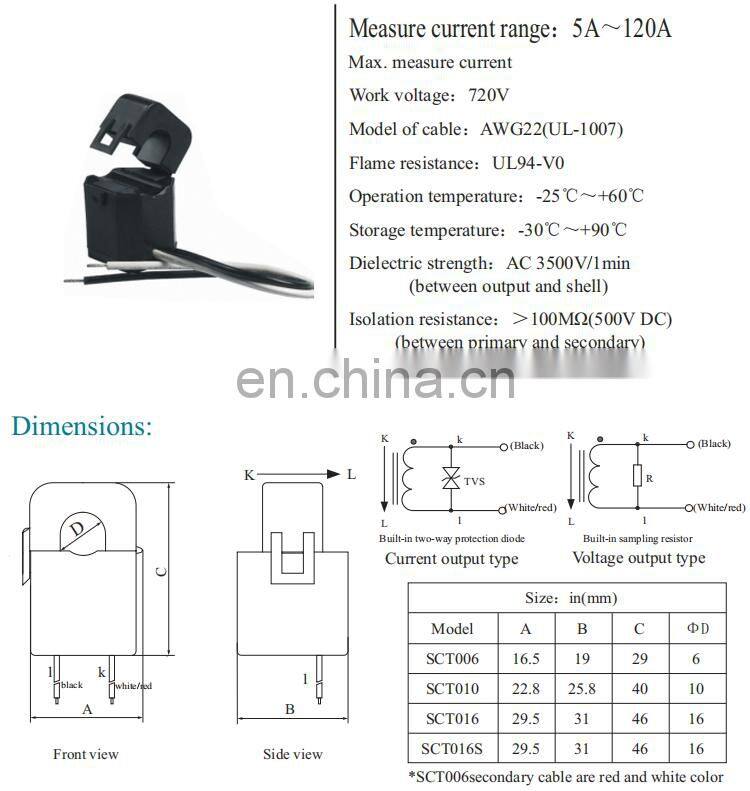

Features for our split core current transformers

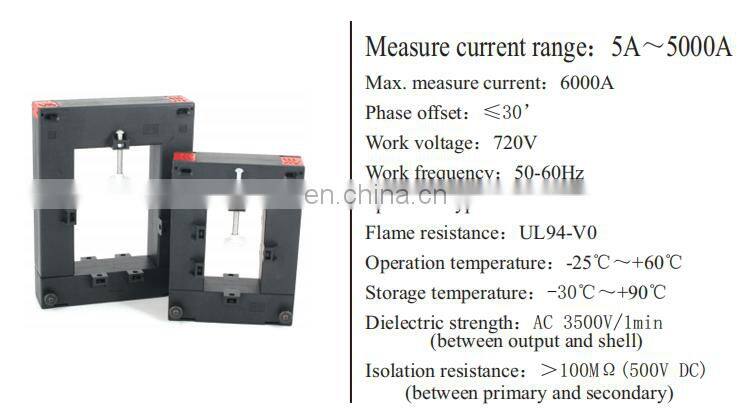

Test current range : 0.01A to 10000A
input/output current: 100A/33.3mA, 200A/100mA, 100A/1A, 200A/1A,200A/5A, 500A/5A, 600A/5A 800A/5A,1000A/5A,2000A/5A,3000A/5A,
4000A/5A 8000/5A 10000A/5A available
input/output current: 100A/33.3mA, 200A/100mA, 100A/1A, 200A/1A,200A/5A, 500A/5A, 600A/5A 800A/5A,1000A/5A,2000A/5A,3000A/5A,
4000A/5A 8000/5A 10000A/5A available
Accuracy class:0.5%, 1%, 2%
Encapsulated with epoxy resin to ensure strong insulation ability
Strong anti-magnetic disturbance epoxy current transformers-Completely-enclosed
Good mechanical behavior, suitable for various environments
Strong voltage isolation ability.
Delicate appearance
Delicate appearance
Suitable for single-phase electricity meter as well as anti-tampering electricity meter.
There are standard holes on the primary lead wire which can be directly fixed on the meter terminals with standard bolts
Customized type available
There are standard holes on the primary lead wire which can be directly fixed on the meter terminals with standard bolts
Customized type available

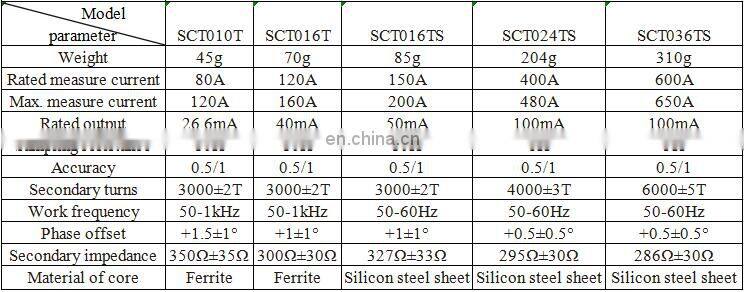

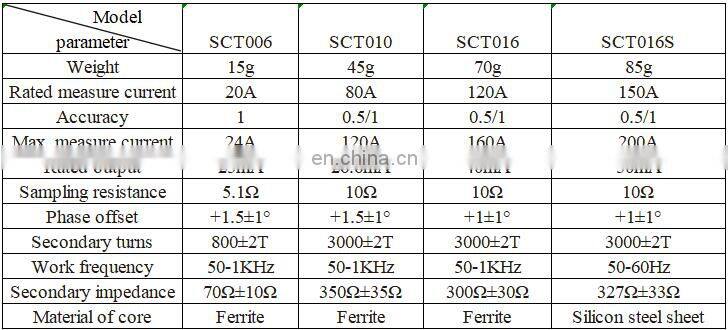

Technical parameter table:Design according to customer's requirements into voltage type or current type
Packaging and shipping
1. Neutral Packing
2.As customer requirement
2.As customer requirement
