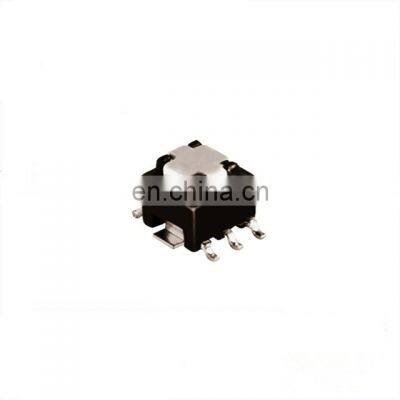

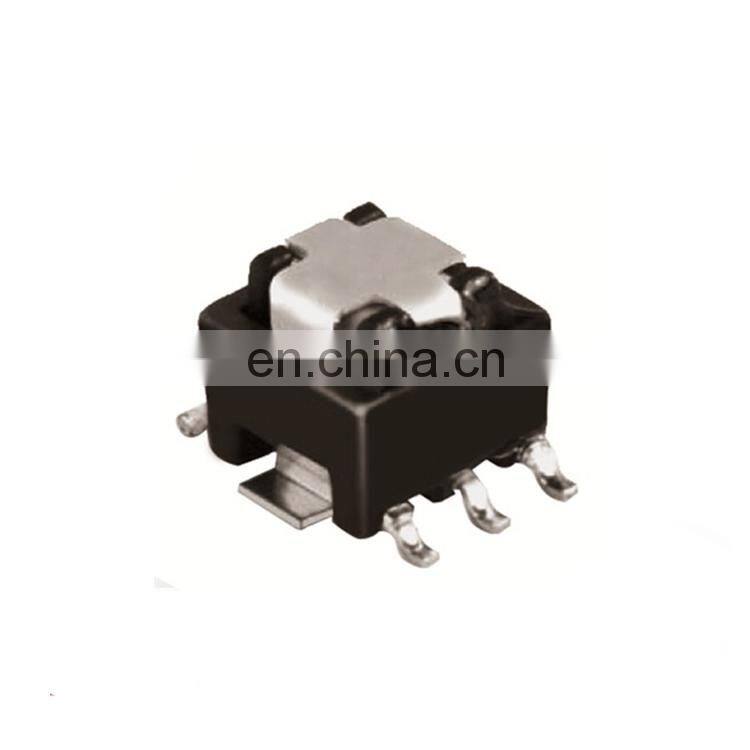

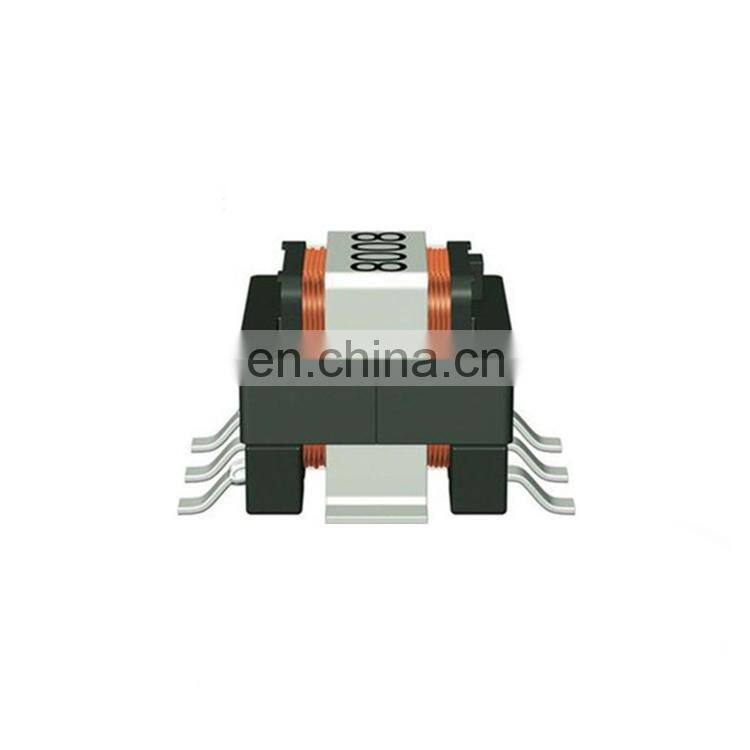

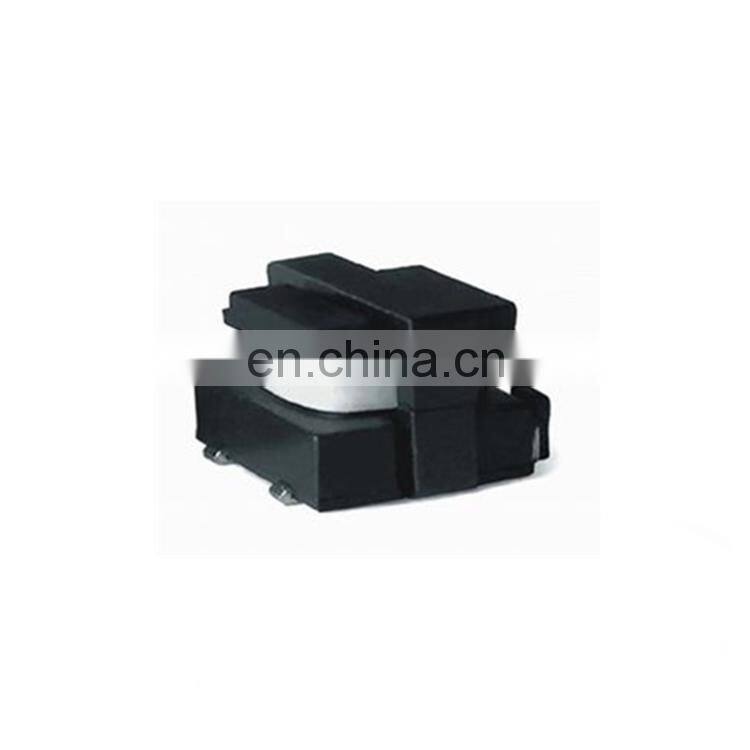

SMD High Frequency Current Transformer CTE05060
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2001
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Custom Make Ferrite Iron Core SMD High Precision Current Sensor Sensing Transformer.NegotiableMOQ: 1 -
Flexible Current Sensor Rogowski Coil Current Sensor With IntegratorNegotiableMOQ: 1
-
20A 50A Split Core Transformer CT Current SensorNegotiableMOQ: 1
-
E-meter ct High Current Transformer Price 5A 50A 100A 200ANegotiableMOQ: 1
-
100A Micro DC Miniature Electrical Current Transformer SensorNegotiableMOQ: 1
Product Description
Features:
1.Working Frequency range:50KHz-1MHz
2.Testing Frequency:10KHz 0.1Vrms
3.Hi-Pot:2000VAC,Primary to Secondary
4.Maximum Sensing Current:20A

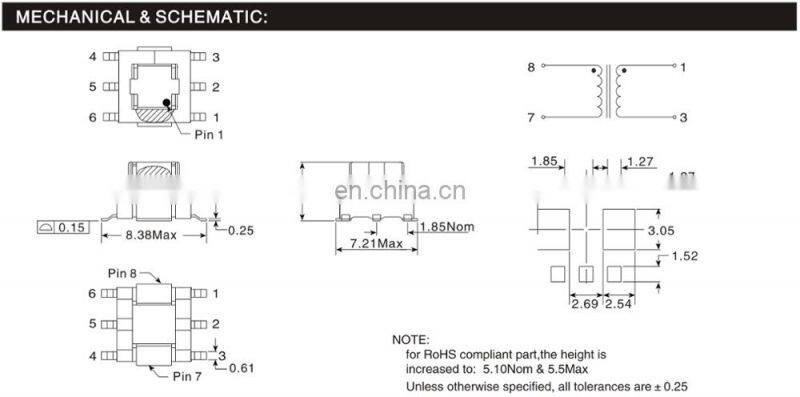

5.All Secondary measurements are in pins 1-3
6.Soldering menthods:Wave,Reflow
| Part Number | Turns ratio | Current² Rating(A) | Secondary inductance (mH)Min | DCR(mΩ Max) | Hi-Pot(Vrms) | |
| Primary(8-7) | Secondary(1-3) | |||||
| CTE05020 | 1:20 | 20 | 0.08 | 0.75 | 550 | 500 |
| CTE05030 | 1:30 | 20 | 0.18 | 0.75 | 870 | 500 |
| CTE05040 | 1:40 | 20 | 0.32 | 0.75 | 1140 | 500 |
| CTE05050 | 1:50 | 20 | 0.50 | 0.75 | 1500 | 500 |
| CTE05060 | 1:60 | 20 | 0.72 | 0.75 | 2250 | 500 |
| CTE05070 | 1:70 | 20 | 0.98 | 0.75 | 4750 | 500 |
| CTE05100 | 1:100 | 20 | 2.00 | 0.75 | 5500 | 500 |
| CTE05125 | 1:125 | 20 | 3.00 | 0.75 | 6500 | 500 |
Related products
Company Information
Packaging & Shipping
Our Services
The exhibition
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What's your quality guarantee?
A: We repair or replace parts within 18months if necessary
