100A 333mV Clamp Type DC Current Sensors Current Transformer For Electrical Loading Monitoring

100A 333mV Clamp Type DC Current Sensors Current Transformer For Electrical Loading Monitoring photo-1

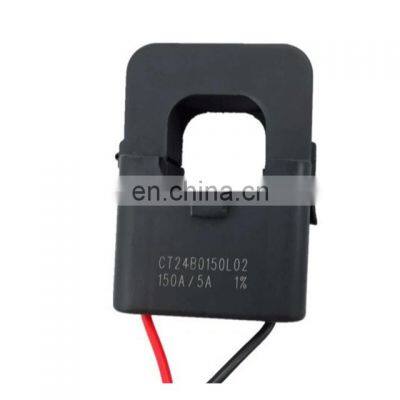

100A 333mV Clamp Type DC Current Sensors Current Transformer For Electrical Loading Monitoring photo-2

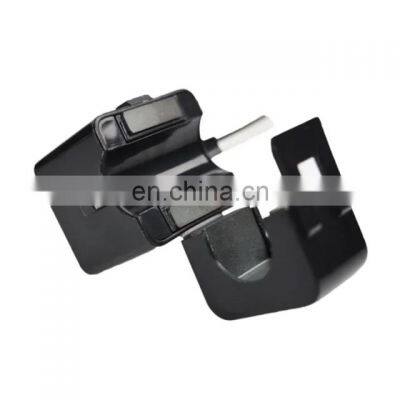

100A 333mV Clamp Type DC Current Sensors Current Transformer For Electrical Loading Monitoring photo-3
100A 333mV Clamp Type DC Current Sensors Current Transformer For Electrical Loading Monitoring photo-4
100A 333mV Clamp Type DC Current Sensors Current Transformer For Electrical Loading Monitoring photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2001
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description

Measurement current range:5A~600A

Work voltage:720v

Flame resistance:     UL94-V0

Operation temperature:    -25℃~+60℃

Storage temperature: -30℃~+90℃

Dielectric strength:AC 3500V/1min
              (between output and shell)

Isolation resistance:>100MΩ(500V DC)
               (between primary and secondary)

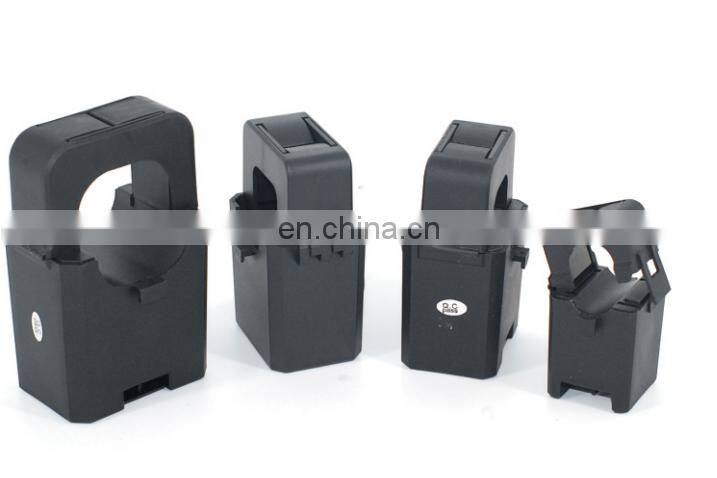

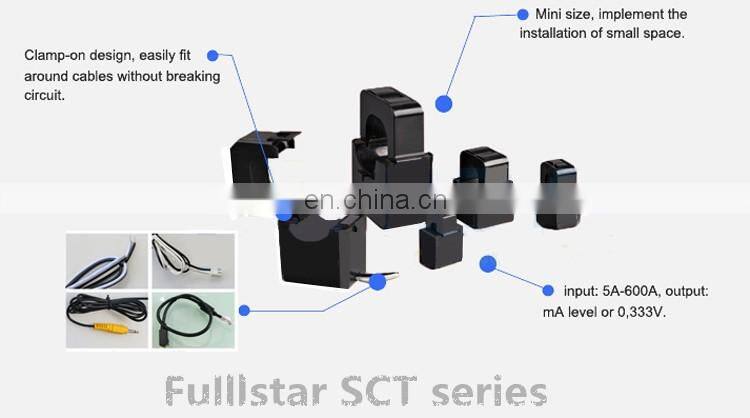

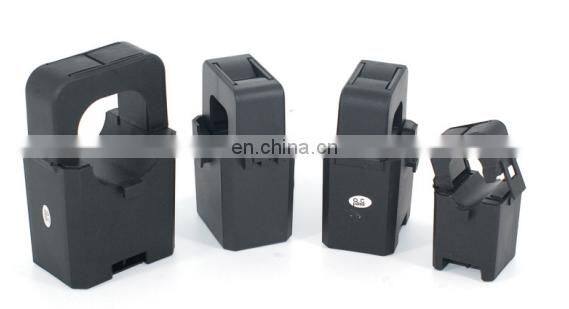

Product Show
Categories
Tseries split core current transformer
Series
T
Packaging
CARTONS
Material - Core
Ferrite
Current Rating

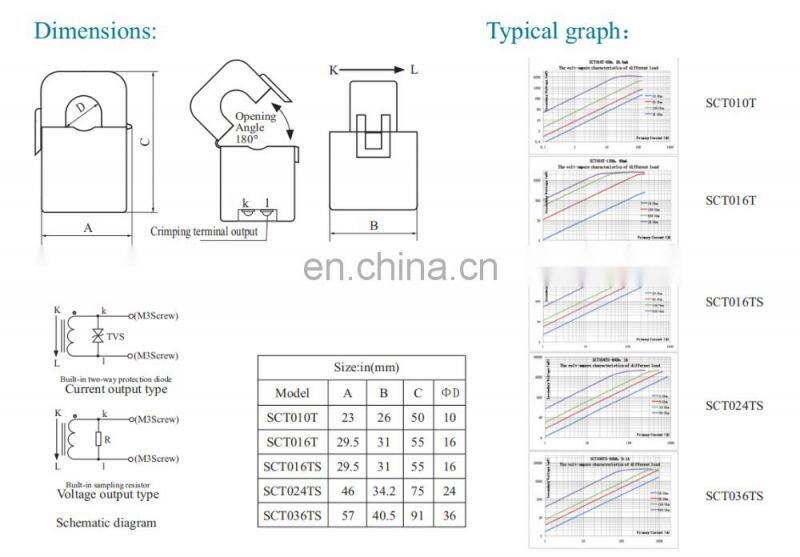

 see image below
DC Resistance (DCR)
see image below
Operating Temperature
-40°C ~ 90°C
Size / Dimension
Φ10/Φ16/Φ24/Φ36
Outside size
see image below
Model
Rated  measure current
Max.    measure current
Secondary turns
Accuracy
Rated   output
Sampling resistance
Work   frequency
Secondary impedance
(g)
SCT010T
80A
120A
3000±2T
0.5/1
26.6mA
10Ω
50-1KHz
350Ω±35Ω
45
SCT016T
120A
160A
3000±2T
0.5/1
40mA
10Ω
50-1KHz
300Ω±30Ω
70
SCT016TS
150A
200A
3000±2T
0.5/1
50mA
10Ω
50-60Hz
327Ω±33Ω
85
SCT024TS
400A
480A
4000±2T
0.5/1
100mA
50-60Hz
295Ω±30Ω
204
SCT036TS
600A
650A
6000±2T
0.5/1
100mA
50-60Hz
286Ω±30Ω
310
