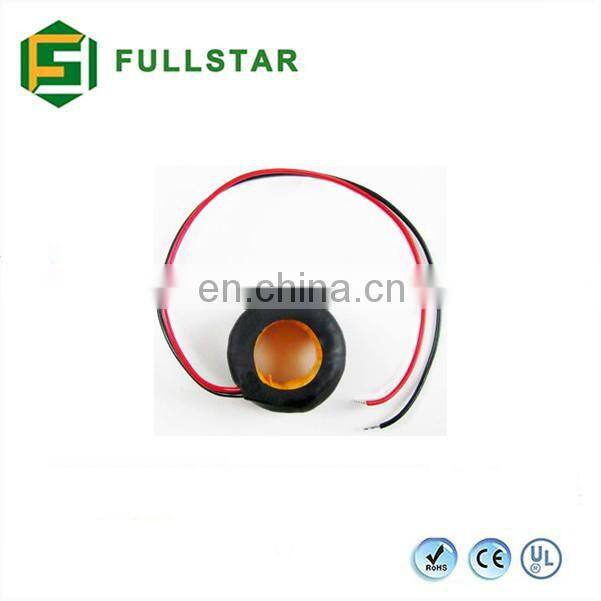

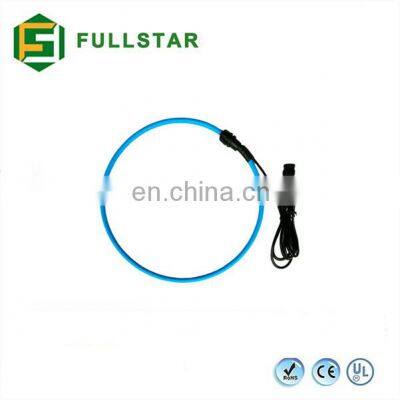

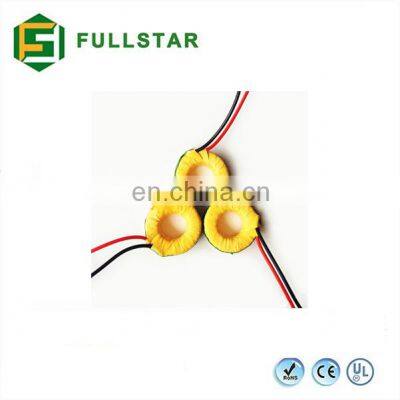

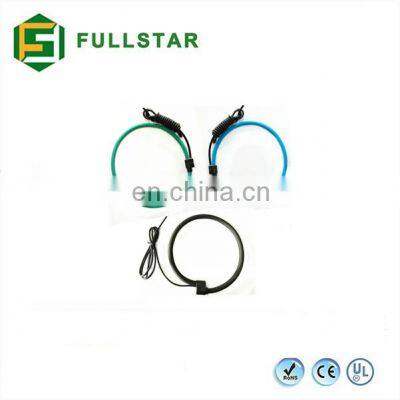

Customized Toroidal Transformer for AC Current Machine

Features:

Rated frequency: 50/50Hz
Turns ratio: (Np:Ns) 1:1000 or requirements
D.C. resistance at 20: 35©
Rated output voltage (mV): 6.6min at Io = 8.5mA, RL =1K©
Operating temperature: -20 to 65
Storage temperature: -25 to 85
Insulation resistance: 500V DC/100M© minimum
Potting: burn-resistance PBT
Electrical Strength:3,000V AC , 1mA, 60s
Working frequency: 50 to 400Hz
Current range from 1mA to 50A
Zero phase current transformers with center hole 6mm and 9mm
High frequency and high precision current transformers
Low-profile current transformers

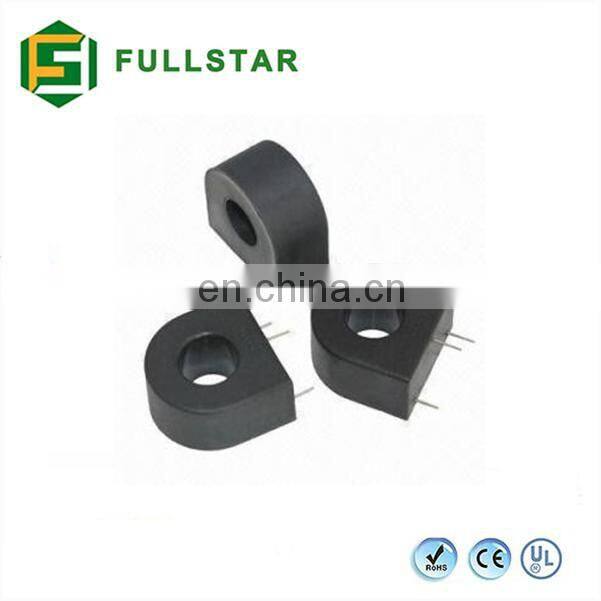

PCB solid current transformers
PBT burn-resistance current transformers
Reliable linear performance transformers
Strong anti-magnetic disturbance

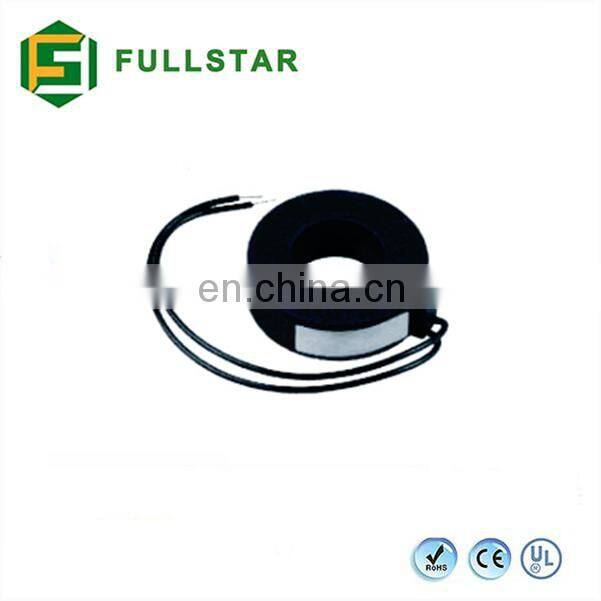

With lead through out, suitable for distance mounting
Widely used in the relay protection area
ABS anti-combustion plastic casing
Encapsulated with epoxy resin to ensure strong insulationability
Various mechanical dimensions, highly customer-tailored
There are standard holes on the external casing for fixing withstandard bolts
Linear output current, high precision
Small volume, light weight, easy for installation
High-precision current transformers
High-permeability permalloy current transformers

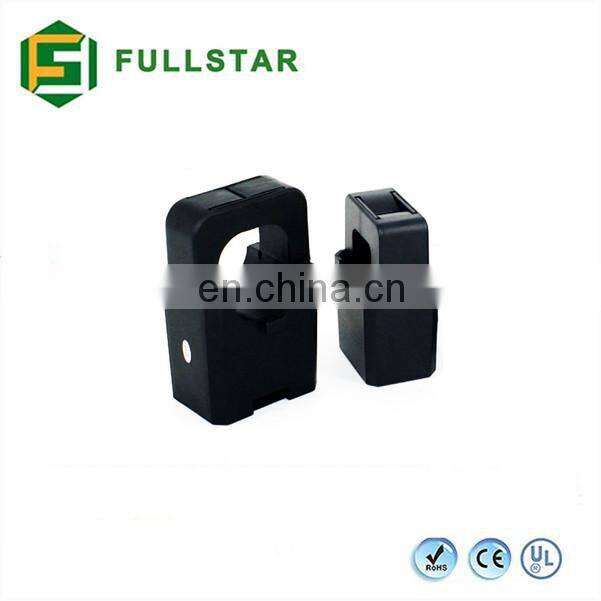

Locking snap current transformers
Distance mounting current transformers
Epoxy current transformers
Completely-enclosed current transformers
Good mechanical behavior, suitable for variousenvironments, strong voltage isolation ability, delicateappearance
Compact and delicate appearance
Suitable for single-phase electricity meter as well asanti-tampering electricity meter
There are standard holes on the primary lead wire which can bedirectly fixed on the meter terminals with standard bolts
There are standard holes on the external casing whichfacilitates installation on a PCB
Customized designs are welcome
