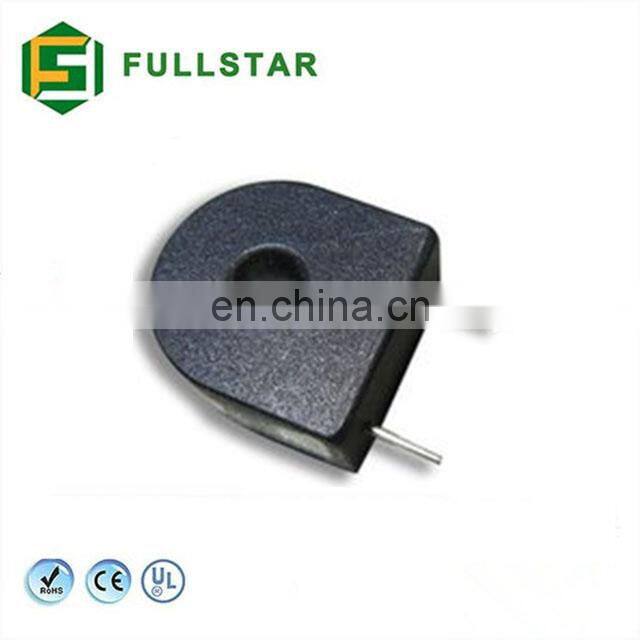

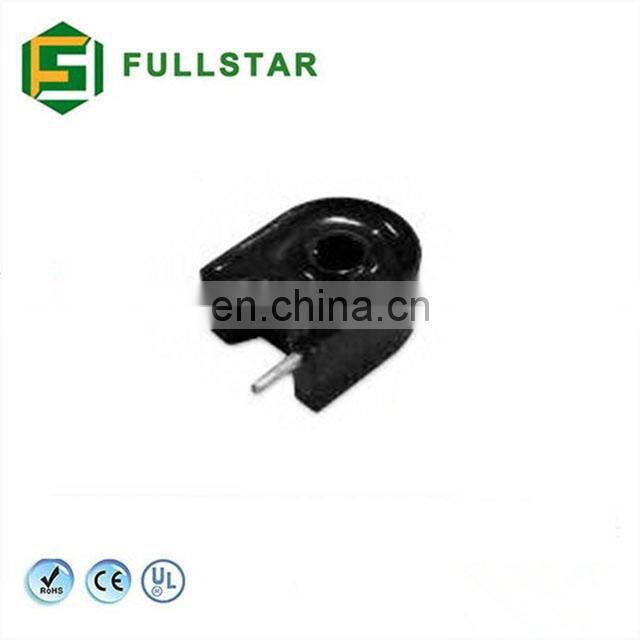

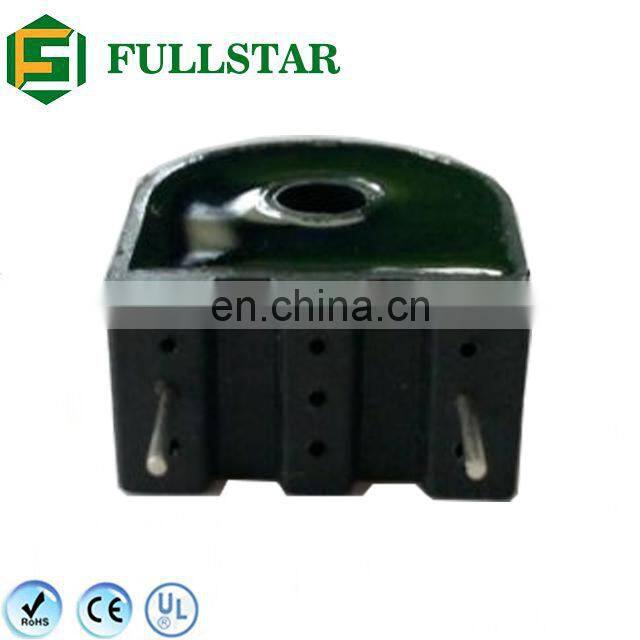

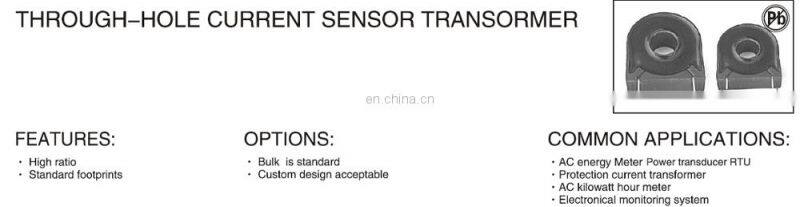

PCB micro current transformer / transducer / sensor

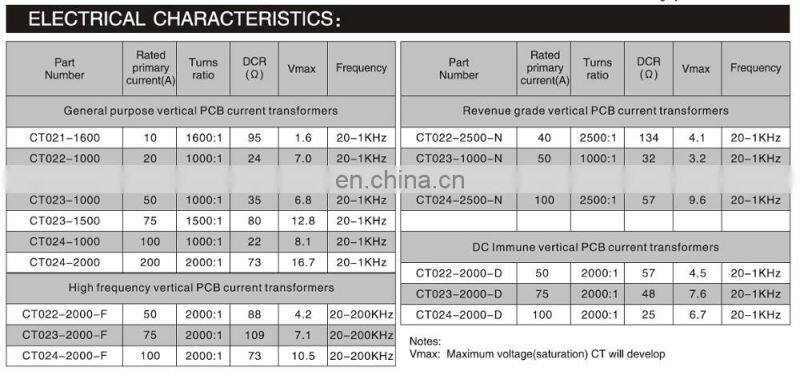

Features:
| High Precision current range up to 200A Maximum | Low flux leakage |
| Working frequency 50Hz/60Hz | Perfect EMI performance |
| Turns ratio: 1:60:, 1:100, 1:200, 1:2000, 1:2500, 1:3000 | Low profile |
| Operating temperature: -40 to 85 ℃ | High sensitivity |
| Ambient temperature:-25°C~+85°C | Low cost |
| working temperature : -55C~+85C | Input current:0-40A |
| Atmospheric pressure:860~1060mbar | Output current:0-20mA |
| Dielectric strength : 6KV / min | Frequency:20Hz-20KHz |
| Customized designs welcome |
Applications:
current control circuit and current test
Electrical monitoring system
Power energymeters
Ideal for current measurement and current relaying
Power transducer
Electrical monitor system
Power meter, all sorts of controlling devices
Earth leakage breaker,
Arc leakage brake
Equipment leakage circuit interrupter
Ground faultsbreaker
AC/DC, DC-DC converters
SHAANXI FULLSTAR ELECTRONICS CO.,LTD is specialized in electronics and magnetic components. We are professional Electronics manufacturing company with good reputation in the field. Our company keeps pace with update technologies and developing its capacity. As an ISO certified company we adhere to strict quality control system thus all products to meet RoHS Standard and industry international standards.

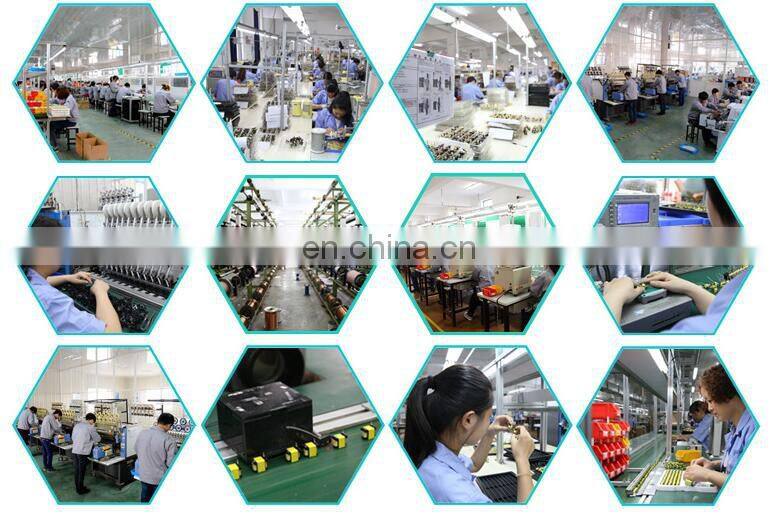

Our Factory
Our factories have 20 years' experience in electronics field and the annual volume is above 200,000,000 pieces. We have auto magnetic material examination equipment at international level and the most advanced production line in China. Mature supply chain allows us to be very cost efficient and fast in sourcing materials and components.
Warmly welcome you to visit our company and our factory!
Certificates
All products meet RoHS Standard and won ISO9001 quality certificate.
Our Team
Our operating policy is “Quality comes first, customer foremost”.
We own an outstanding sale and service team and establish a huge marketing network covering market both home and aboard.
We work hard, but we don't take ourselves too seriously. We enjoy what we do and we laugh a lot.
You will feel different to work with us.
Q: What service your company can offer?
A: Products design, development, production, test as per requirement.

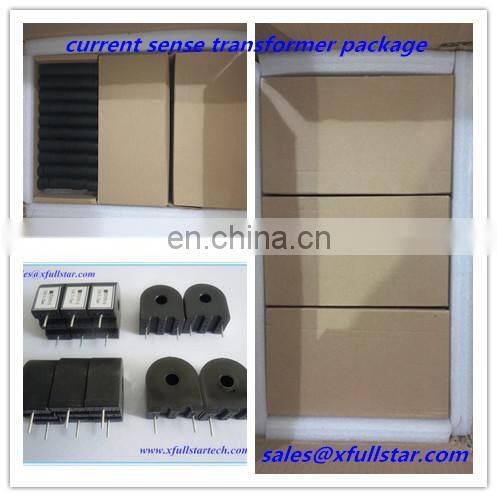

Q. What is your terms of packing?
A:Generally, we pack our current transformer in General cartons.
Q: What information you need for making transformer?
A: Supply drawing is the best, or tell us the size, standard etc.
Q:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
