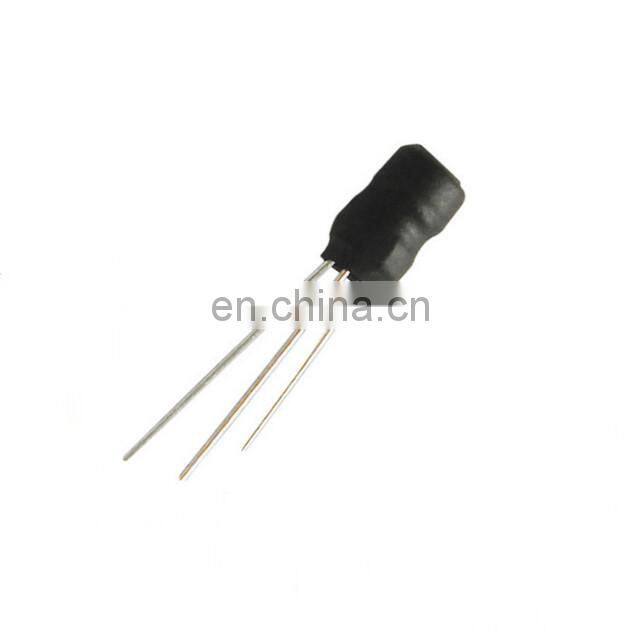

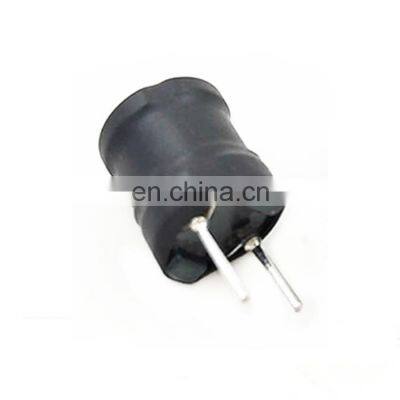

3 Pins Radial Ferrite Drum Core Inductor Buzzer Power Inductor
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2001
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Air Core Choke Coil Inductor Copper Air CoilNegotiableMOQ: 1 -
Customized Ferrite Drum Core Inductor Radial Leaded Power InductorsNegotiableMOQ: 1
-
Unshielded Inductors DR Filter Inductor Ferrite Coil Drum Core Inductor 100uHNegotiableMOQ: 1
-
Chocke Coil High-Frequency Power Inductor 68uH OEM Drum Core Ferrite InductorNegotiableMOQ: 1
-
LH0805 Ferrite Rod Core Choke Coil Inductor For Power SupplyNegotiableMOQ: 1
Product Description
Drum Core Inductor

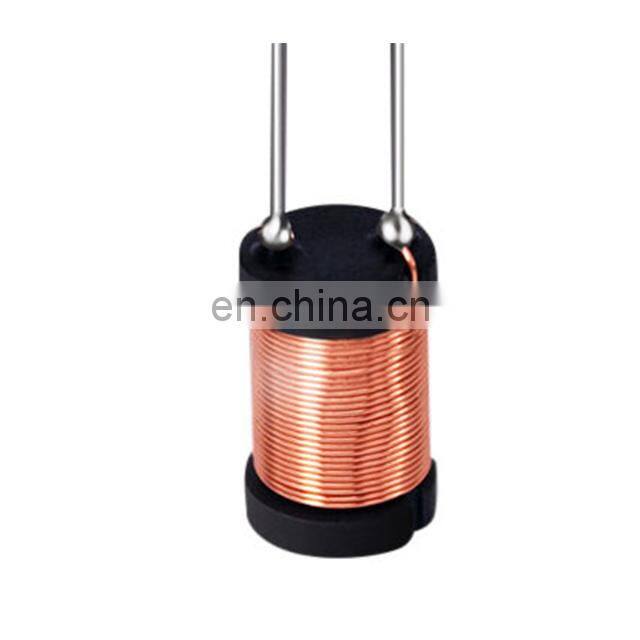

Drum core inductors are so named as the conductor (round magnet wire) is wound directly onto the ferrite core which is shaped like a drum or spool. The wire is then connected to the core, a plastic base or metal lead frame to form the surface mount termination.
Drum core inductors come in unshielded (high saturation current but potentially more EMI) and shielded constructions (lower saturation current but closed magnetic path for lower EMI). The shielded constructions use either a second ferrite core or a magnetic resin epoxy to create the magnetic shield.
Drum core inductors come in unshielded (high saturation current but potentially more EMI) and shielded constructions (lower saturation current but closed magnetic path for lower EMI). The shielded constructions use either a second ferrite core or a magnetic resin epoxy to create the magnetic shield.
Product name | Drum core inductor, through hole inductor, radial leaded inductor |
Material | Ferrite drum core, copper wire |
Dimension | Customized, 10*14mm, 11*18mm, 6*10mm |
Feature | * Printed circuit mounting (axial leads) * Protected by polyolefin sleeve * Pre-tinned leads * High saturation bobbin used, allowed high inductance with low DC resistance |
Application | * Inductance: measure at 1KHz with no DC current * Current Rating: maximum continuous operating current based on a 50 degree C temperate rise * Dielectric rating: 2500 VRMS between winding and outer circumference to within 0.25 inches of the insulation sleeve edge * Temperature rating: -55 degrees C to +105 degrees C |
Packaging And Shipping
