LRC Series Ferrite Rod Core Choke Coil Magnetic Coil Inductor

LRC Series Ferrite Rod Core Choke Coil Magnetic Coil Inductor photo-1
LRC Series Ferrite Rod Core Choke Coil Magnetic Coil Inductor photo-2
LRC Series Ferrite Rod Core Choke Coil Magnetic Coil Inductor photo-3
LRC Series Ferrite Rod Core Choke Coil Magnetic Coil Inductor photo-4

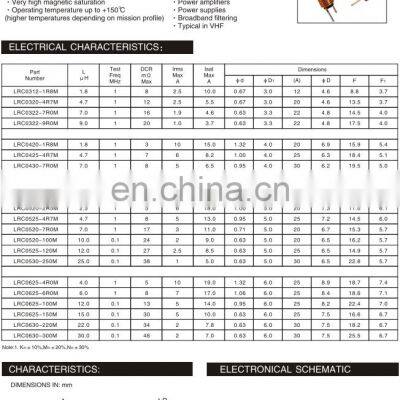

LRC Series Ferrite Rod Core Choke Coil Magnetic Coil Inductor photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2001
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description

LRC series ferrite rod core choke coil magnetic coil inductor

Rod inductors are called filter choke coils when used for rectification. They are horizontal and vertical. The rod inductor is to directly wind the ordinary enameled wire or high temperature enameled wire on the rod-shaped magnetic core, the coil body is dipped (varnished), and the pins are tinned. Adopt high-current design to adapt to high-current circuit board. It has the advantages of small size, light weight, firm structure (vibration resistance, impact resistance), good moisture resistance, easy installation, and diversified specifications. It is widely used in power supply, power amplifier, noise filter of switching circuit, control rectifier and thyristor control circuit, and R rod on output choke can alleviate current change and protect load.

Product name
LRC series ferrite rod core choke coil magnetic coil inductor
Brand name
Fullstar
Inductance
1.8μH-30μH
DCR
3mΩ-46mΩ
Irms(A)
1A-10A
Isat(A)
5A-19A
Operating temperature
+150°C
Applications
Switching regulators
Package
Bulk is standard
Shipping Term
DHL Fedex TNT EMS UPS
Product features
1.High current capability
2.Very reliable mechanical design
3.Very high magnetic saturation
4.Operating temperature up to +150°C
