Home > Products > Electrical transformer > 1.5V Transformer Ferrite Core Switching Power Transformer 115V 230V

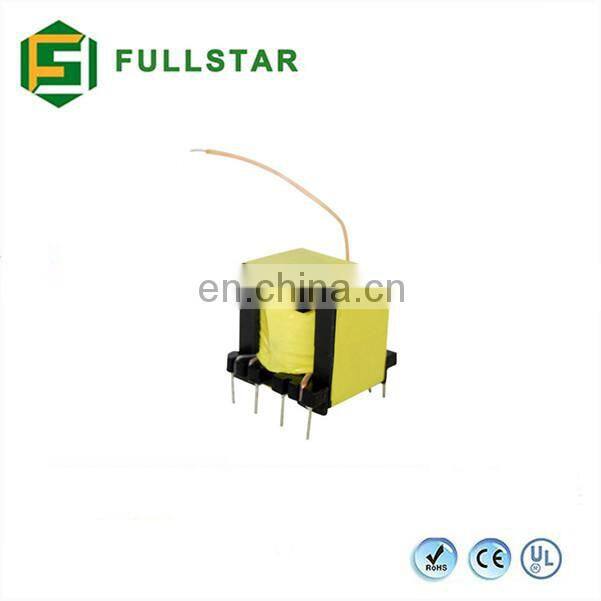

1.5V Transformer Ferrite Core Switching Power Transformer 115V 230V
- T/T Credit Card
You May Like
-
Customized High Frequency Switching Power Transformer For Welding Machine
-
150V 230V Flyback Transformer SMPS Core Type Transformer Planar Transformer
-
Customized Switching Power Transformer Flyback Ferrite Core SMPS Transformer
-
Customized Pulse Transformer High-Frequency Ferrite Core Flyback Transformer
-
Ferrite core transformer Line Balun Transformer 50Oh Characteristic Impedance
-
Zero Phase Ground Fault Current Transformer
Product Description
Electrical performance:
1. Operating frequency: 20kHz-500KHz
2. Output power: 30 to 80 W
3. Operating temperature:-40 ℃ to +125 ℃
4. Storage temperature:-25 ℃ to +85 ℃
PART NO. | PINS | Dimension in mm | ||||||||||||||
A | B | C+/-0.5 | D+/-0.5 | E+/-0.5 | F | TYPE | ||||||||||
XP-EE-8.3 | 6 | 8 | 8 | 6 | 4 | 2.5 | 8.3 | V | ||||||||
XP-EE-10 | 8 | 11.5 | 10.2 | 8 | 4 | 2.5 | 10.2 | V | ||||||||
XP-EE-13 | 10 | 12 | 12.5 | 8.5 | 4 | 2.5 | 13 | V | ||||||||
XP-EE16-1 | 6 | 14.8 | 13.3 | 9 | 4 | 3 | 16 | V | ||||||||
XP-EE16-2 | 10 | 15.4 | 13 | 10.5 | 4 | 3.2 | 17.1 | V | ||||||||
XP-EE16 | 10 | 28.5 | 16 | 12.3 | 4 | 4.3 | 21.9 | V | ||||||||
XP-EE19-1 | 8 | 17.6 | 16 | 10 | 4 | 5 | 19 | V | ||||||||
XP-EE19-2 | 10 | 17.2 | 16.2 | 13 | 4 | 3.9 | 20 | V | ||||||||
XP-EE25-1 | 6 | 20 | 18.2 | 12.5 | 4 | 6.3 | 25.2 | V | ||||||||
XP-EE25-2 | 8 | 21.7 | 17.5 | 12.6 | 4 | 5 | 25.2 | H | ||||||||
Customized designs are available. | ||||||||||||||||
ignition transformer
Lan transformer
Balun transformer
SHAANXI FULLSTAR ELECTRONICS CO.,LTD is specialized in electronics and magnetic components. We are professional Electronics manufacturing company with good reputation in the field. Our company keeps pace with update technologies and developing its capacity. As an ISO certified company we adhere to strict quality control system thus all products to meet RoHS Standard and industry international standards.
Fullstar electronics are always ready to provide customers with the best products and services. Sincerely look forward to establishing long term cooperation with you to create the brilliancy together.
1. Q: Why choose us?
A: Fullstar has been mamufacturing customized inductors for more than 24 years.
2. Q: Do you have any certificates?
A: We have CE, RoHS, CCC, CQC, ISO9001:2015 Certification.
3. Q: How about your products quality inspection?
A: We have professional QA and QC teams. 100% quality inspection is performed before shipment.
4. Q: Can you use our logo?
A: We accept OEM and ODM production.
5. Q: What's your quality guarantee?
A: We repair or replace parts within 18months if necessary.
