Customized Switching Power Transformer Flyback Ferrite Core SMPS Transformer

Customized Switching Power Transformer Flyback Ferrite Core SMPS Transformer thumbnail-1
Customized Switching Power Transformer Flyback Ferrite Core SMPS Transformer thumbnail-2
Customized Switching Power Transformer Flyback Ferrite Core SMPS Transformer thumbnail-3
Customized Switching Power Transformer Flyback Ferrite Core SMPS Transformer thumbnail-4
Customized Switching Power Transformer Flyback Ferrite Core SMPS Transformer thumbnail-5
Customized Switching Power Transformer Flyback Ferrite Core SMPS Transformer photo-1

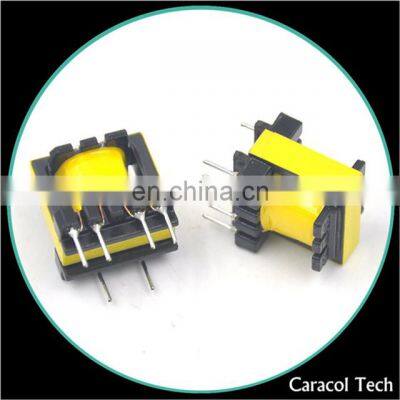

Customized Switching Power Transformer Flyback Ferrite Core SMPS Transformer photo-2
Customized Switching Power Transformer Flyback Ferrite Core SMPS Transformer photo-3
Customized Switching Power Transformer Flyback Ferrite Core SMPS Transformer photo-4
Customized Switching Power Transformer Flyback Ferrite Core SMPS Transformer photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2001
Annual Export Value:
US$2.5 Million - US$5 Million
Contact Supplier Request Quote Chat Now
Shaanxi Fullstar Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

High Frequency Transformer Flyback Transformer SMPS Core Type Transformer

Features:
1- High efficiency, high quality materials.
2- Low working temperature and long service life.
3- Good insulation and high resistance to electric power.
4- Good anti-interference performance and high reliability.
5- Low energy consumption and high dc superposition.

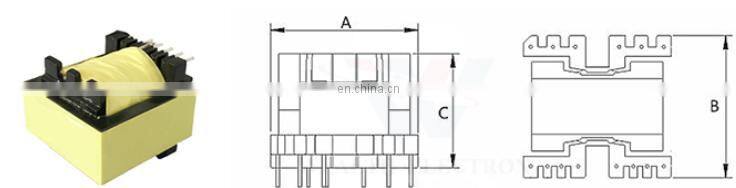

Specifications (Unit: mm):

PART NO.
PINS
Dimension in mm
A
B
C+/-0.5
D+/-0.5
E+/-0.5
F
TYPE
EE-8.3
6
8
8
6
4
2.5
8.3
V
EE-10
8
11.5
10.2
8
4
2.5
10.2
V
EE-13
10
12
12.5
8.5
4
2.5
13
V
EE16-1
6
14.8
13.3
9
4
3
16
V
EE16-2
10
15.4
13
10.5
4
3.2
17.1
V
EE16
10
28.5
16
12.3
4
4.3
21.9
V
EE19-1
8
17.6
16
10
4
5
19
V
EE19-2
10
17.2
16.2
13
4
3.9
20
V
EE20
6
17.5
16
15.5
4
5
20.5
V
EE25-1
6
20
18.2
12.5
4
6.3
25.2
V
EE25-2
8
21.7
17.5
12.6
4
5
25.2
H
EE30
10
30
18
15
4
6
20.4
H
........................................
Customized designs are available.

Electrical performance:
1. Operating frequency: 20kHz-500KHz
2. Output power: 30 to 80 W
3. Operating temperature:-40 ℃ to +125 ℃
4. Storage temperature:-25 ℃ to +85 ℃

Related Products
Our Company

SHAANXI FULLSTAR ELECTRONICS CO.,LTD is specialized in electronics and magnetic components. We are professional Electronics manufacturing company with good reputation in the field. Our company keeps pace with update technologies and developing its capacity. As an ISO certified company we adhere to strict quality control system thus all products to meet RoHS Standard and industry international standards.

Fullstar electronics are always ready to provide customers with the best products and services. Sincerely look forward to establishing long term cooperation with you to create the brilliancy together.

Our Team

We own an outstanding sale and service team and establish a huge marketing network covering market both home and aboard.

Our operating policy is "Quality comes first, customer foremost".

Engaging, learning and mastering advanced technology, Fullstar excellent team provide high quality products, quick delivery, strong technical support & best service and would help our customers achieve the maximum value.

Certifications
Our Service
Packing & Delivery
FAQ

1. Q: Why choose us?
A: Fullstar has been mamufacturing customized inductors for more than 24 years.

2. Q: Do you have any certificates?
A: We have CE, RoHS, CCC, CQC, ISO9001:2015 Certification.

3. Q: How about your products quality inspection?
A: We have professional QA and QC teams. 100% quality inspection is performed before shipment.

4. Q: Can you use our logo?
A: We accept OEM and ODM production.

5. Q: What's your quality guarantee?
A: We repair or replace parts within 18months if necessary.
