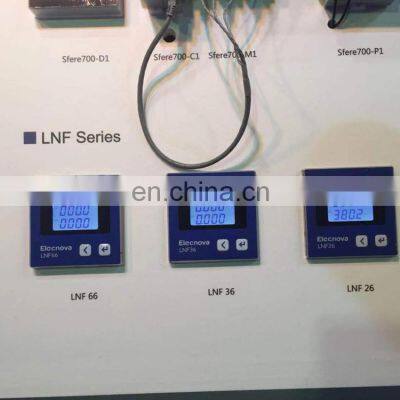

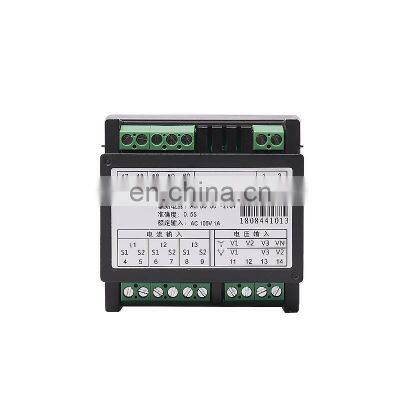

LCD Display RTM Measurement Panel Mounted 3 Phase Multifunctional Smart Energy Meter Multi-function Power Meter AC 1A/ 5A -10~55

Name: LCD Display RTM Measurement Panel Mounted 3 Phase Multifunctional Smart Energy Meter Multi-function Power Meter AC 1A/ 5A -10~55
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Product Name: LCD display RTM measurement panel mounted 3 phase multifunctional smart energy meter

This series of multi-function power meters support all-parameter measurement, bi-directional energy metering, four-quadrant reactive metering and harmonic analysis. they can be connected to power monitoring system and energy management system to realize remote data monitoring.

Technical parameters

Accuracy		voltage，current：0.2%;power:0.5%,frequency:±0.01HZ;Active energy:0.5s
Data update rate		1s
signal Input	Rated current	AC 1A,5A
		Rated voltage	AC 100V,3800V
		Overload	Continuous:2In,instantaneous:10In/5s Continuous:1.2Un,instantaneous:2Un/1min
		Energy consumption	≤0.1VA
		Fequency	45~65HZ
Communication	RS485 interface	Modbus-RTU protocol, baud rate up to 9600bps
Energy pulse		Optocoupler isolation ,pulse width 80ms±20%
Digital Input		Optocoupler isolation ,passive dry contact
Relay Output		Contact capacity AC250V 5A or DC 30V 5A
Auxiliary power supply	working range	AC/DC 80~270V
Auxiliary power supply		Energy consumption	≤5VA
Environment condition	working temperature	-10~55℃
		storage temperature	-25~70℃
		Relative humidity	≤93%RH
		Altitude	≤2500m
Safety	Insulation	Signal power supply output terminal to case resistance ≥100MΩ
Safety		Withstand voltage	power supply，input and output ≥2kv
Protection level		IP54

Application

■ Smart equipment

■Intelligent building

■Public facility

■Industrial and mining enter enterprise

■Panel Meter

Recommend Products

Company Profile

Packing & Delivery

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.

Q: Does your company provide customized manufacturing?

A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.

Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.

Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.

Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
