Din Rail Mount 3 Phase Multi Functional Equipment Metering Power Measuring Instrument
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1993
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DDSF1946-1p Din Rail Power Supply Tariff High Accuracy MID Approval 1p Energy MeterNegotiableMOQ: 1 -
PD194Z-E14C Smart Home Products Din Rail Digital Voltmeter Multicircuit Power MeterNegotiableMOQ: 1
-
PD194Z-E14D Din Rail Digital Voltmeter Lora Rtu Power Factor MeterNegotiableMOQ: 1
-
DDSF1946 3 Phase Din Rail Solar Energy Monitoring Multitariff Energy MeterNegotiableMOQ: 1
-
PD194Z-E33 Dc Voltage Meter Multi Channel Kwh Dc Meter Dcem-plus AC 250V/5A AC 100V/400V Digital Only 0.2%, 0.5% CE, ISO9001 LCDNegotiableMOQ: 1
Product Description

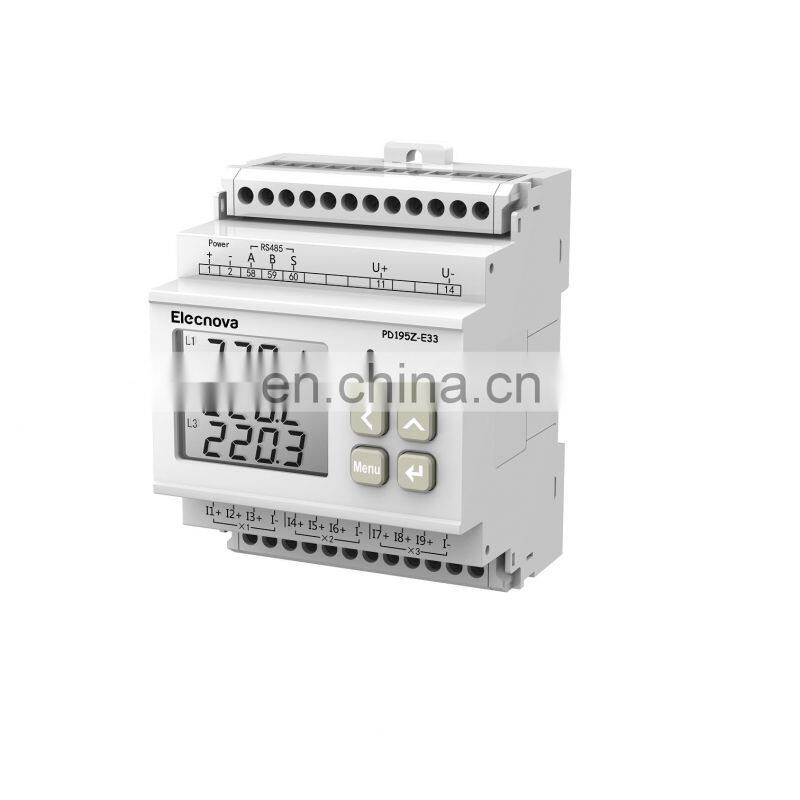

Product Name: Din rail mount 3 phase multi functional equipment metering power measuring instrument
PD194Z-E20 Multi-function power meter adopts rail mounting mode, and can be equipped with different functional modules.It is used to monitor and control DC system. They also support limit alarm, analog output, digital input, relay output and communication functions. All the measured data and status can be read through RS485 communication interface with Modbus-RTU protocol.
Technical parameters
Display mode | LCD | |
Accuracy | V/A | 0.2% |
P/Q/S/PF | 0.5% | |
F | ±0.01Hz | |
±KWh | Class 0.5s | |
±Kvarh | Class 2 | |
Voltage Input | Rated value | AC100V AC380V |
Overload | Continuous:1.2Vn Instantaneous:2Vn/10s | |
Burden | ≤0.1VA(per phase) | |
Impedance | ≥1.7MΩ | |
Frequency | 45Hz~65Hz | |
Current Input | Rated value | AC1A AC5A |
Overload | Continuous:1.2In Instantaneous:2In/5s | |
Burden | ≤0.2VA(per phase) | |
Impedance | ≤20MΩ | |
Residual Current Input | AC 1mA | |
Auxiliary Power Supply | Working Range | AC 80~270V 50/60HZ ,DC 100~350V |
Consumption | ≤5VA | |
Communication Port | RS485,Modbus-RTU ,2-wire,up to 9600bps | |
Energy Pulse Output | 1 photocoupler output,pulse width (80±20%)ms | |
Optional Module(EK1) | Digital Inputs | Dry digital inputs,Isolation:≥2kvac |
Relay outputs | Contact rated at AC 250/5A or DC 30V/5A | |
Environment Conditions | Operating temperature | -25℃~70℃ |
Storage temperature | -30℃~80℃ | |
Relative humidity | ≤93% | |
Altitude | ≤2500m | |
Insulation | ≥2kvac |
Model Selection
Recommend Products
Application
■Data Acquisition
■Remote Power Monitoring
■Rail mounting instrument
■Energy efficiency management
■Remote monitoring of electrical equipment
