Home > Electrical & Electronics > Sensor > Pressure Sensor > Gas Sensor Detector 02-A2 O2-A2 Oxygen Sensor

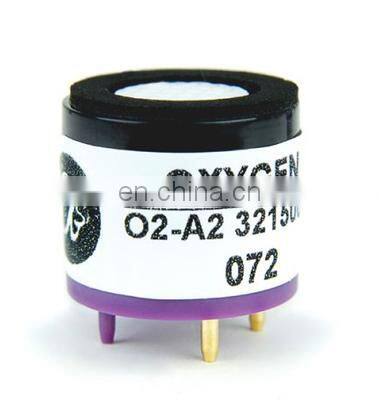

Gas Sensor Detector 02-A2 O2-A2 Oxygen Sensor
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2009
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
E3F-DS30C4 Proximity Switch DC 9-36V 3 Wire NPN IR Photoelectric Sensor Diffuse Photoelectric Switch 30cm, Photo SensorNegotiableMOQ: 1 -
Sensitive Auto Photo Switch On Off Photocell Street Light Switch DC AC 220V 10A Electronic Photoswitch Sensor SwitchNegotiableMOQ: 1
-
E3JK-R4M1 AC90-250V Square Lens Reflex Photoelectric Switch Five Lines Light Barrier Photoelectric Sensor, Photo SensorNegotiableMOQ: 1
-
TL-W5MC1 5mm 3 Wire Inductive Proximity Sensor Detection Switch NPN DC 6-36V, Square Proximity SwitchNegotiableMOQ: 1
-
M30 Capacitive Proximity Switch 2 Wire Detect Distance 15mm Capacitive Sensor 90-250VAC Sales PromotionNegotiableMOQ: 1
Product Description
1.) parameter
| NAME | O2-a2 Oxygen Sensor |
Description:
British Alphasense company is specialized in producing gas sensors manufacturers, its oxygen sensors widely used in coal mines, steel, petroleum, chemical, medical and other large use.
Oxygen sensor (O2-A2) main characteristics:
Oxygen sensor measurement range (%): 0-30
Operating life: > 24 the number of months at which the initial signal's 85%
Size (mm): Φ 20 * 16.8mm
Output: 80-120 A @ 22 centigrade, 20.9% O2
Response time T90 (seconds): < 10, from 20.9% to 0 (load 47Ω)
Linearity (PPM): <0.6 linearity error at full range (zero point, 400ppm)
Weight: < 16g
Temperature range: -20 - 50
Pressure range: 80 - 120Kpa
Humidity range: 5 - 95%RH
Storage time: 6 months (storage temperature 3-20 centigrade)Load resistance: 47-100 Ω
Typical applications of oxygen sensors (O2-A2):
Oxygen alarm, atmosphere analyzer

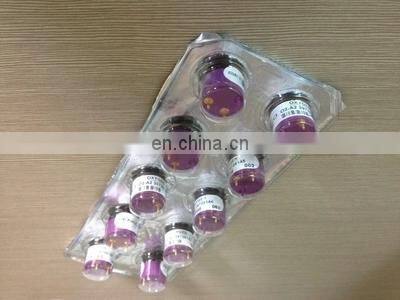

2.)product display
