Specifications:


• D52-2047 DIN-rail multi-function Digital meter can measure AC voltage, AC current, power factor, active power, electric energy and electric energy of cumulative time.

1. Accuracy:

   1%±2 words

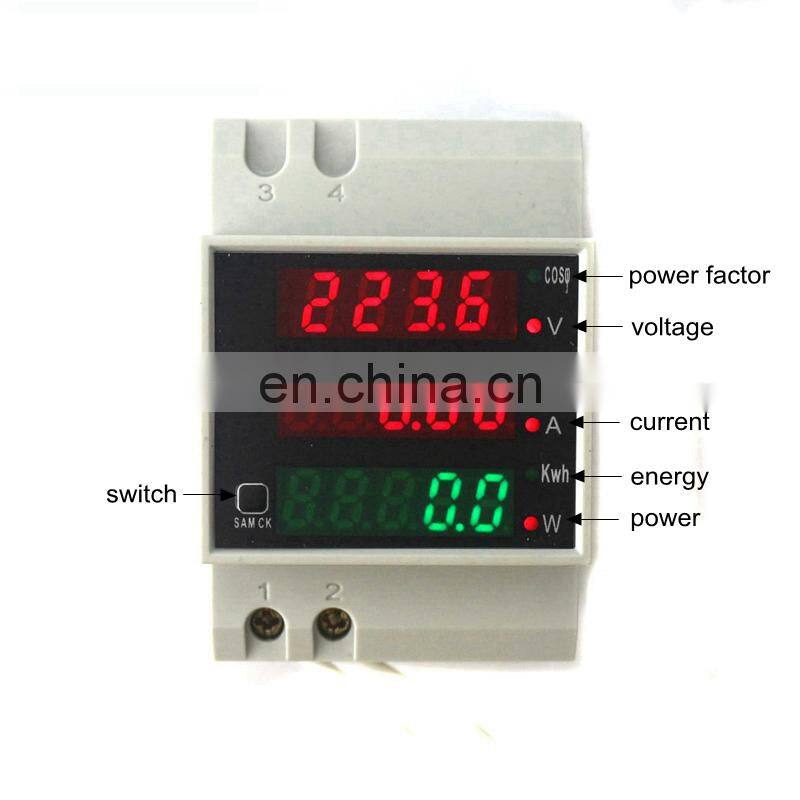

2. Display Mode:

   AC voltage and power factor use four red led of 0.31-inch

   AC current and electric energy of cumulative time use five red led of 0.31-inch

   Active power, electric energy use five green led of 0.31-inch

3. Range:

   AC voltage : AC 80.0-300.0V / AC 200-450V

   AC Current : AC 0.0-100.0A  Accuracy : 0.01A

   AC 80.0-300.0V Active power: 0.0-30000W,  AC 200-450V Active power: 0.0-45000W

   Electric energy: 0.000-99999kwh

   Electric energy of cumulative time: 0.00 - 999.59h

   Power factor: 1.000-0.000

4. Speed: 2 times per second

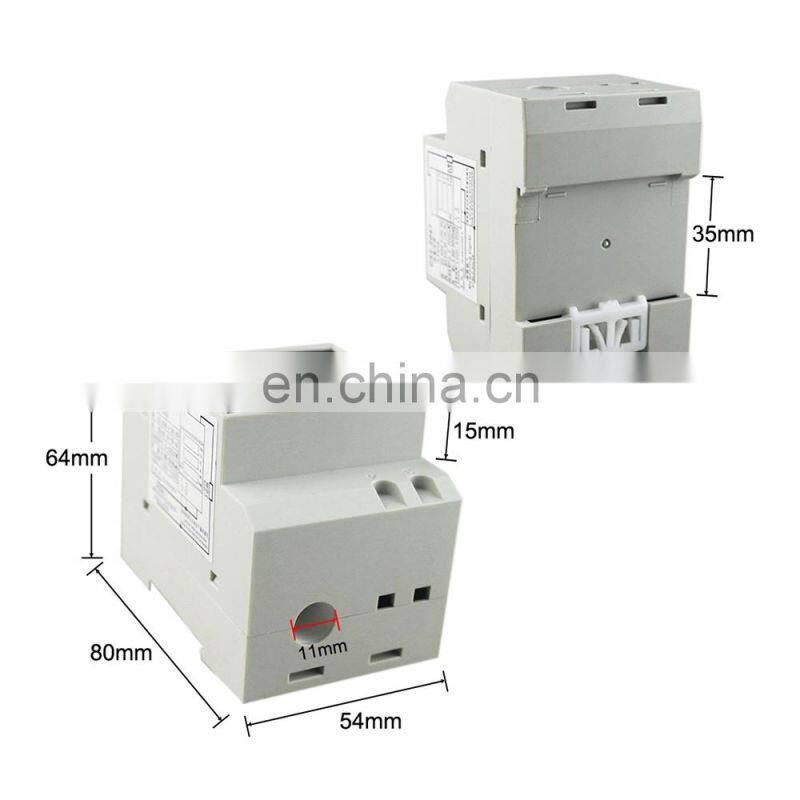

5. Size: 54*80*64mm

6. Installation: Din-Rail

7.  Phase: Single Phase (AC 80-300V) / Three Phase (AC 200-450V)
