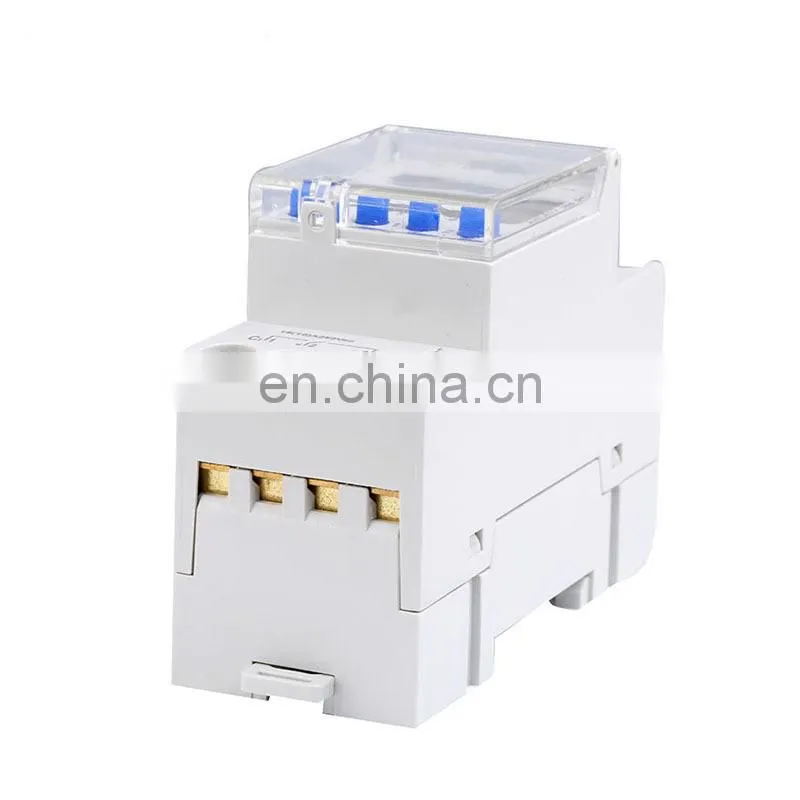

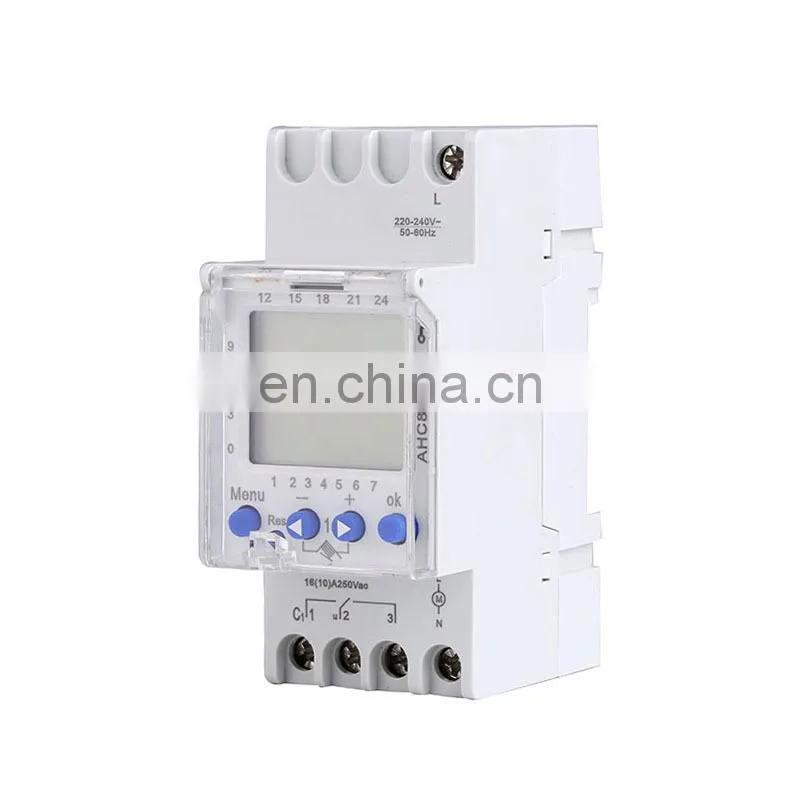

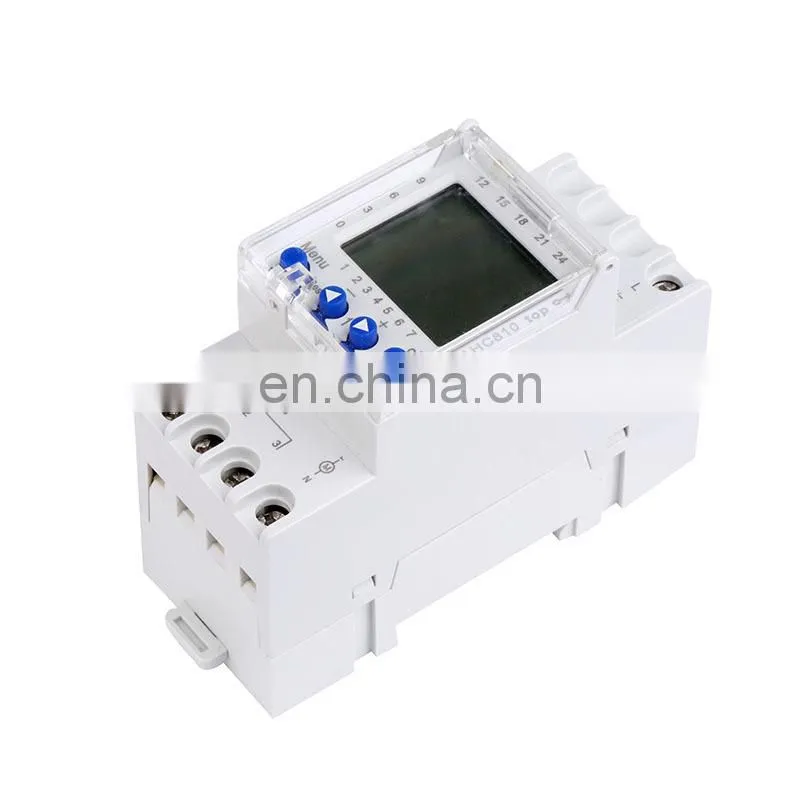

AHC810 Multi-channel Programmable Digital Mini Electronic Countdown Timer Switch, Digital Din Rail Timer Programmable Timer
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2009
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SUL180a 15 Minutes Mechanical Timer 24 Hours Programmable Din Rail Timer Time Switch Relay Measurement Analysis InstrumentsNegotiableMOQ: 1 -
NKG-5 NKG5 Dual Channels Output Digital Microcomputer Time Switch Relay Timer Street Lamp Controller Month Year Cycle DelayNegotiableMOQ: 1
-
HB72 ZN72 Dual Digital Display Measuring Counter Tachometer Electronic Meter Counter 72 * 72NegotiableMOQ: 1
-
L701 12V/110V/220V LCD Digital Programmable Control Power Timer Switch Time RelayNegotiableMOQ: 1
-
Digital Programmable Timer Switch 220V 230V 50HZ 60HZ 7 Days Weekly Programmable LCD Display Power Timer Time Switch Relay 10ANegotiableMOQ: 1
parameters
| NAME | Din Rail Timer |
- This products is the introduction of a new design concept, the use of the latest international hardware and software technology, the dialogue is simple and easy to understand the operation, let the user in accordance with the instructions in the display, step by step to complete all settings.
- super LCD display, can directly display the year, month, day, week, time, 24 hours a day or a week, ON/OFF arbitrary settings, LCD display part without additional power supply.
- simple four key operation, in order to dialogue instructions to users to enter the required settings, without repeated reading complex procedures, instructions, as long as the operation once, you can master.
- The manual ON/OFF is the output state (a), ON/OFF (permanent) permanent function, let users in special and temporary need to change the output state, can not need to change the set procedures, ON/OFF output state is changed easily.
- 44 procedures can be set up at least 24 hours or a week with a minimum set time of 1 minutes.
- The AHC811 top control contact is a set of (1C) contacts with a capacity of AC250V 16 (10) A.
- In the case of no external power supply, the lithium battery in the timer can also maintain the timer for about four years, and the contact state can not be changed, but the control program is switched normally.
- The memory has six national languages (English, French, German, Italian, western, Portuguese) and can choose and change language by itself.
- the main technical parameters:
- Power: AC220V+10% ~ -15% 50/60Hz AC110V10% 50/60Hz
- Other voltage specifications can be customized
- max 7.5va
- Contact capacity: 16A, AC250V, cos=1 10A AC250V cos=0.6
- The control way: AHC810 Top Road
- Timing benchmark: high quality quartz shock timing
- Timing accuracy: at normal temperature (20 degrees Celsius), the time difference is 1 second
- maximum setting procedure: 44 channels
- Minimum setting time: 1 minutes
- Monitor: LCD display.
- Operating buttons: four operation buttons plus a reset button
- Storage power: in the normal temperature (20 degrees Celsius), the lithium battery can supply power for about 4 years
- Use ambient temperature: -10 DEG C to +50 centigrade
- Storage environment temperature: -20 DEG C to +65 centigrade;
