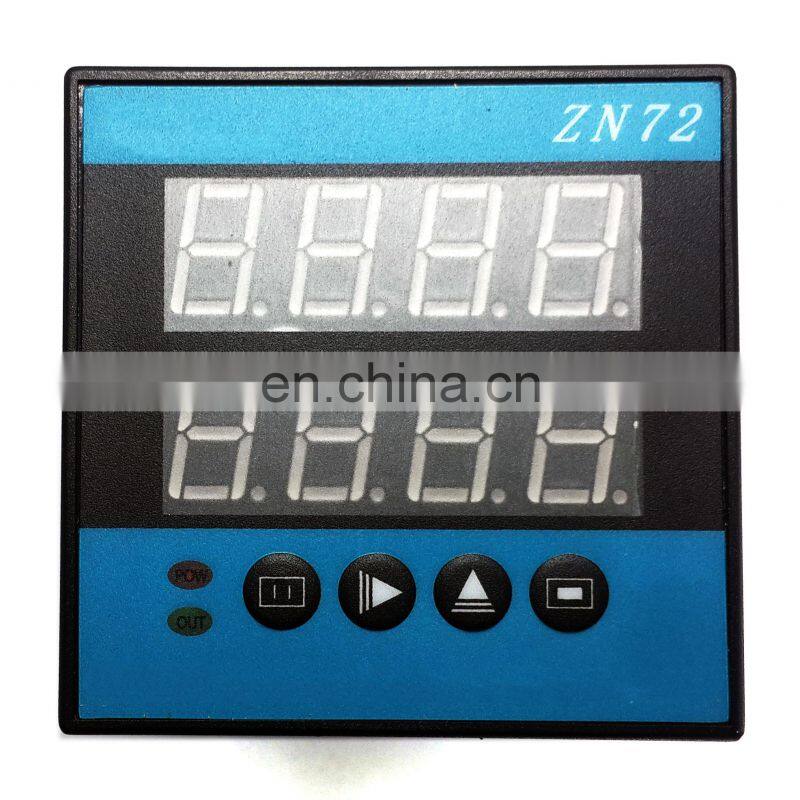

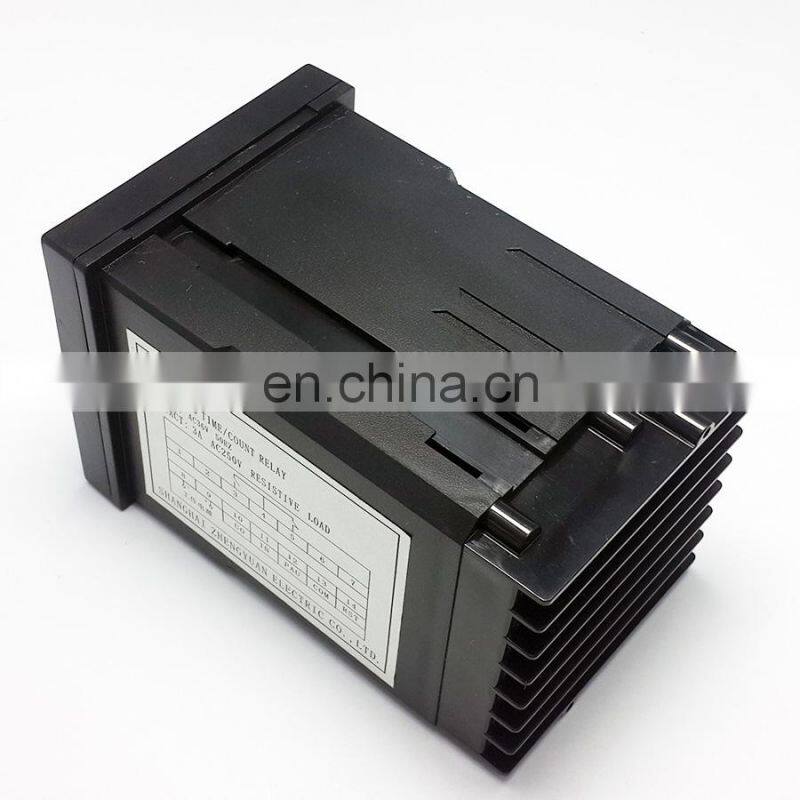

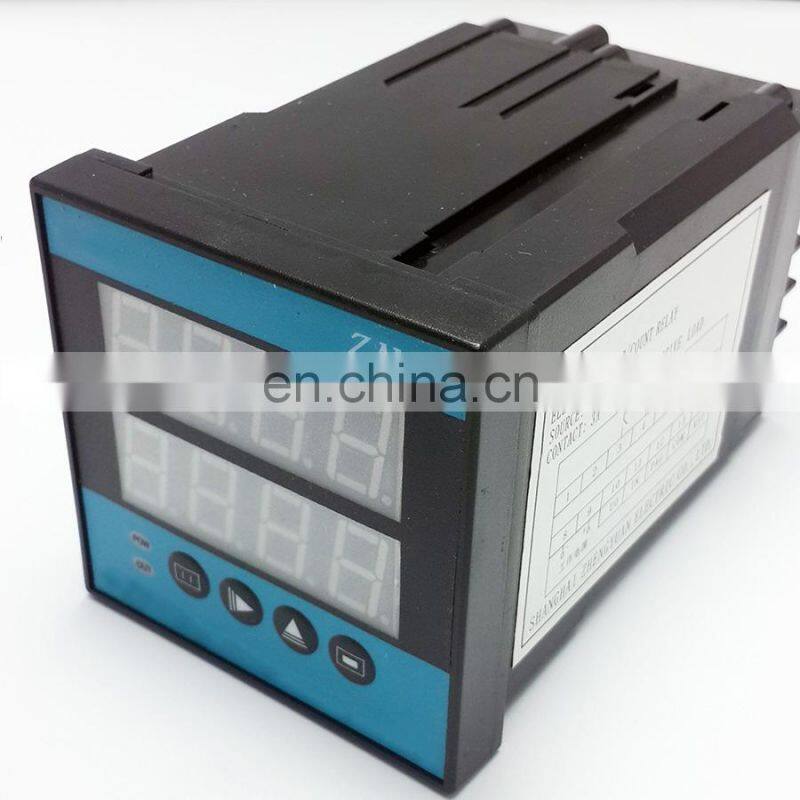

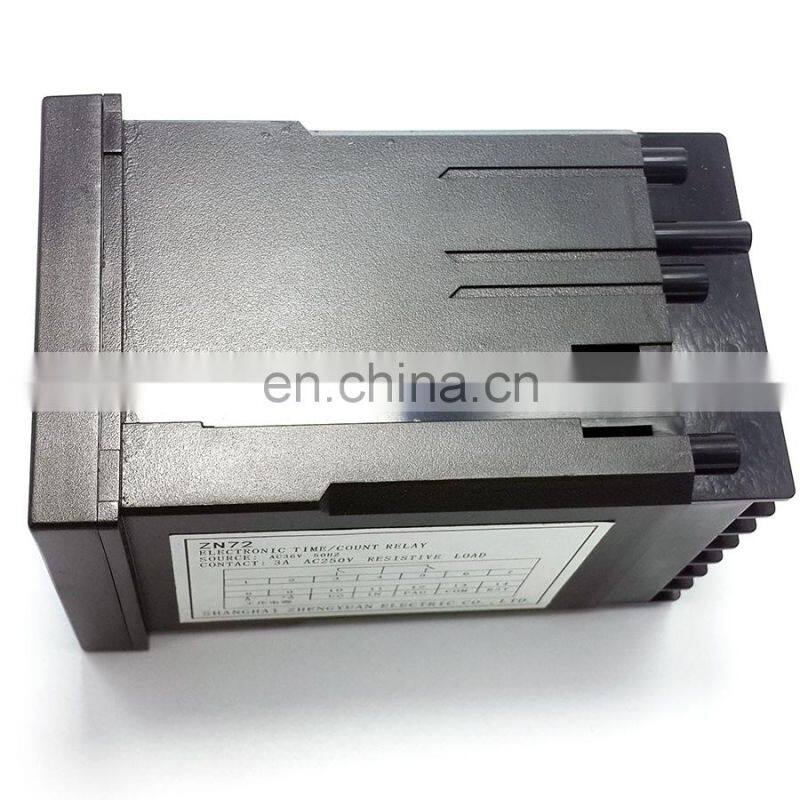

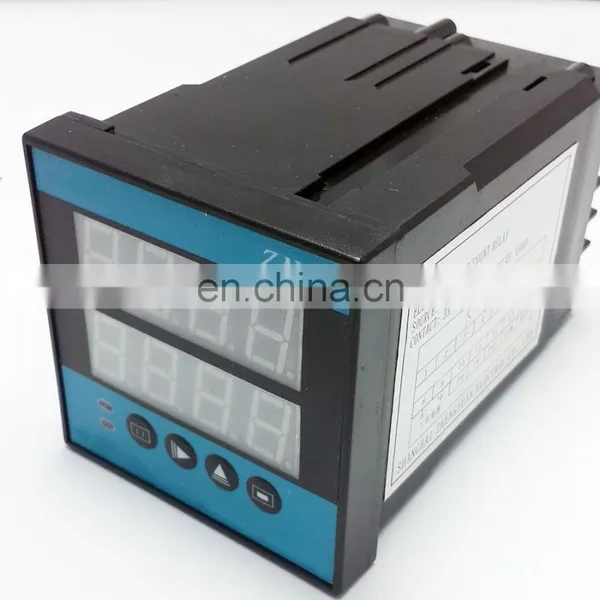

HB72 ZN72 Dual Digital Display Measuring Counter Tachometer Electronic Meter Counter 72 * 72

HB72 intelligent dual sensor ZN72

First, the use of HB72 products:
Counter, meter, timer, time controller, frequency meter for (Mai Chongji), tachometer / speed meter.
Two, HB72 product features
HB72 by setting the product function number, can realize the time delay, tired, frequency, speed, count a total of 32 functions
HB72 - six relay working mode, fully meet the needs of field control
The HB72 pulse signal, switch, mechanical contact signal input compatible
The HB72 can be connected with a proximity switch, photoelectric switch, rotary encoder, sensor
HB72 - set value, current value, a current count value is retained
HB72 product delivery: HB72 generally spot

Three, HB72 characteristic index
HB72 display: four double display - HB72 trigger mode: NPN, PNP can be set

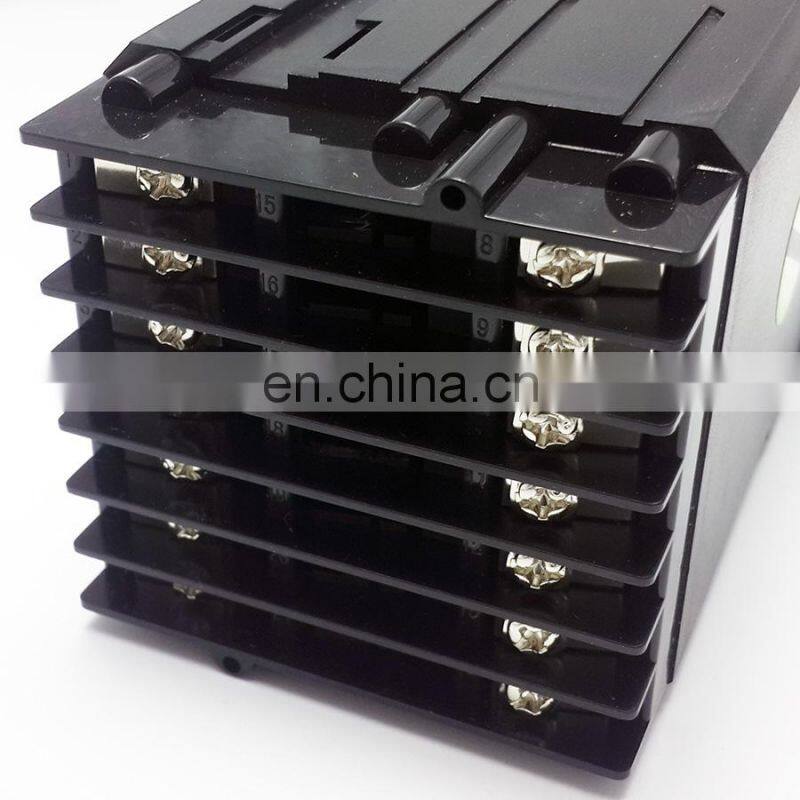

HB72 contact capacity: AC220V/3A; DC24V/5A - HB72 operating temperature: 0-50 degrees
HB72 power supply: AC/DC24 - 260V - HB72 relative humidity: 20-85%RH
Frequency response: 10KHz - HB72 - HB72 stock temperature: -10 to 70 DEG C

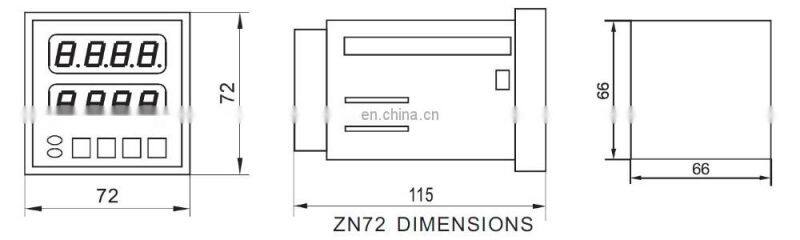

HB72 contact life: 100 thousand dimensions: 72*72*112mm - HB72
HB72 digital size: 0.56 inch HB72 - hole size: 67*67mm
Three. HB72 relay working mode
1 HB72 power meter, reaches or exceeds the set value relay
2 HB72 power meter doesn't work (by reset or reset terminal makes the instrument work), meet or exceed the set value of relay
3 HB72 power meter work to achieve or exceed the set value when the relay is released
4 HB72 power meter does not work (can be reset or reset the terminal to make the instrument work), to reach or exceed the set value of the relay release
5 HB72 power meter, reaches or exceeds the set value to reset relay, time setting, automatic instrument reset, start work again
6 HB72 power meter doesn't work (by reset or reset terminal makes the instrument work), meet or exceed the set value to reset relay, time setting, automatic instrument reset, start work again

Four, HB72 product function number, description, scope of work
Function number function
01 single delay time (positive) 0.01S - 99.99S
02 single delay (inverted) 0.01S - 99.99S
03 single delay time (positive) 1M - 9999M
04 single delay (inverted) 1M - 9999M
05 single delay (positive) 1S - 9999S
06 single delay (inverted) 1S - 9999S
07 single delay time (positive) 1S - 99M59S
08 single delay (inverted) 1S - 99M59S
09 single delay time (positive) 1M - 99H59M
10 single delay (inverted) 1M - 99H59M
11 double delay (positive) 1M - 99H59M
12 double delay (inverted) 1M - 99H59M
13 double delay (positive) 1S - 99M59S
14 double delay (inverted) 1S - 99M59S
15 double delay (positive) 1S - 9999S
16 double delay (inverted) 1S - 9999S
17 double delay (positive) 1M - 9999M
18 double delay (inverted) 1M - 9999M
The 19 hour (immediately reset) 0 - 99H59M59.99S
The 20 hour (8 seconds reset) 0 - 99H59M59.99S
The 21 hour (immediately reset) 0 - 9999H59M59S
The 22 hour (8 seconds reset) 0 - 9999H59M59S
The 23 hour (immediately reset) 0 - 9999D23H59M
The 24 hour (8 seconds reset) 0 - 9999D23H59M
25 frequency 1HZ----9999HZ
26 frequency 1.0HZ----999.9HZ
27 rpm 60----9999RPM
28 frequency / speed (general) 1 - 9999
29 reversible counting 1 - 9999
30 reversible counting 1 - 9999
31 reversible counting 0 - 99999999
32 reversible counting 0 - 99999999
