Home > Instruments & Meters > Meter for Liquid & Gas > Thermometer & Hygrometer > W1209 DC 12V Heat Cool Temp Thermostat Temperature Control Switch Temperature Controller Thermometer Thermo Controller
W1209 DC 12V Heat Cool Temp Thermostat Temperature Control Switch Temperature Controller Thermometer Thermo Controller
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2009
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
W1401 DC12V Digital Display Thermostat Intelligent Temperature Controller Module Thermometer Control With NTC Sensor Led 33% offNegotiableMOQ: 1 -
XH-W1308 W1308 Adjustable Digital Cool Heat Sensor Red/Blue Display Temperature Controller Thermostat Switch DC 12V/24V/220VNegotiableMOQ: 1
-
K Type TM902C Digital Thermometer Tester Temperature Meter Thermocouple Needle Probe -50C To1300C For Lab Factory 33%OffNegotiableMOQ: 1
-
XH-B302 12V Electronic Digital Thermometer Embedded Temperature Digital Display High Precision, Temperature Meter Gauge MonitorNegotiableMOQ: 1
-
W3230 DC 12V 24V 110V-220V AC Digital Temperature Controller LED Display Thermostat With Heating Cooling Control InstrumentNegotiableMOQ: 1
Parameters
| Specifications Model | W1209 |

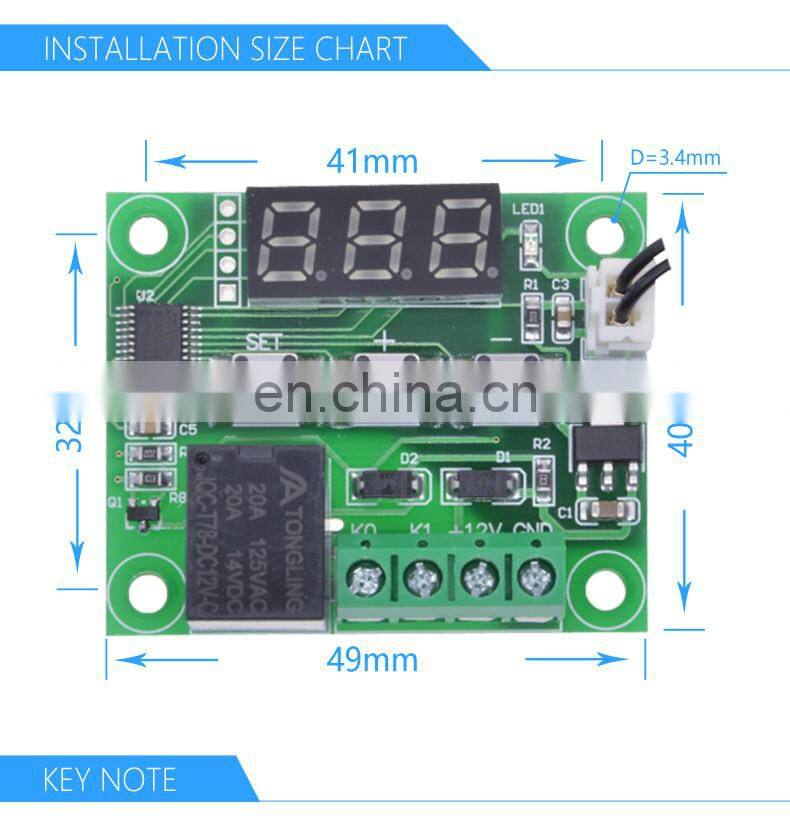

| Dimensions | 48 * 40mm |
| Temperature control mode | ON / OFF |
| Temperature range | -50-110 |
| Control accuracy | 0.1 |
| Hysteresis accuracy | 0.1 |
| Refresh rate | 0.5S |
| Supply voltage | for DC 12V |
| Static current | ≤ 35MA, attract current ≤ 65MA |
| Output power | 10A relay |
| Environmental requirements | -10 ~ 60 Humidity 20% -85% |
ResolutionWhen temperature is 0.1 the resolution is -9.9~99.9, other temperature segment is 1
High temperature protection 0-110

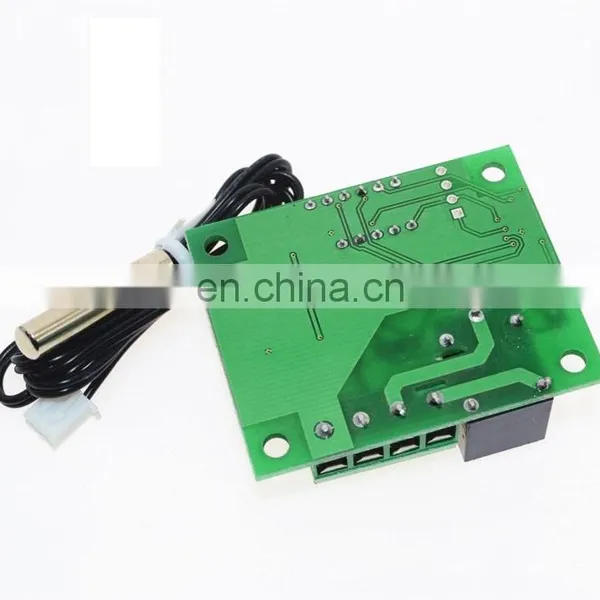

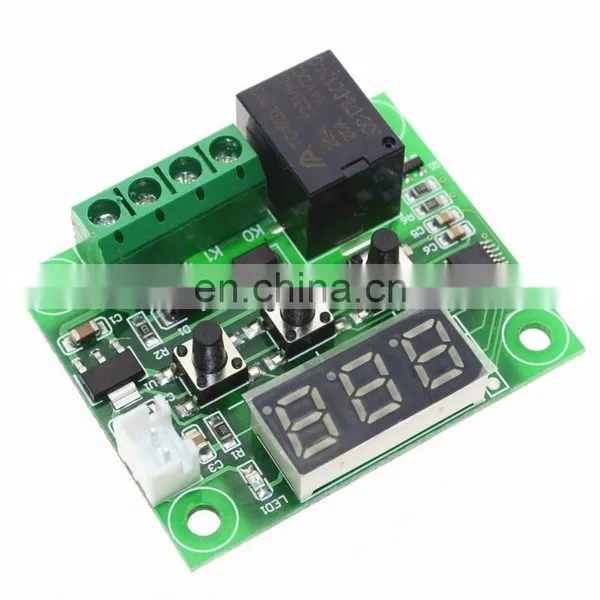

Product display
