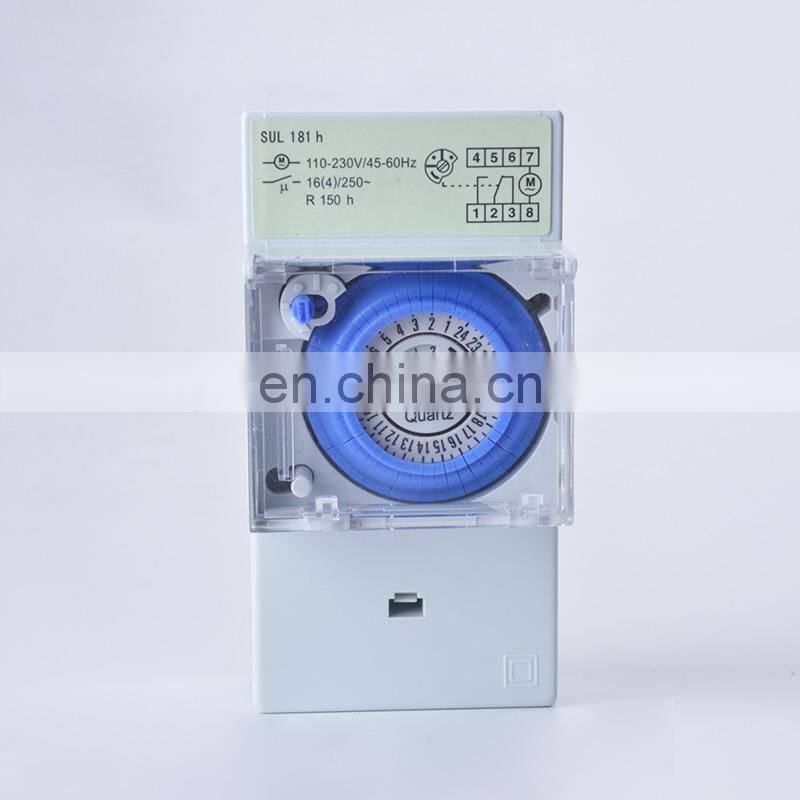

SUL181H Mechanical Timer 24 Hours Time Switch Relay Electrical Din Rail Timer Switch, Time Delay Relay
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2009
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AF-2009d Digital LCD Automatic Aquarium Tank Fish Feeder Food Timer With Retail Package LCD Screen Adjustable Food FeedingNegotiableMOQ: 1 -
DS18B20 Stainless Steel Package 1 Meters Waterproof DS18b20 Temperature Probe Temperature Sensor 18B20 Thermocouple ProtectionNegotiableMOQ: 1
-
2m NTC 10K M8 Thermistor Temperature Sensor Thread Probe Cable Waterproof for TEMP Controller With 1m/2m/3m LengthNegotiableMOQ: 1
-
TA-288 Oven Probe Cooking Thermometer Digital LCD Food BBQ Meat Chocolate Kitchen ThermometerNegotiableMOQ: 1
-
W3230 AC 110V-220V DC 12V Digital Thermostat Temperature Controller Regulator Heating Cooling Control Instruments LED DisplayNegotiableMOQ: 1
1.Product attributes
| Item No. | SUL181h |
| Operating Voltage | AC 110V/220/240V 50-60Hz |
| Power Consumption | 2.5VA |
| Contace Capasity | AC 220V 16A |
| Contact Resistance | ≤50MΩ |
| Inaulation Resistance | ≥100MΩ |
| Operating Temperature | -10℃~+55℃ |
| Accuracy | ≤2S/day 25℃ |
| Contact Capacity |
Lamp Load:1000W Resistive Load:16A/250VAC(cosΦ=1) Inductive Load:3A/250VAC(cosΦ=0.6) |
| Working Reserve Time | 150 hours after recharging 24 hours |
| Full Timing Range | 24h |
| Stonage Battery | 150h |
| Minimum Setting Unit | 30 Minuters |
| Setup Times | 30 Minuters/time 48 Time |
| Dimension | 90*54*65mm |
| Weight | 152g |
| Installing Mode | DIN rail mounting |

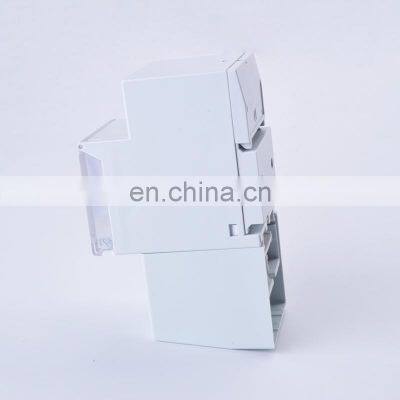

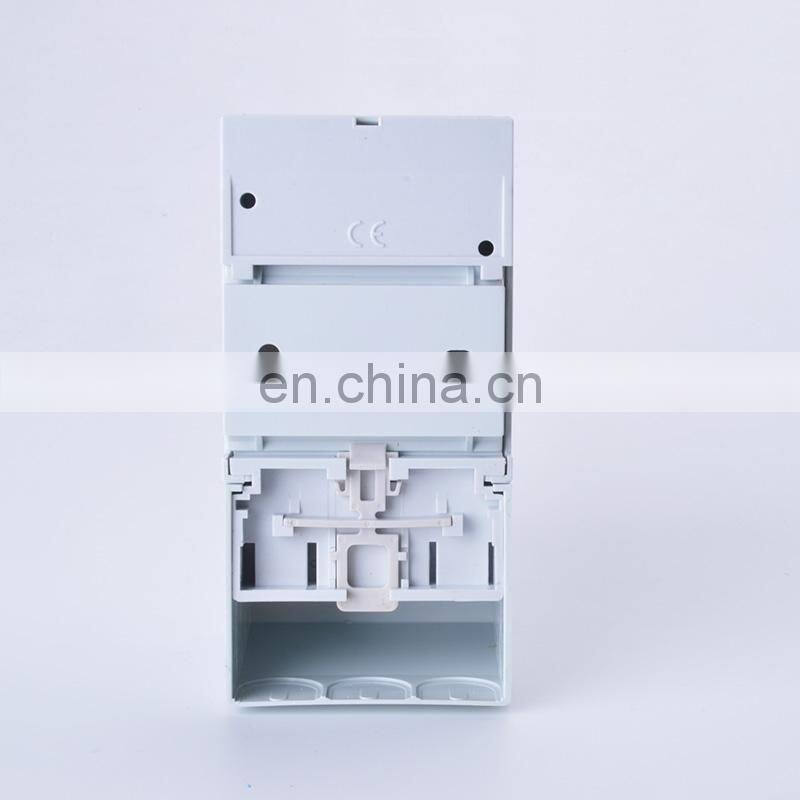

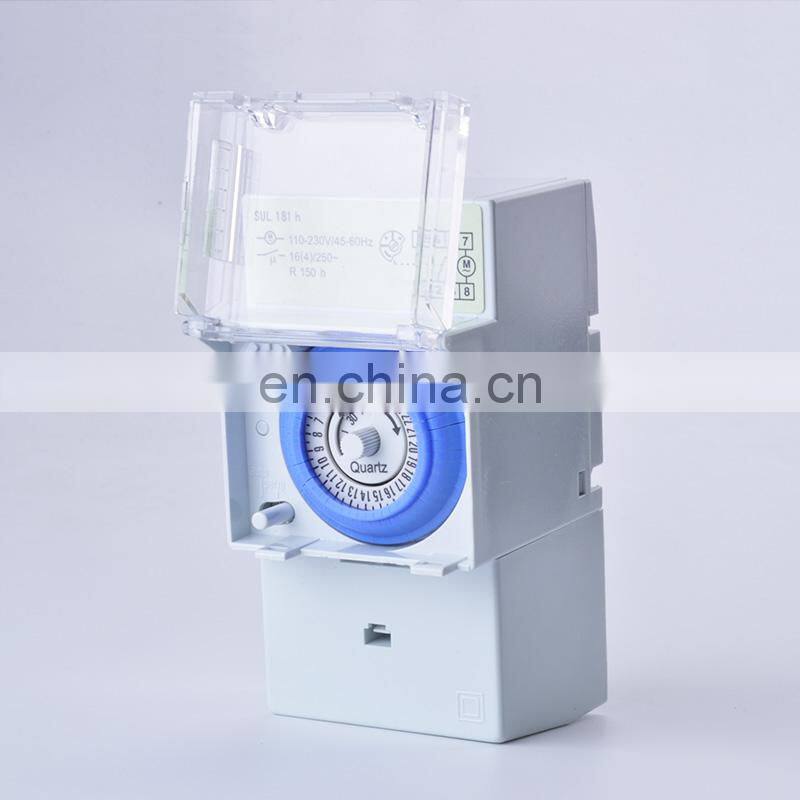

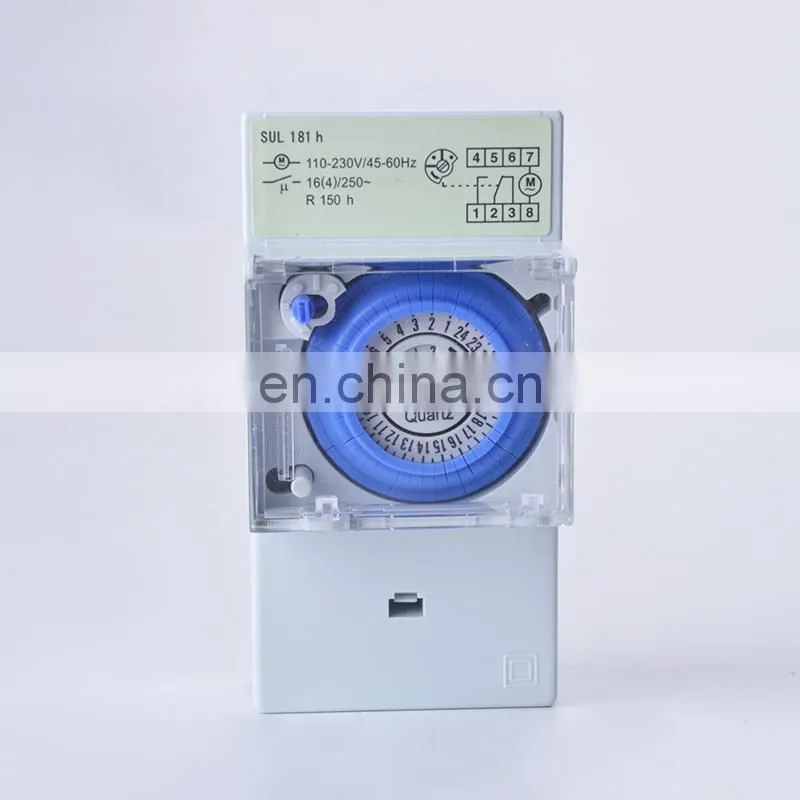

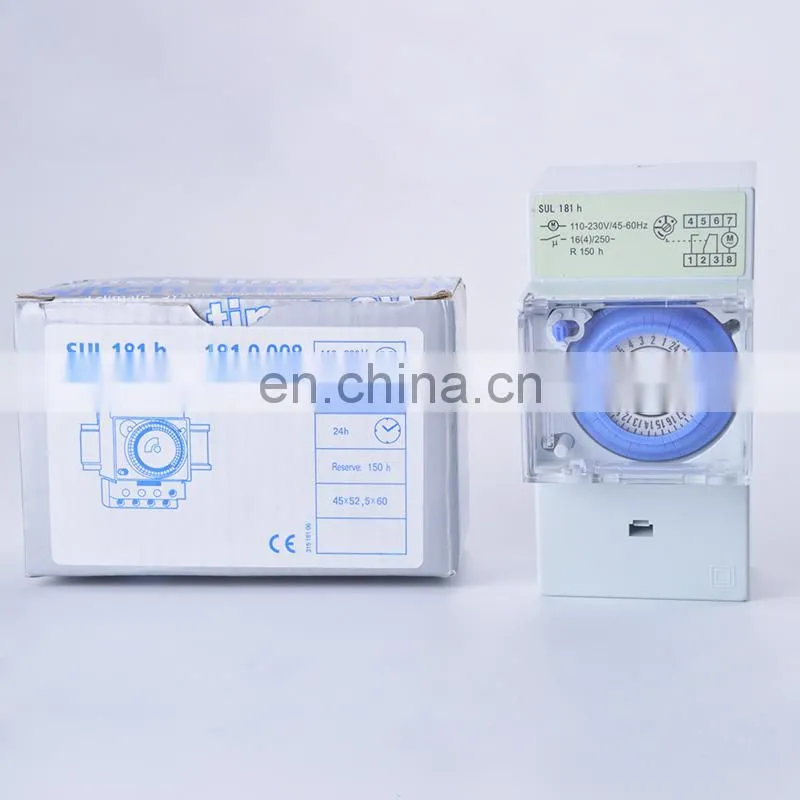

2.)product display
