Home > Instruments & Meters > Meter for Liquid & Gas > Thermometer & Hygrometer > W3230 AC 110V-220V DC 12V Digital Thermostat Temperature Controller Regulator Heating Cooling Control Instruments LED Display
W3230 AC 110V-220V DC 12V Digital Thermostat Temperature Controller Regulator Heating Cooling Control Instruments LED Display
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2009
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PT100 Probe Thermocouple 3 Wire M8 Thread, Temperature Sensor 0 - 400C Thermal Resistance 1MNegotiableMOQ: 1 -
Digital Humidity Controller EU Plug Humidity Sensor W2008 Intelligent Digital Thermostat 220V 12V 24VNegotiableMOQ: 1
-
K Type Industrial Digital Probe Thermometer TM-902C, Industrial LCD Digital Thermometer Thermo DetectorNegotiableMOQ: 1
-
Oven Temperature Controller 96*96 Temperature Regulator, Thermostat Dial Adjustment Temperature Controller 110V 220VNegotiableMOQ: 1
-
XMTG 72*72 mm Electric Heating Temperature Control Thermostat 220v, XMTG-1001Thermostat Temperature Controller 0-400CNegotiableMOQ: 1
Parameters
Description:
- Mini temperature controller.
- With clear LED display for better readability.
- Wide temperature measuring range.
- Heating or cooling control.
- All parameters setting can be saved after short circuit.
- Relay output.
- High Control precision 0.1 centigrade
- Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, steamer, industrial equipment and other temperature-controlled system.
Specifications:
- Power Supply:12VDC/110V-220VAC
- Temperature Control Range:-55℃-120℃
- Resolution Ratio: 0.1°C(-9.9-99.9); 1°C(other range)
- Color of Displaying: red/blue
- Measurement accuracy: ±0.1°C
- Control accuracy: 0.1°C
- Sensor: NTC10K Waterproof sensor
- Output: Relay Contact Capacity 10A 220V / 20A 12V
- Environmental requirements: -10-60°C , humidity 20%-85%RH

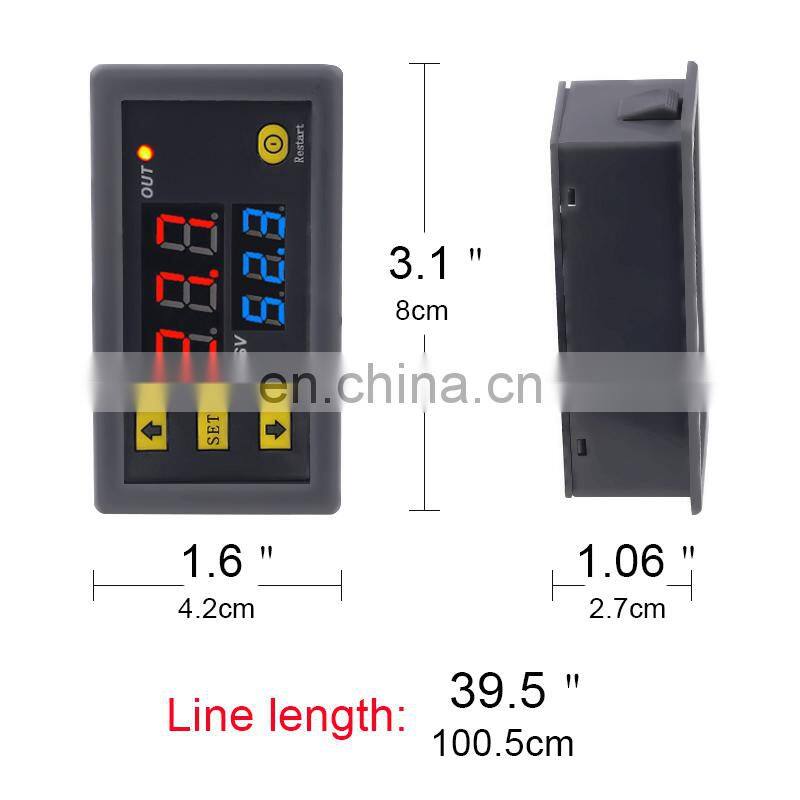

- Dimension:79mm *43mm*26mm
- Cutting Size:73mm*39mm
Code table:
Code |
Function |
Set Range |
Default |
P0 |
Heating/Cooling |
H/C |
C |
P1 |
Return Difference |
0.1-30 |
2 |
P2 |
Setting limits to the manimum |
120 |
120 |
P3 |
Setting limits to the minimum |
-55 |
-55 |
P4 |
Temp. Correction |
-20 |
0 |
P5 |
Delay Start |
0-10min |
0 |
P6 |
Alarm Temp |
-175 |
OFF |
P7 |
Data locked |
ON/OFF |
OFF |
P8 |
Restore factory settings |
ON/OFF |
OFF |

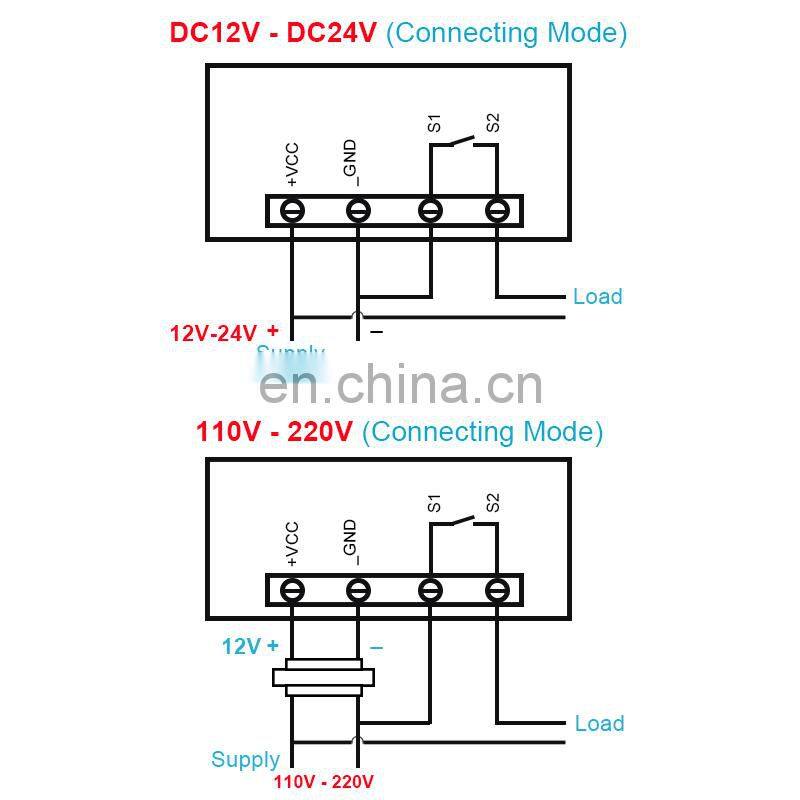

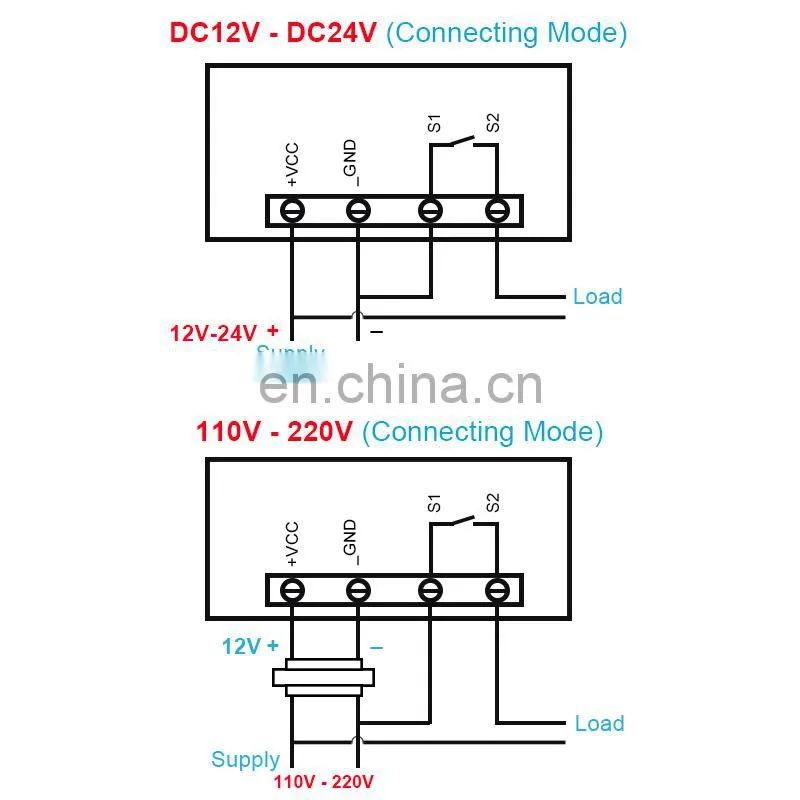

Wiring Diagram:
Product display
