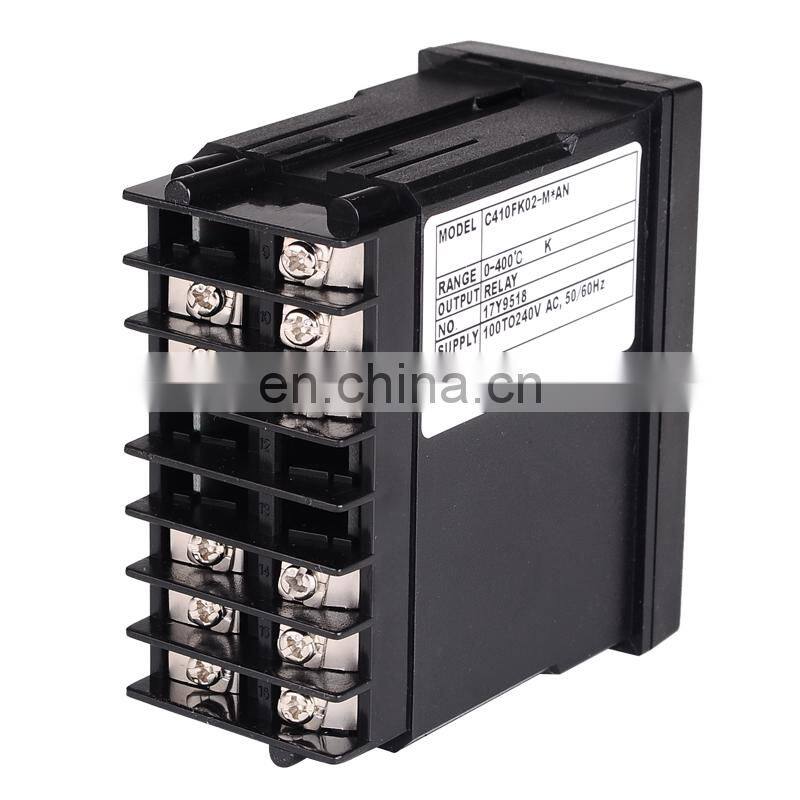

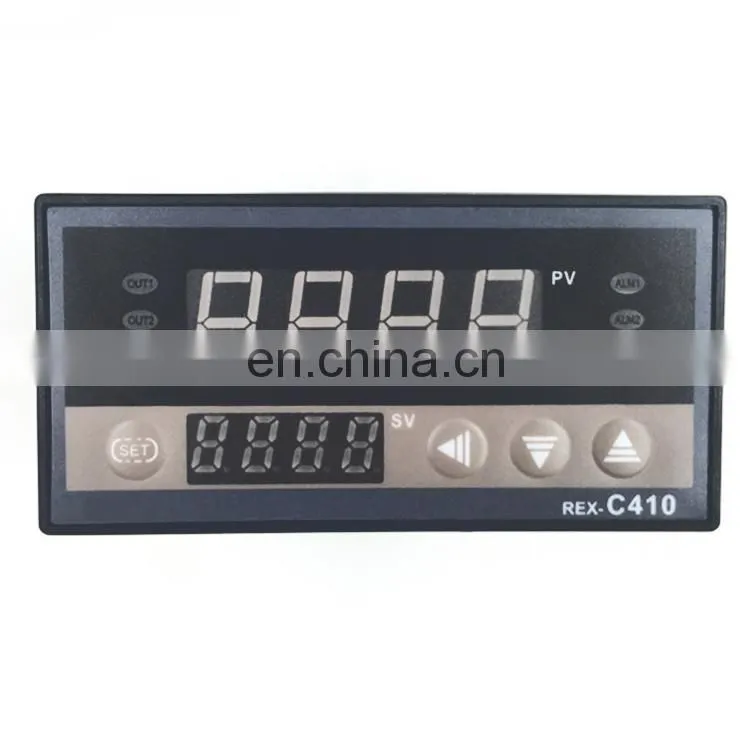

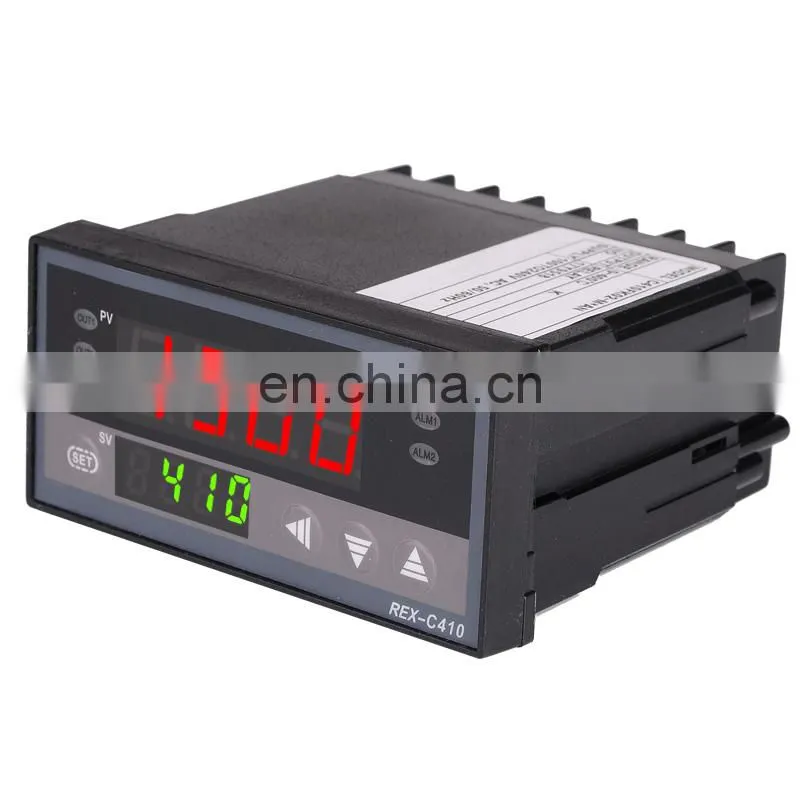

Digital PID Temp Controller REX-C410 48*96mm Horizontal, Input Thermocouple K Relay Output for Heat Temperature Controller
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2009
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Temperature K Type Thermocouple Sensor for Ceramic Kiln Furnace 2372 Fahrenheit 1300 Degree WRP-100 ThermocoupleNegotiableMOQ: 1 -
Mini LCD Digital Thermometer Hygrometer Thermostat Indoor Convenient Temperature Sensor Humidity Meter Gauge Instruments ProbeNegotiableMOQ: 1
-
KSD9700 250V 5A Bimetal Disc Temperature Switch NO NC Thermostat Thermal Protector 15~150 Degree Centigrade 40 60NegotiableMOQ: 1
-
ALC18 Din Rail Staircase Lighting Timer Switch Timer Relay 220VAC 16A Used for Corridor Lighting Mechanical Din Rail TimerNegotiableMOQ: 1
-
SUL181H Mechanical Timer 24 Hours Time Switch Relay Electrical Din Rail Timer Switch, Time Delay RelayNegotiableMOQ: 1
parameters
Features:
This is a bid for a dual display universal digital programmable temperature controller that supports many type of thermocouple sensor. It can be powered by 85-265V AC, Comsumption5VA.
- Model: REX-C410
- PID control
Specifications:
- Display: Dual display for Celsius (°C)
- Range: -0-400°C (Only when with the factory K type thermocouple)
Thermocouple: K,J,S,E,R,Wre3 ~ Wre25
Thermo Resistor: PT100, Cu50
- Main Output: Relay:
- PID cooling/heating control
- 1 RELAY alarm: Normal open, capacity 250V/3A AC or 30V/3A DC
- 7 different Dual Output combinations with: high / low / high deviation / low deviation /interval / out of interval / breakage alarm
- Accuracy: 0.5%
- Input: K
- Dimension: 48mm x 96mm x 900mm
- Weight: about 300g
-
Individually programmable PID control parameters.
P, I, d, controlling period, digital filter coefficient, and more - Relay control ready to connect
- Input: TC(K, J, S, E) / RTD (Pt100, CU50) universal input
- Control output: RELAY
- Alarm output: 1 line output, 7 kinds of alarm mode: high/low/high deviation/low deviation/interval/out of interval/breakage alarm.
