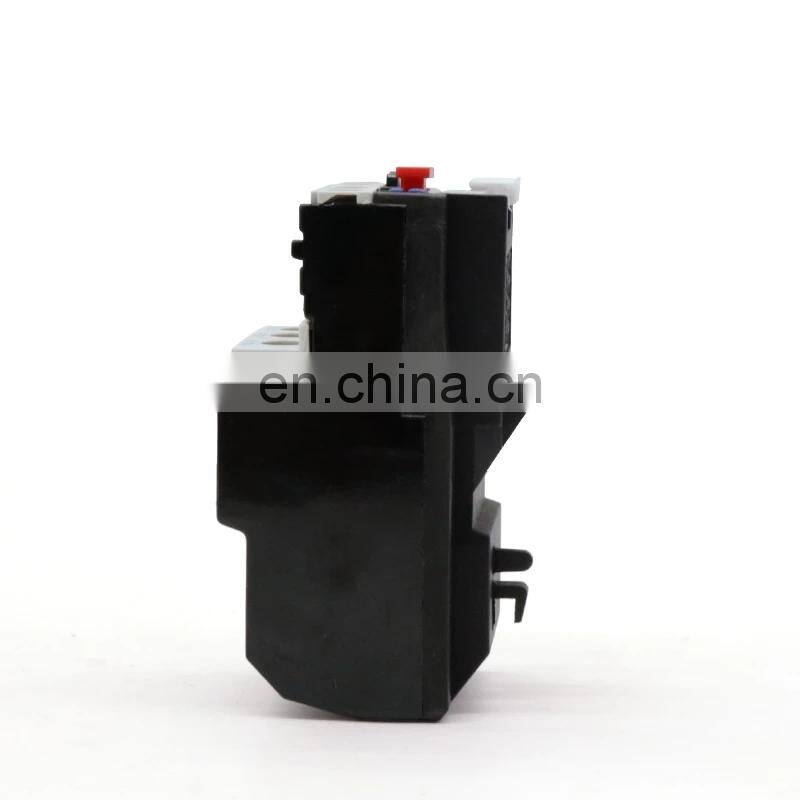

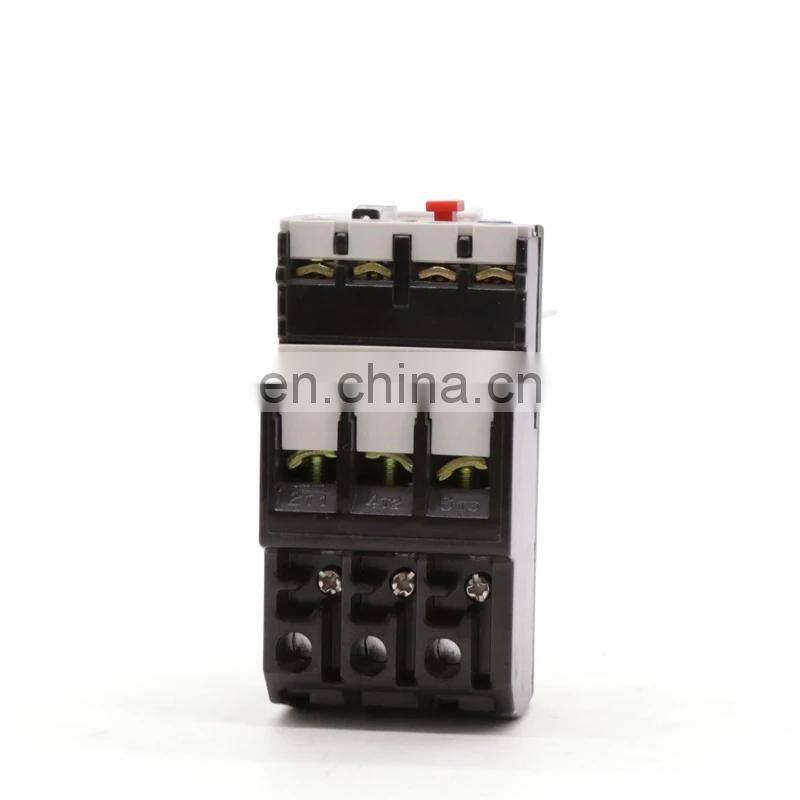

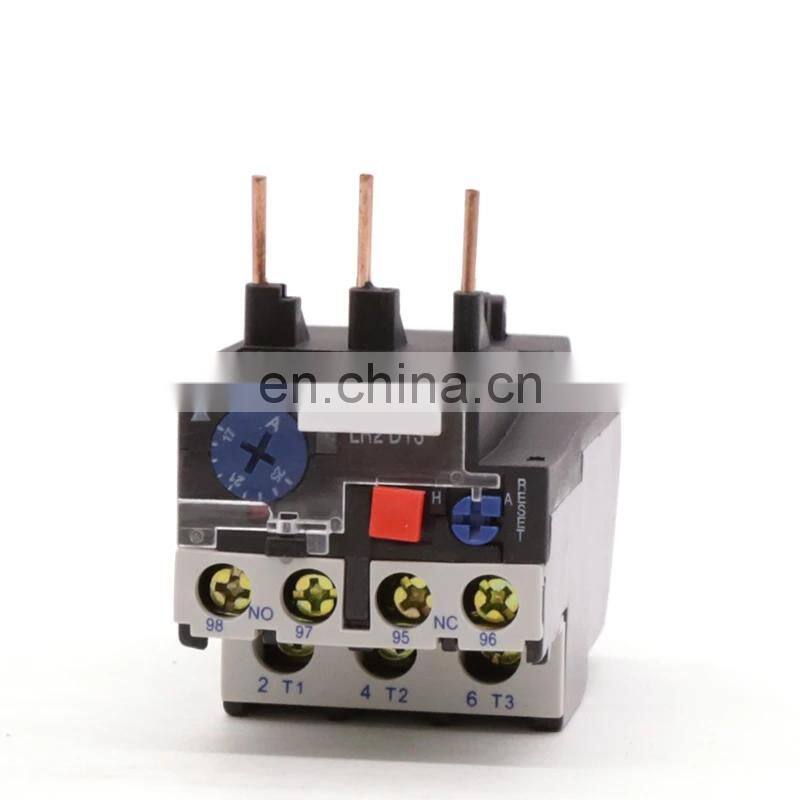

JR28-25 Thermal Overload Relay LR2D13 Adjustable thermal relay Electric Relays 1.6A 2.5A 4A 6A 8A 10A 13A 18A 25A
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Boat Truck Car Audio Amplifier Inline Circuit Breaker 50A 60A 80A 100A 125A 150A 200A Fuse Waterproof 12V 24V Protection
-
Car Truck Audio Amplifier Circuit Breaker 50A 60A 80A 100A 150A 12V 24V DC Fuse Holder AGU Style Stereo Amplifier Refit Fuse
-
H3Y-2 DC 12V 24V /AC 110V 220V Delay Timer Time Relay 5A 0 - 30 SEC with Base
-
Single Phase Solid State Relay SSR-40DD 40A 3-32V DC to 5-60V DC
-
LY4NJ HH64P AC 110V 220V DC 12V DC 24V 14PIN 10A silvercontact Power Relay Coil 4PDTintermediate relay switchwithsocket Base
-
MK3P MK-3P PLUG IN RELAY 11PIN 3P FITS 220V AC COIL with socket base
Product Description
parameters

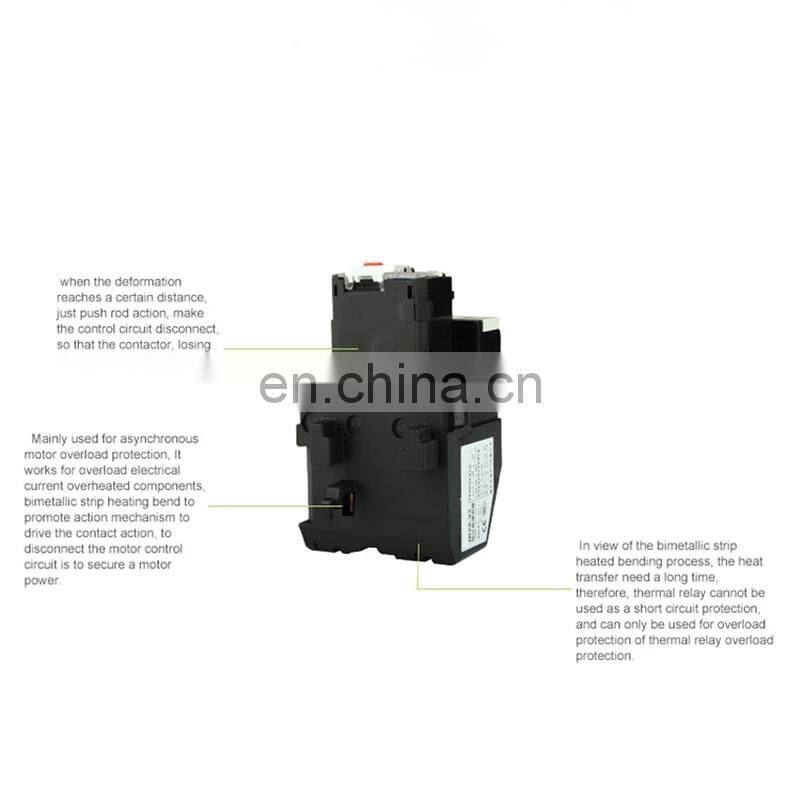

This series of thermal relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 660V, rated current 0.1-93A for protecting the phase break when the electric motor is overload. The relay has different mechanism and temperature compensation & can be pluged in LC1-D/CJX2 series AC contact.
| Product Name | Thermal Overload Relay | ||
| Model | JR28-25 | ||
| Material | Plastic, Electronic Components | ||
| Thermal Contact | 1 NO + 1 NC | ||
| Thermal Relay Rated Current | 0.1A-25A | ||
|

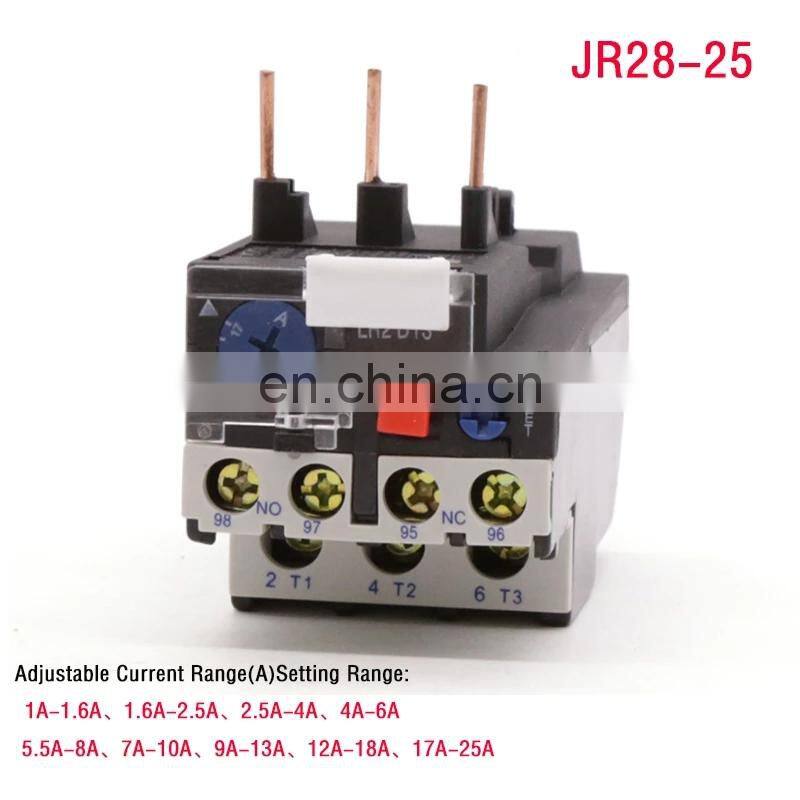

Adjustable Current Range(A) Setting Range |
1A-1.6A 1.6A-2.5A 2.5A-4A 4A-6A 5.5A-8A 7A-10A 9A-13A 12A-18A 17A-25A Pls note the current range when place the order |
||
| Ui | 660V | ||
| Frequency | 50/60HZ | ||
| Tripping Class | |||
| Total Size (Approx.) | 7x 4.5x 7.5cm / 2.8"x1.8"x2.95" (L*W*H) | ||
| Color | As Picture Shown |
||
