Miniature SSR- 25DA Electromagnetic Solid State Relay Single Phase SSR 10DA DC Control AC Relay Flip cover

Product Description



 1.Product attributes

SSR -10DA Single phase Solid state relay

Load Current: 10A
Load Voltage:    24~480VAC
Control Voltage: 4~32VDC
Control Current: 3~25MA
On Voltage:      ≤ 1.5VAC
Off Leakage Current:    ≤4MA
On-off Time:      ≤ 10MS
Dielectric Strength: 2500VAC
Insulation Resistance: 100M Ω /500VDC
Ambient Temperature: -25~+75°C
Work instruction: LED
Weight 90g



SSR -25DA Single phase Solid state relay

Load Current: 25A
Load Voltage:    24~480VAC
Control Voltage: 4~32VDC
Control Current: 3~25MA
On Voltage:      ≤ 1.5VAC
Off Leakage Current:    ≤4MA
On-off Time:      ≤ 10MS
Dielectric Strength: 2500VAC
Insulation Resistance: 100M Ω /500VDC
Ambient Temperature: -25~+75°C
Work instruction: LED
Weight 90g




SSR -40DA Single phase Solid state relay

Load Current: 40A
Load Voltage:    24~480VAC
Control Voltage: 4~32VDC
Control Current: 3~25MA
On Voltage:      ≤ 1.5VAC
Off Leakage Current:    ≤4MA
On-off Time:      ≤ 10MS
Dielectric Strength: 2500VAC
Insulation Resistance: 100M Ω /500VDC
Ambient Temperature: -25~+75°C
Work instruction: LED
Weight 90g

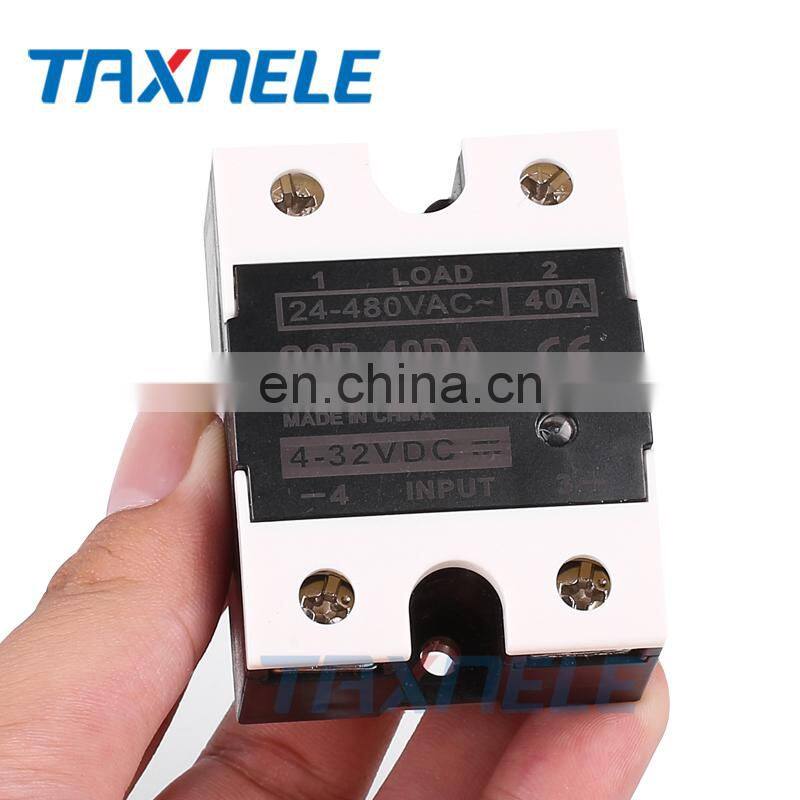

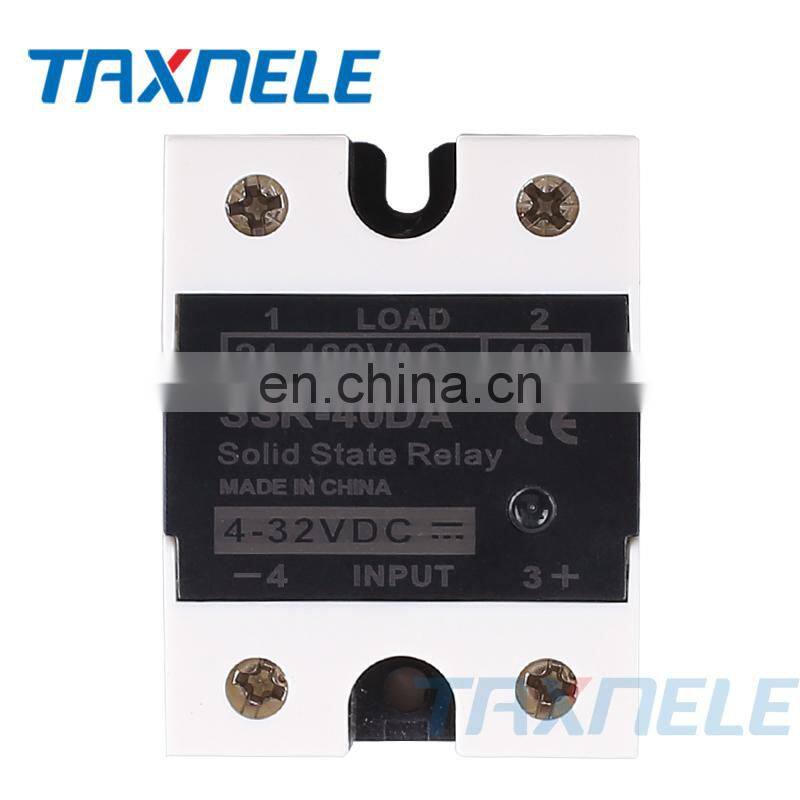

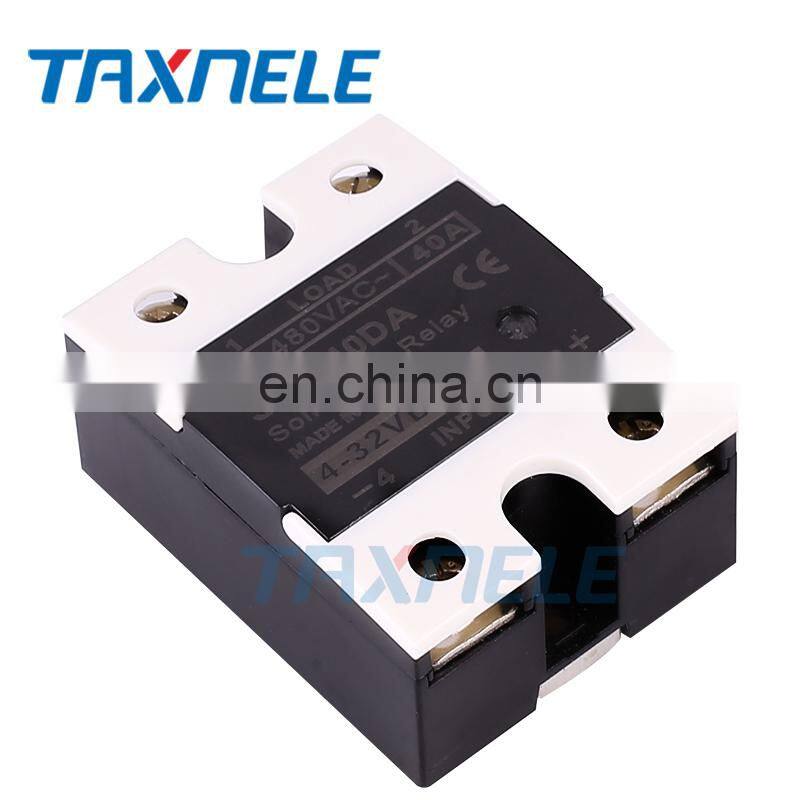

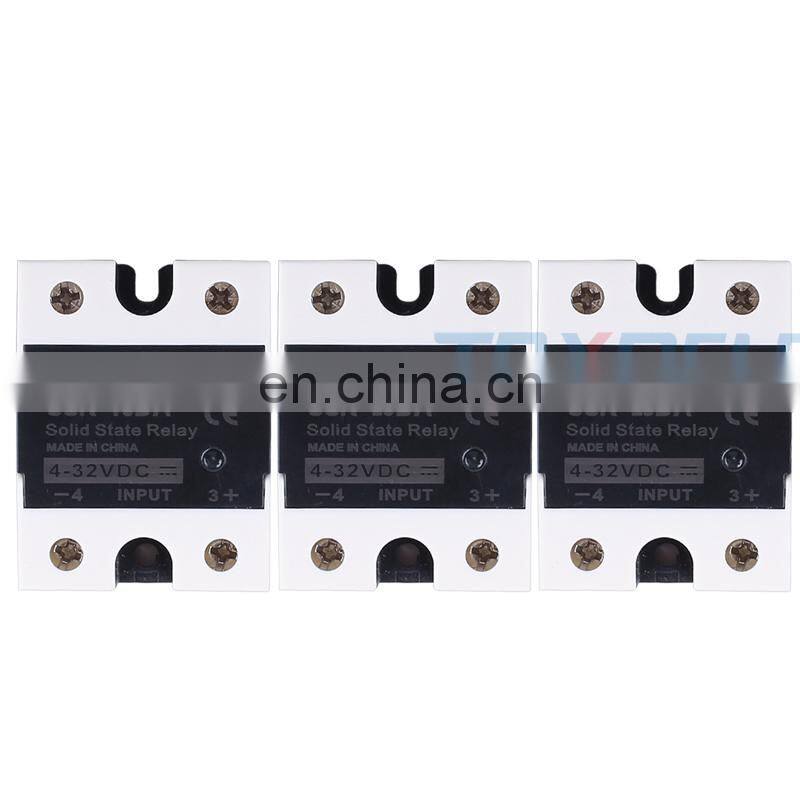

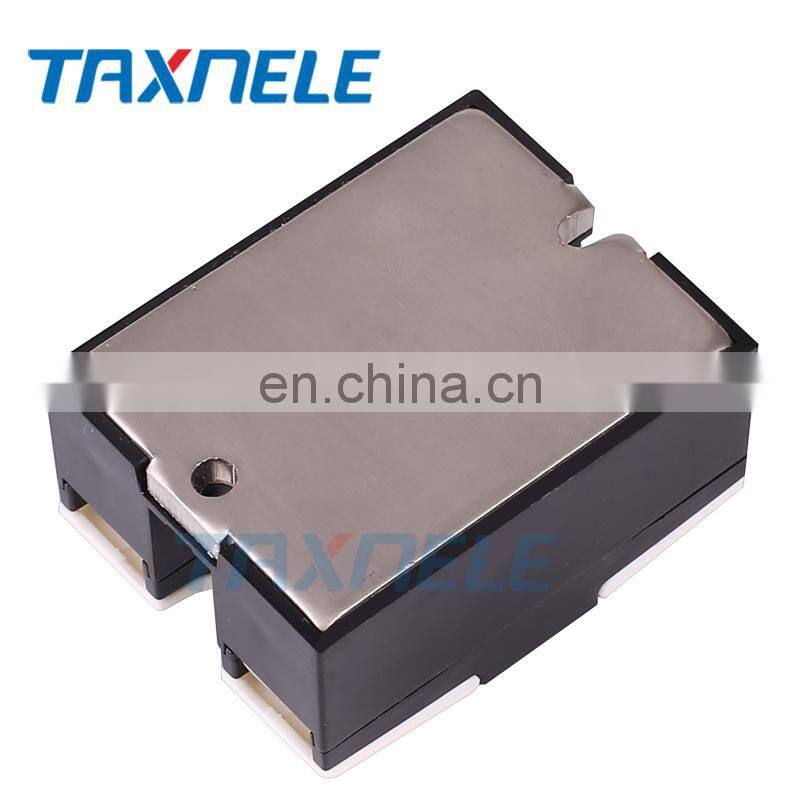

   2.Product display

DC To AC SSR-40DA SSR 25DA 10DA Solid State Relay 4-32VDC Input 24-480VAC Output solid state relay Industrial Single black SSRDC To AC SSR-40DA SSR 25DA 10DA Solid State Relay 4-32VDC Input 24-480VAC Output solid state relay Industrial Single black SSRDC To AC SSR-40DA SSR 25DA 10DA Solid State Relay 4-32VDC Input 24-480VAC Output solid state relay Industrial Single black SSRDC To AC SSR-40DA SSR 25DA 10DA Solid State Relay 4-32VDC Input 24-480VAC Output solid state relay Industrial Single black SSRDC To AC SSR-40DA SSR 25DA 10DA Solid State Relay 4-32VDC Input 24-480VAC Output solid state relay Industrial Single black SSRDC To AC SSR-40DA SSR 25DA 10DA Solid State Relay 4-32VDC Input 24-480VAC Output solid state relay Industrial Single black SSR
