Home > Electrical & Electronics > Relay & Contactor > Relay > PN5-10DA Din Rail SSR 5 Channel Quintuplicate Five Input Output 24VDC Single Phase DC to AC 10A Solid State Relay
PN5-10DA Din Rail SSR 5 Channel Quintuplicate Five Input Output 24VDC Single Phase DC to AC 10A Solid State Relay
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2009
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GKR-02 Voltage Monitoring Device Relay Phase Failure And Phase-sequence Protection Relay Din Rail Motor ProtectionNegotiableMOQ: 1 -
High Current Relay 500A 12V/24V Dual Battery Start Relay Large Current Car Power Switch,Starting Relay,Auto Starter RelayNegotiableMOQ: 1
-
DIN RAIL HF41F 12V 24V Integrated PCB Mount Power Relay With Relay Holder Voltage Contact Relay Module SetNegotiableMOQ: 1
-
Din Rail Solid State Relay DC-AC H3F-205SN DC-DC H3FD-X05SN 5A Out Put 5-24VDC 100-220V ACNegotiableMOQ: 1
-
DC12V LED Digital Time Delay Relay Module Programmable Timer Relay Control Switch Timing Trigger Cycle With Case for IndoorNegotiableMOQ: 1
Product Description
1.Product attributes
Din Rail Solide state relay
Input 3~32V DC
Output 24~380VAC
quintuplicate output
Rate current 10A
| Type | Standard type | Isolation type | |
| Model | ST5-5DD | ST5-5DDG | PN5-10DA |
| Rated load current | 5A | 5A | 10A |
| Input Data | |||
| Input voltage | 24VDC | 3~32VDC | |
| Min. ON/OFF Voltage | ON>4V. OFF<1.0V | ON>2.4V. OFF<1.0V | |
| Trigger current | 7.5mA/12V | 4mA/12V | |
| Output Data | |||
| Operating Voltage | 24VDC | 5~36VDC | 24~380VAC |
| Voltage Drop | 1.6V/25°c | ||
| Leakage Current | <=0.8mA | <=0.7mA | |
| Response Time | < 1ms | ON<10ms, OFF<10ms | |
| Dielectric Strength | Over 2.5KVAC/1min. | ||
| Isolation Strength | Over 50M/500VDC | ||
| Operation Temperature | _20°c ~ +80°c | ||
| Housing Material | Intensive ABS | ||
| Weight | 65g | 85g | |
| Installation | Din rail installation | ||

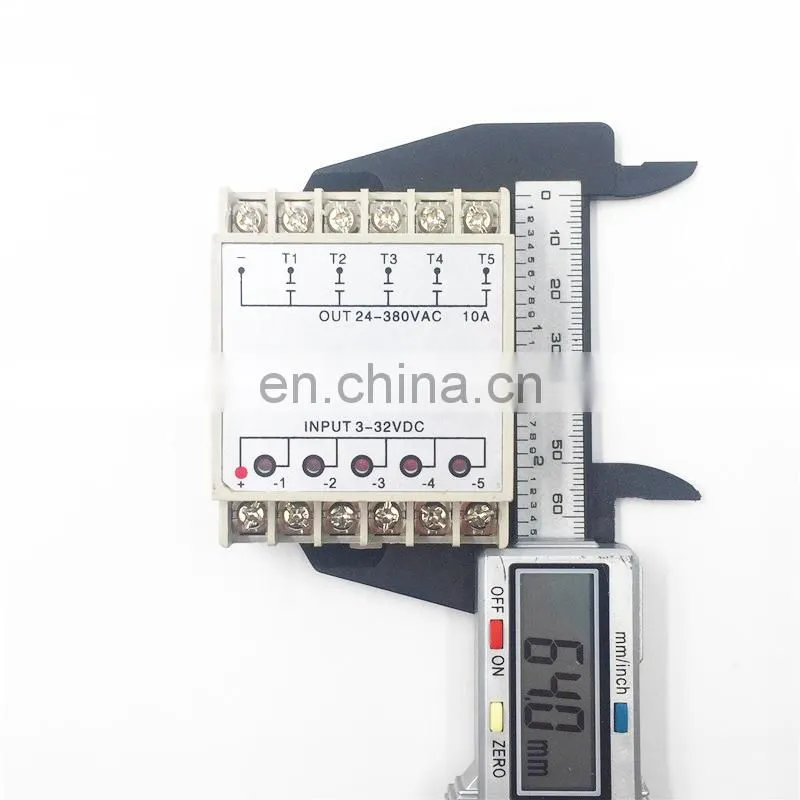

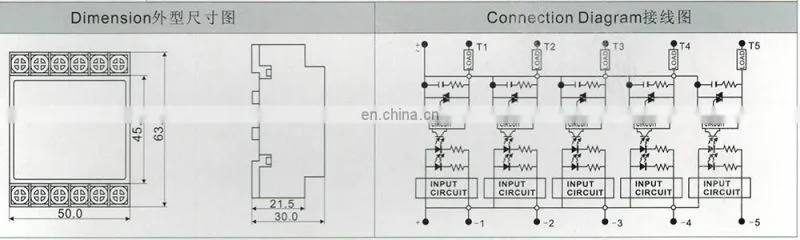

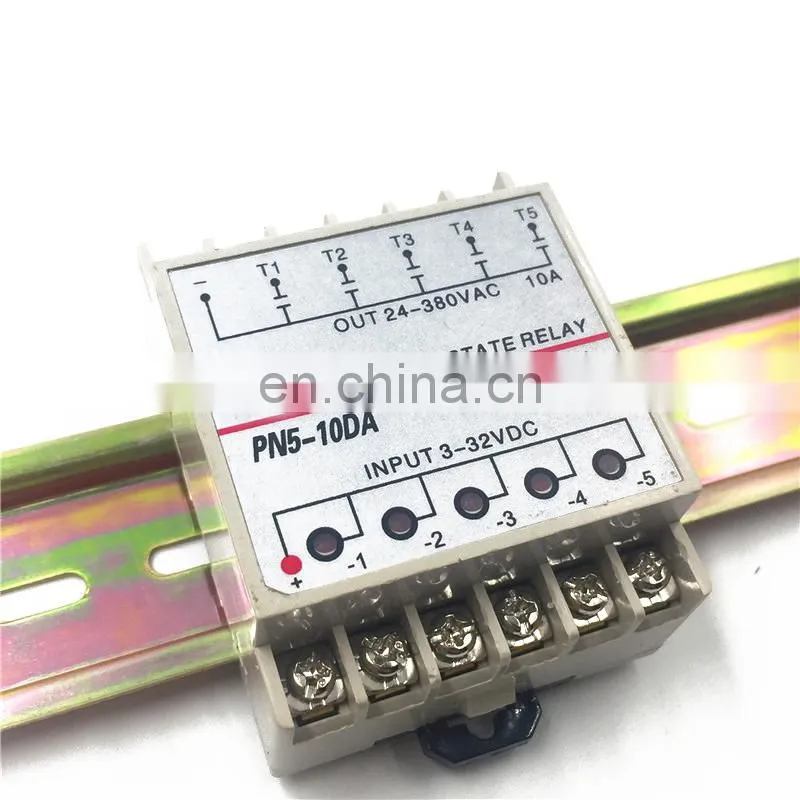

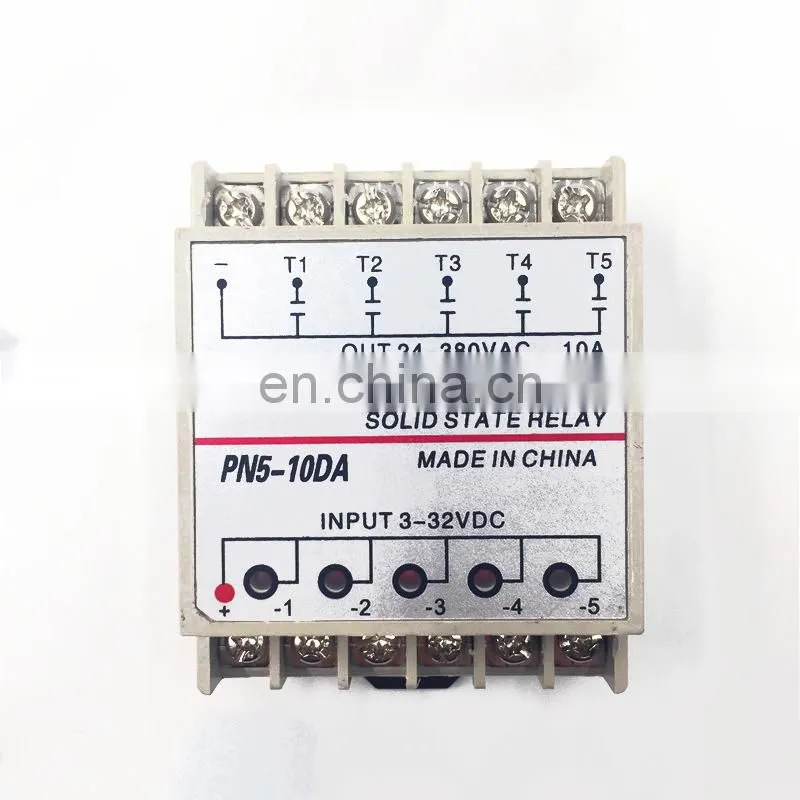

2.Product display
