High Current Relay 500A 12V/24V Dual Battery Start Relay Large Current Car Power Switch,Starting Relay,Auto Start Contactor
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2009
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DC 12V Moto LED Turn Signal Flasher Relay Three Gear Frequency Motorcycle Adjustable Speed Flash Relay Accessaries CF13NegotiableMOQ: 1 -
Waterproof Automotive Relay DC 12V 40A 5 Pin 5Pin SPDT Car Control Device Car Relays High Capacity SwitchingNegotiableMOQ: 1
-
DC 12V Moto LED Turn Signal Flasher Relay Three Gear Frequency Motorcycle Adjustable Speed Flash Relay Accessaries CF13 CF14NegotiableMOQ: 1
-
High Current Start Relay 200A 100a Relay 12V/24V Power Automotive Heavy Current Startint RelayNegotiableMOQ: 1
-
H3CR-A8 24240VAC DC 1.2s to 300h Time Timer Delay Relay 8Pins SocketNegotiableMOQ: 1
1.Product attributes
Features:
- It help extend battery life.
- Universal 12V applications.
- Prevents primary battery discharge.
- Made of water resistant black phenolic plastic.
- The main function of this product is to switch on, it can be used alone, it can be also connected to control to use, but this product does not include additional control relay, and if the controller is connected, it mainly used in the dual battery.
Specifications:
Product series: auto relay
Contact load: high power
Contact switching current: 500A
Contact switching voltage: 7.8VDC
Contact form: transformation type
Rated current: 500A
Protective features: sealing type
Coil power: 12V DC, 24V DC
Weight: 235g
CONTACT DATA
| Contact material | AgSn0_27In_20_33 |
|
Contact form |
1H(1A) |
| Contact Ratings | 500A |
| Contact Resistance | 100mMax at 6VDC 1 A |
|
Max Switching Current |
500A |
| Max Switching Voltage | 14VDC |
|
Max Switching Power |
500A |
| Life Expectancy Electrical | 100,000 Operations(at 30 Operations/minute) |
| Life Expectancy Mechanic | 10,000,000 Operations |
COIL SPECIFICATION
| Nominal Voltage (VDC) | Coil Resistance() | Max Operate Voltage (VDC) | Mix Release Voltage (VDC) | Max Applicable Voltage (VDC) |
| 12 | 16 | 8 | 1.2 | 14 |
| 9 |
CHARACTERISTICS:
| Temperature Range |
-30~80° |
| Vibration Resistance | 10-55Hz,1.5mm |
|
Shock Resistance Operations Extremes Damage Limits |
50g |
| 100g | |
| Humidity | 40-85% |
| Insulation Resistance | 100mΩ min at 500vdc |
| Safety Standard | |
| Dielectric Strength Between Open Contacts | 2000VAC(for 1 minuter/s) |
| Between Contacts and coil | 1500VAC(for 1 minuter/s) |
| Operate Time | 50ms |
| Release Time | 50ms |

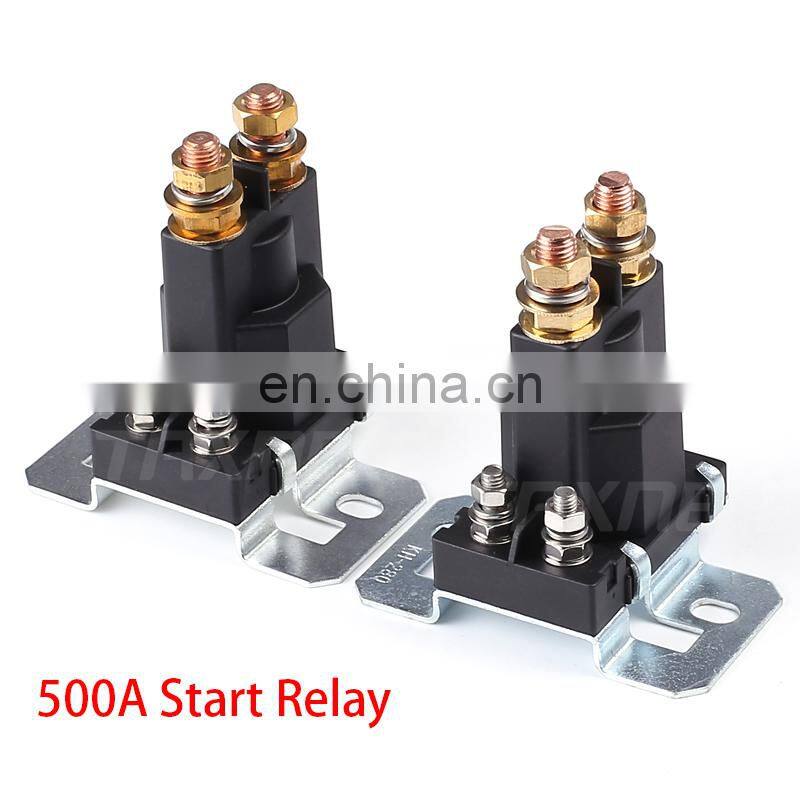

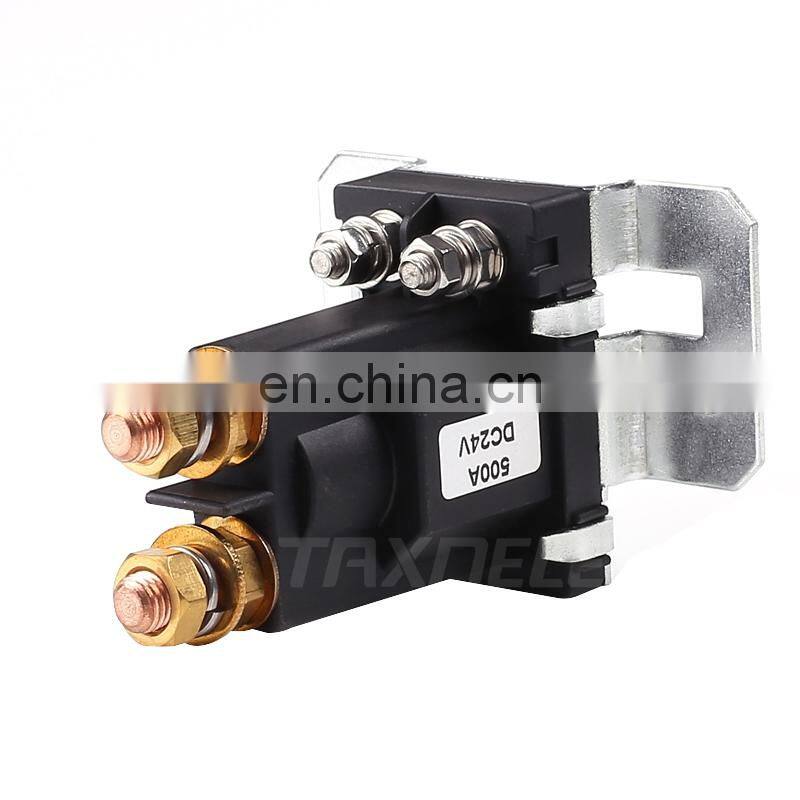

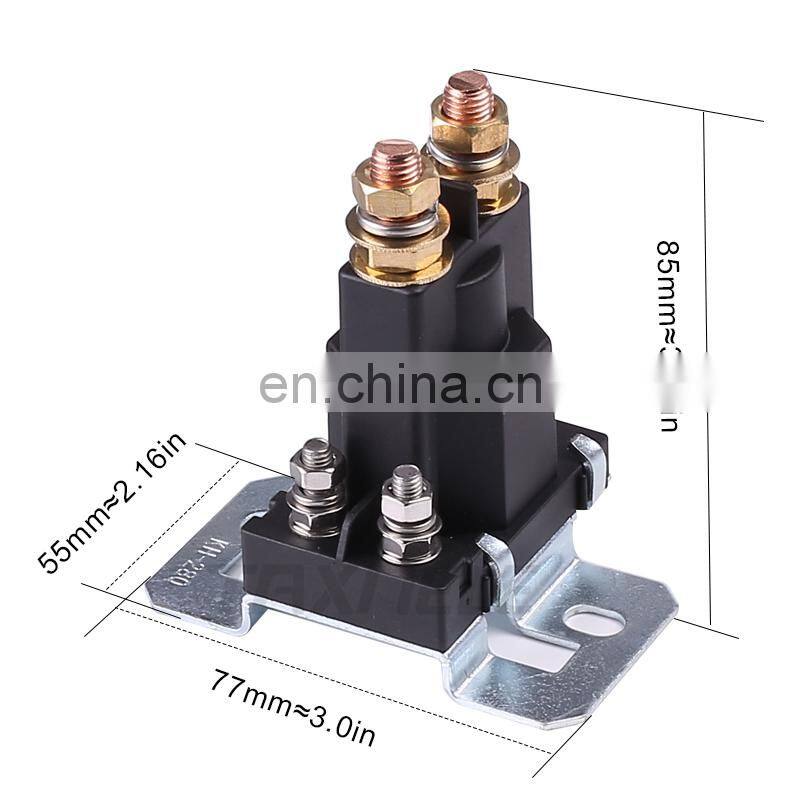

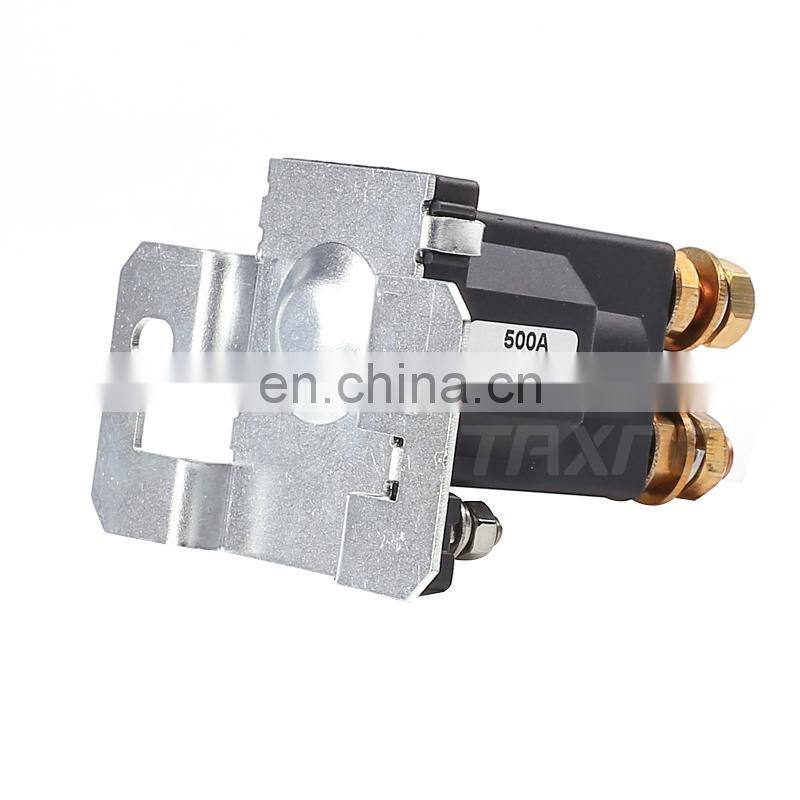

2.Product display
