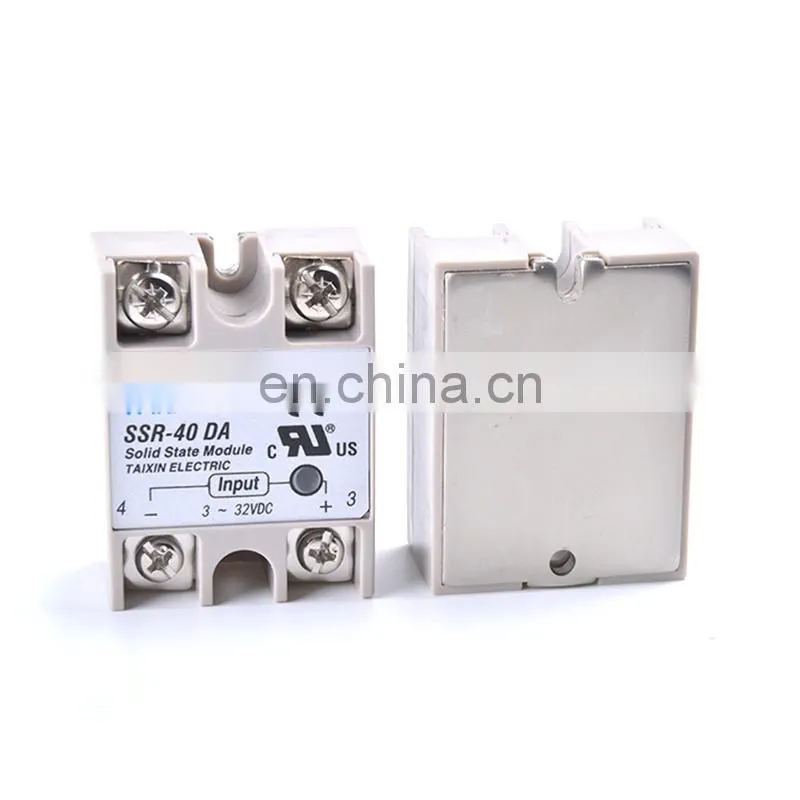

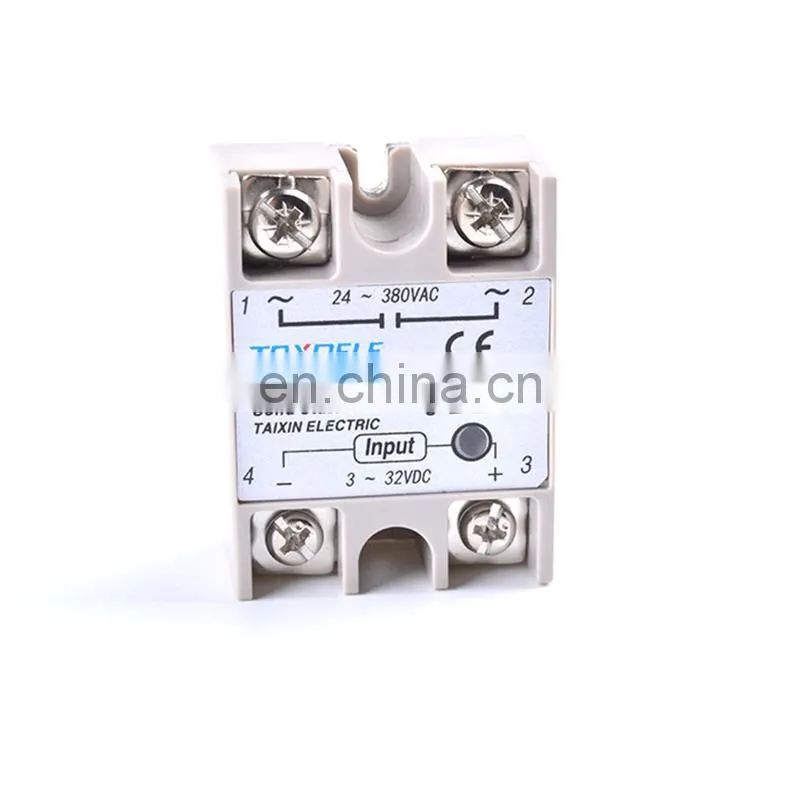

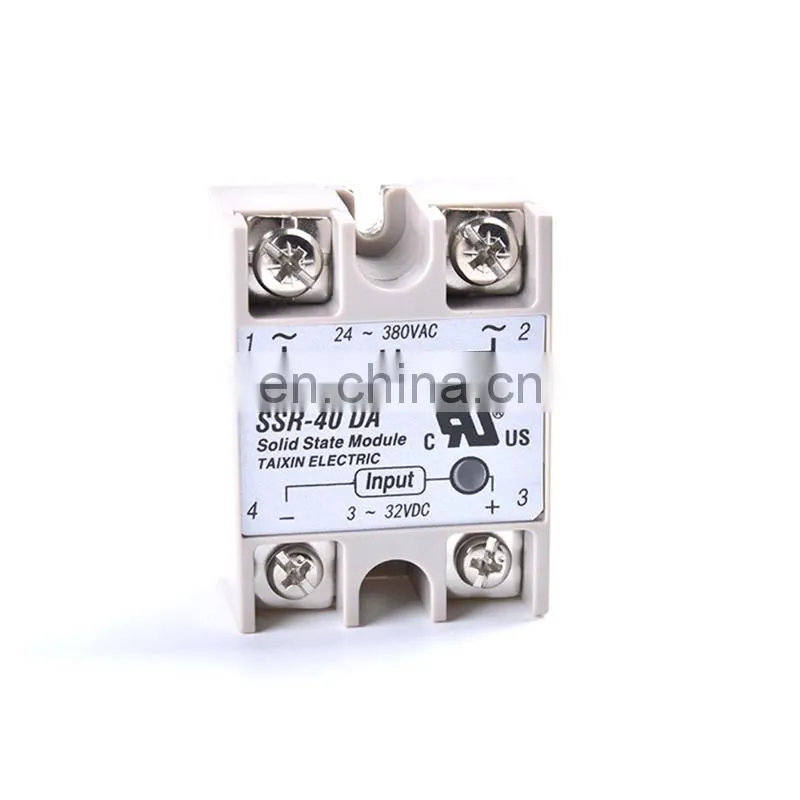

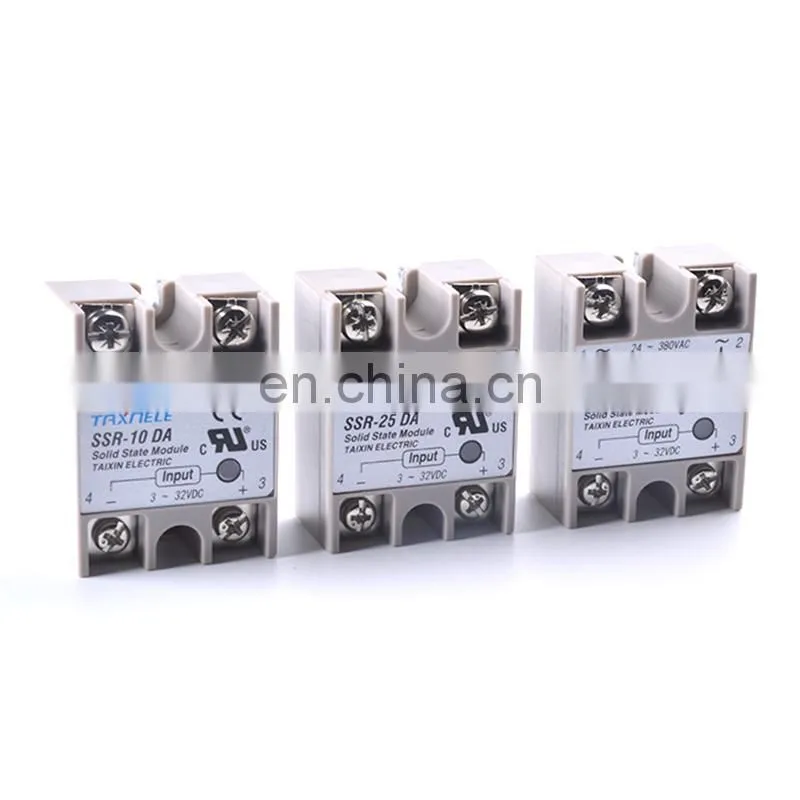

Single Phase Solid State Relay SSR-40DA SSR-25DA SSR-10DA DC to AC 3-32VDC Input 24-380VAC Output Solid State Relay Module

Single Phase Solid State Relay SSR-40DA SSR-25DA SSR-10DA DC to AC 3-32VDC Input 24-380VAC Output Solid State Relay Module thumbnail-1
Single Phase Solid State Relay SSR-40DA SSR-25DA SSR-10DA DC to AC 3-32VDC Input 24-380VAC Output Solid State Relay Module thumbnail-2
Single Phase Solid State Relay SSR-40DA SSR-25DA SSR-10DA DC to AC 3-32VDC Input 24-380VAC Output Solid State Relay Module thumbnail-3
Single Phase Solid State Relay SSR-40DA SSR-25DA SSR-10DA DC to AC 3-32VDC Input 24-380VAC Output Solid State Relay Module thumbnail-4
Single Phase Solid State Relay SSR-40DA SSR-25DA SSR-10DA DC to AC 3-32VDC Input 24-380VAC Output Solid State Relay Module thumbnail-5
Single Phase Solid State Relay SSR-40DA SSR-25DA SSR-10DA DC to AC 3-32VDC Input 24-380VAC Output Solid State Relay Module photo-1
Single Phase Solid State Relay SSR-40DA SSR-25DA SSR-10DA DC to AC 3-32VDC Input 24-380VAC Output Solid State Relay Module photo-2
Single Phase Solid State Relay SSR-40DA SSR-25DA SSR-10DA DC to AC 3-32VDC Input 24-380VAC Output Solid State Relay Module photo-3
Single Phase Solid State Relay SSR-40DA SSR-25DA SSR-10DA DC to AC 3-32VDC Input 24-380VAC Output Solid State Relay Module photo-4
Single Phase Solid State Relay SSR-40DA SSR-25DA SSR-10DA DC to AC 3-32VDC Input 24-380VAC Output Solid State Relay Module photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2009
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Yueqing Taixin Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Paramenters

SSR -10DA,25DA,40DA Single phase Solid state relay
Load Current:
10A,25A,40A
Load Voltage:
24~380VAC
Control Voltage:
3~32VDC
Control Current:
3~25MA
On Voltage:
≤ 1.5VAC
Off Leakage Current:
≤4MA
On-off Time:
≤ 10MS
Dielectric Strength:
2500VAC
Insulation Resistance:
100M Ω /500VDC
Ambient Temperature:
-25~+75°C
Work instruction:
LED
Weight
90g
Remark: When you place an order, please note that you need 10A, 25A or 40A !!!
