Home > Instruments & Meters > Test Instrument > Test Machine > Manufacturer of 300W Programmable DC Electronic Load

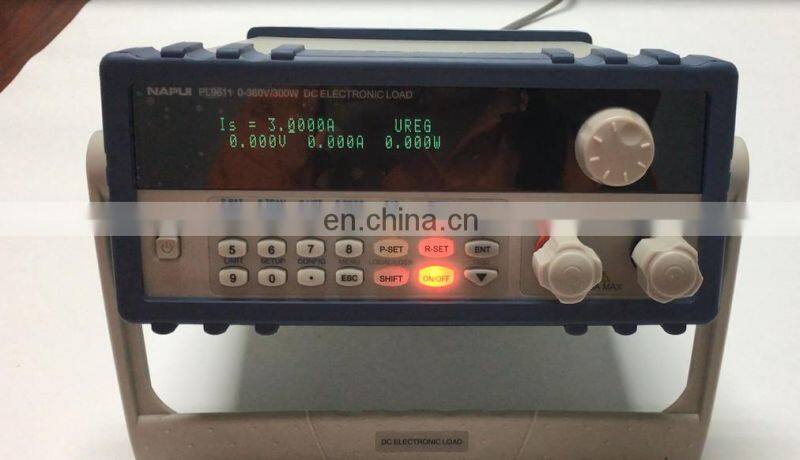

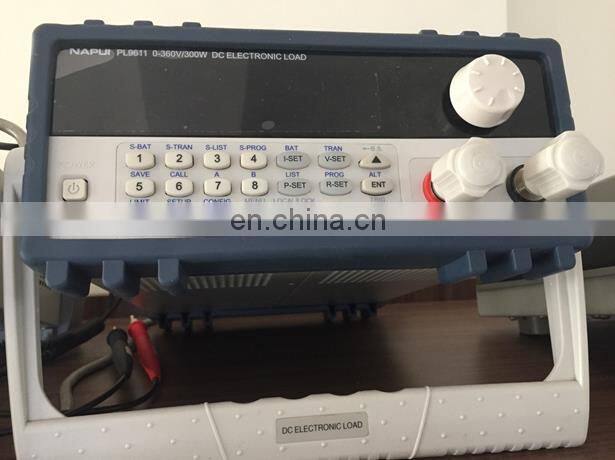

Manufacturer of 300W Programmable DC Electronic Load
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Programmable DC Electronic LoadNegotiableMOQ: 1 -
PL9610 150W 300V 30A Programmable DC Electronic LoadNegotiableMOQ: 1
-
150W 300w Programmable dc Electronic Load TesterNegotiableMOQ: 1
-
PL9611 300W Programmable DC Electronic LoadNegotiableMOQ: 1
-
NAPUI PL9610 CE Approved 150W dc Electronic LoadNegotiableMOQ: 1
Manufacturer of 300W Programmable DC Electronic Load
| Model | PL9610 | PL9611 | |
| Input Voltage | 0~360V | ||
| Rated Valued | Input Current | 1mA~30A | |
| Input Power | 150W | 300W | |
| Range | Accuracy | Resolution | |
| Load Accuracy | 0-36V | ±(0.05%+0.03%FS) | 1mV |
| 0-360V | ±(0.05%+0.03%FS) | 10 mV | |
| 0-3A | ±(0.05%+0.05%FS) | 0.1 mA | |
| 0-30A | ±(0.05%+0.05%FS) | 1 mA | |
| CV Model | 1.5V-36V | ±(0.05%+0.03%FS) | 1mV |
| 1.5V-360V | ±(0.05%+0.03%FS) | 10mV | |
| CC Model | 0-3A | ±(0.05%+0.05%FS) | 0.1 mA |
| 0-30A | ±(0.05%+0.05%FS) | 1mA | |
| CR Model | 0.05Ω-5Ω | ±(0.2%+0.2%FS) | 0.001Ω |
| (When input voltage and current value≥10%FS) | 0.5Ω-50Ω | ±(0.1%+0.1%FS) | 0.01Ω |
| 5Ω-500Ω | ±(0.1%+0.1%FS) | 0.1Ω | |
| 500Ω-5KΩ | ±(1%+1%FS) | 1Ω | |
| Fix power model | 0-50W | ±(0.1%+0.1%FS) | 1 mW |
| (When input voltage and current value≥10%FS) | 0-150W | ±(0.1%+0.1%FS) | 10 mW |
| 0-300W | ±(0.1%+0.1%FS) | 0.1 W | |
| 0-9.9999V | ±(0.05%+0.03%FS) | 0.1mV | |
| Voltage measurement accuracy | 10.000-99.999V | ±(0.05%+0.03%FS) | 1mV |
| 100.00-360.00V | ±(0.05%+0.03%FS) | 10mV | |
| Current measurement accuracy | 0-9.9999A | ±(0.05%+0.05%FS) | 0.1 mA |
| 10.000-30.000 | ±(0.05%+0.05%FS) | 1mA | |
| Test the battery function | Input Voltage= 0.8-360V Max. Capacity= 999A/H | ||
| Resolution ratio=0.1mA Discharge time=1~60000sec | |||
| Dynamic Testing Model | T1&T2(A Value or B value test time):0.1mS-999S Error<2.5% + 0.1mS | ||
| Protective Range | >Rated condition 5% | ||
| Input terminal Impedance | ≥200KΩ | ||
| Dimension | W*H*D 230mm*100mm*350mm | ||
| Weight | PL9610 6Kg PL9611 6.5Kg | ||
