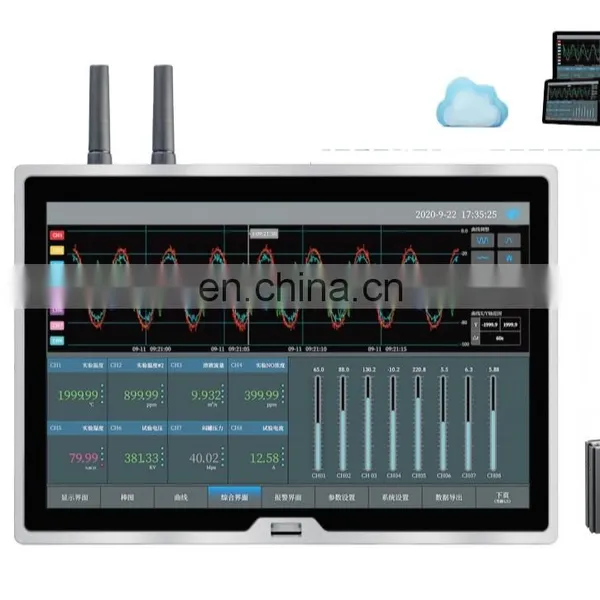

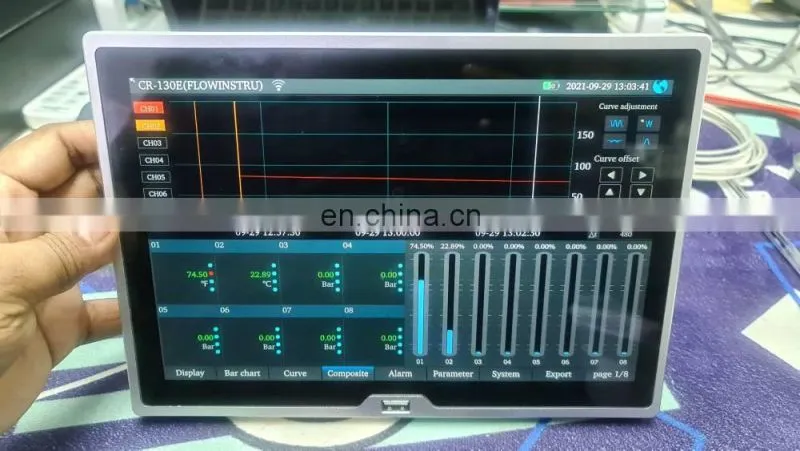

Multi-channel NAPUI130E data logger
Product Features:
duct description
NAPUI130E is a powerful recorder that can collect equipment data
and realize automatic equipment control functions.

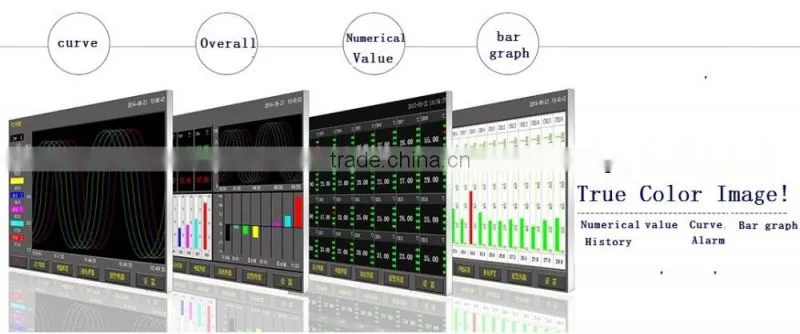

With its rich display screen, flexible operation mode, and
powerful recording, calculation, control and management
functions, the touch data logger has been widely used in all walks
of life. This product absorbs the advantages of various recorders
at home and abroad, and applies the latest display technology,
microelectronic technology, data storage and communication
technology. It is a product with complete functions, convenient
operation, accurate and reliable, and cost-effective.
2. Technical indicators
2.1 Power supply characteristics:
Power input: DC15~24V
Maximum power: 8W (in non-charging state)
Interface protection: reverse connection, wrong connection
2.2 Environmental characteristics:
Working environment: -20℃~70℃ 5~95%RH without condensation
Storage environment: -25℃~85℃ 5~90%RH without condensation
Altitude: below 4000 meters
2.3 Mechanical characteristics:
Shell material: aluminum profile
Surface treatment: surface oxidized metallic silver
Whole machine weight: 1.5Kg
Frame size: length X width X height, 245*171*30mm, excluding
antenna and hanging plate
Silk screen and label: Combination of silk screen and laser
marking, English characters Airal Bold font, Chinese Song Ti
Installation method: wall-mounted
2.4 Hardware configuration:

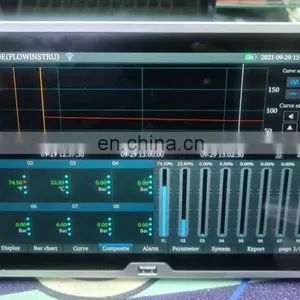

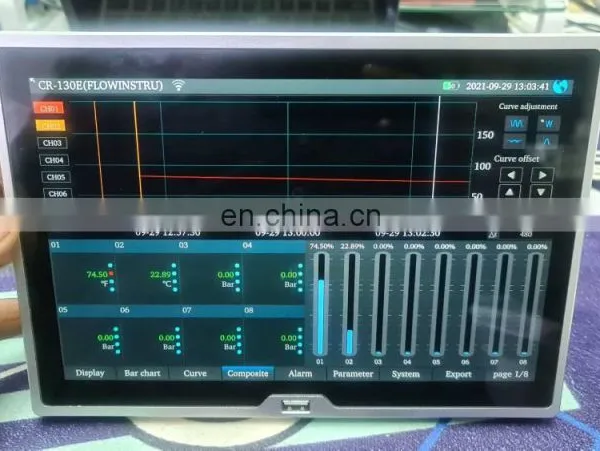

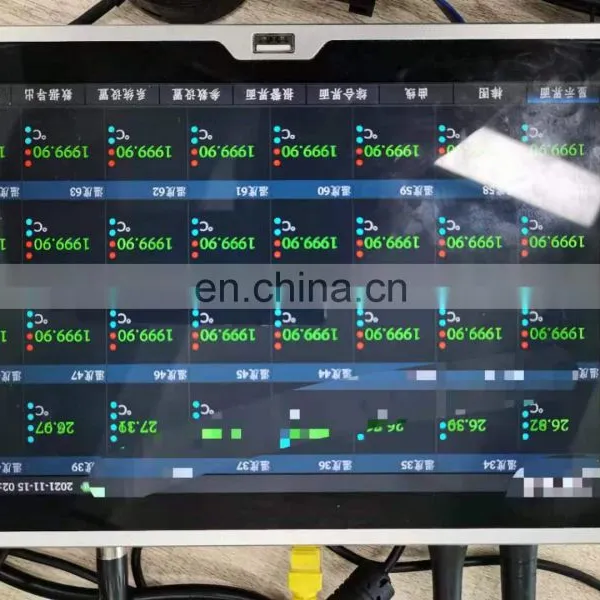

Display: 10.1-inch BOE display, resolution 1280X800
Touch screen: capacitive touch
Display orientation: support up and down flip
Battery: Built-in 6000mAh/12V lithium battery, full battery
life for more than 6 hours
Power switch: nickel-plated self-locking
wifi module: built-in (standard configuration)
4G module: built-in (optional)
Multi-function module: Built-in ZigBee/Lora/433M/Thread
(optional, choose one of four)
RJ45 network port: 100M WAN port
HD interface: HDMI
Multifunctional communication interface: dustproof aviation
connector
Power input port: dust-proof aviation connector and plug-in
terminal
SIM card slot: self-elastic thimble
Antenna: Two embedded antenna interfaces
USB interface: USB2.0

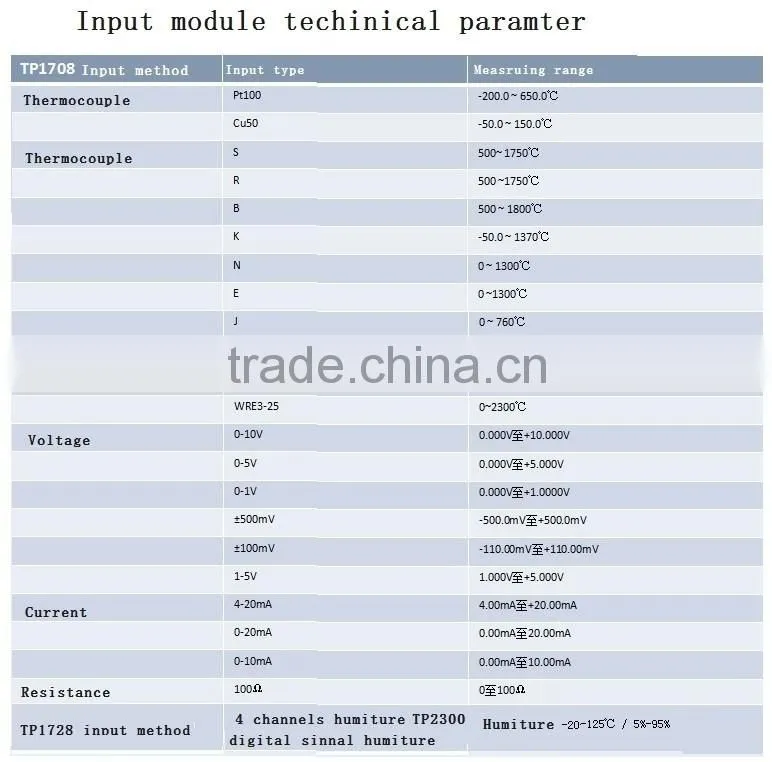

Acquisition card: built-in 8-channel universal input
acquisition card (terminal type)
Multi-function interface: built-in multi-function input and
output control interface (terminal type)
Power management module: you can set the host sleep mode, adjust
the screen brightness to enter the power saving mode
2.1 Communication interface:
Wireless communication: 4G, Wifi, ZigBee, Lora, 433M, Thread
Wired communication: Ethernet port, RS485 (three channels), TTL, RS232
(RS485 one of which is 485N fixed as northbound interface, and the other two
are custom southbound interfaces; 485S1, TTL, RS232 are built in the same COM
port, three options One use)
Display expansion: choose one of the 10.1 inch screen or HDMI of this
machine, and can not display at the same time or expand
USB interface: U disk upgrade and data export
