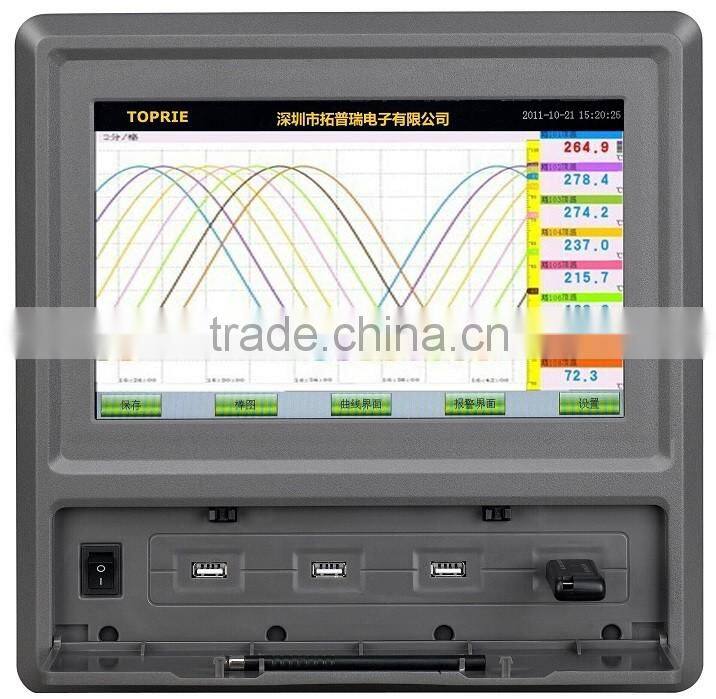

High quality wireless temperature and humidity recorder data recorder measuring device
Product Features:

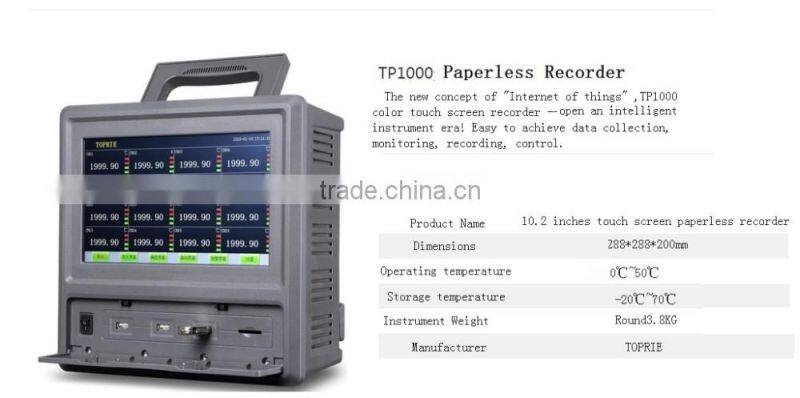

1. 10.2 inch (1024 X 600) TFT LCD high-brightness, clear picture, wide viewing angles.
2. Four wire resistive touch screen (4096 X 4096), and it provides swipe, pinch in/out, and click and drag controls for fast navigation of common display mode functions.

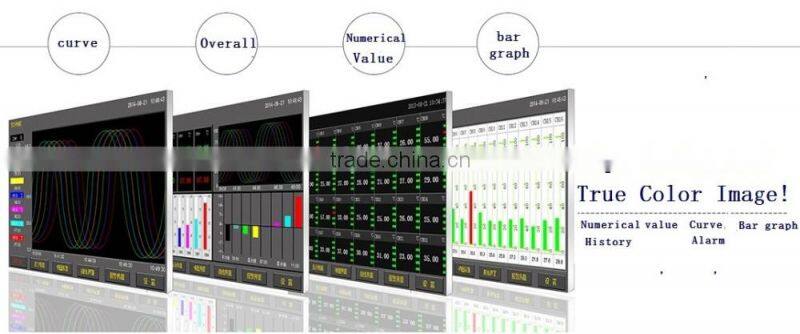

3. Powerful image display and data processing function.
4. Hidden embedded portable shape brings more convenience.
5. Support USB interface and large capacity. Effective support long-term information collection.

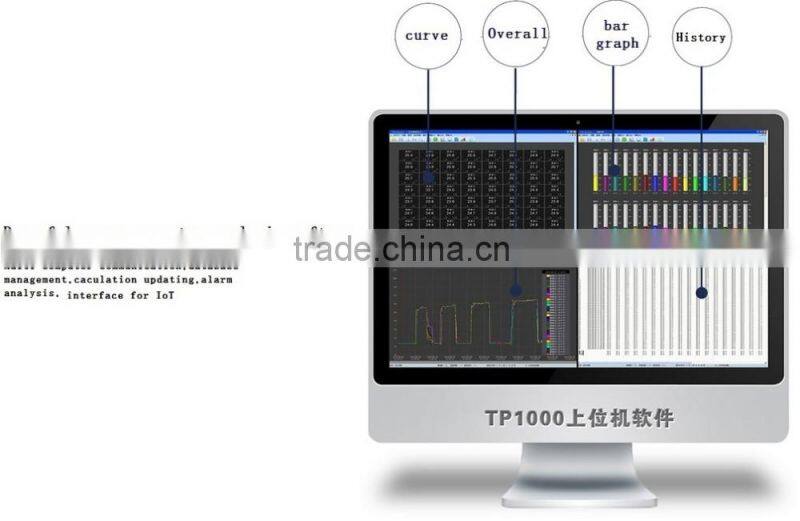

6. Powerful PC analysis software.
7. Data acquisition, monitoring, recording and controlling (including voltage, current, temperature, humidity, pressure, vibration, frequency, flow, liquid level, etc.
|
AC/DC Power |
85VAV~265VA/24VDC±10% |
|
Power Waste |
≤25VA(The instrument input channel number affects actual power waste) |
|
Channel Number |
1-64 |
|

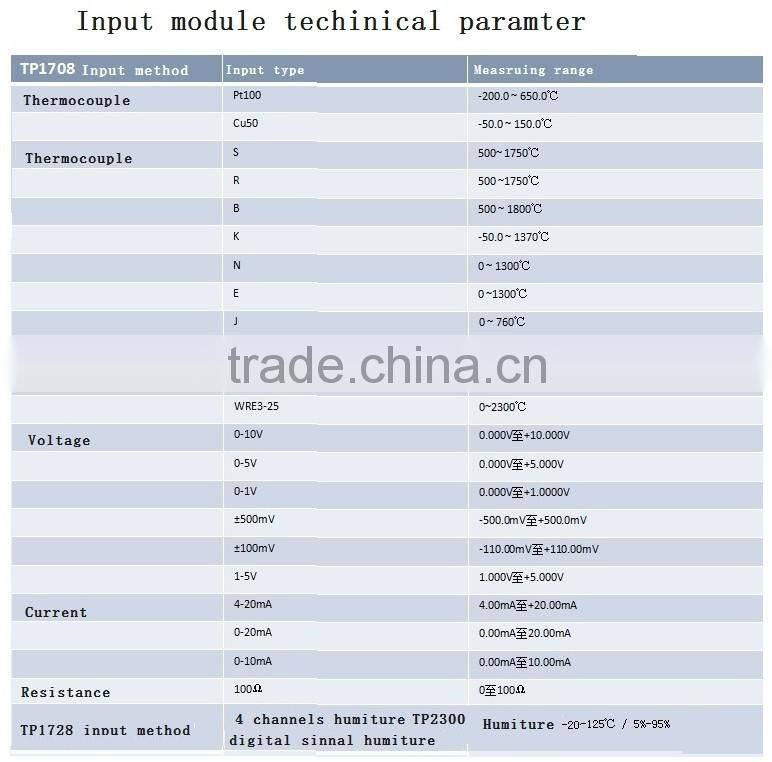

Input Signals |
Thermocouple:K,E,R,B,N,T,E.J,S,WRE5-26,WRE3-25 |
|
Hot resistance:Pt100,Cu50 |
|
|
Current:4-20mA,0-10mA,0-20mA |
|
|
Voltage:0-5V,0-10V,1-5V |
|
|
Measurement accuracy |
≤±0.2%F.S |
|
Recording rates |
1-19999s |
|
Recording capacity(Reference:68M) |
6 Days(64 channels; inter-record gap:1s) |
|
36 Days(64 channels; inter-record gap:1m) |
|
|
Recording model |
loop record |
|
Alarm type |
free to set upper and lower limits for each channel alarm;4 alarms each channel |
|
Relay |
TP1718 |
|
Distribution |
24VDC each channel |
|

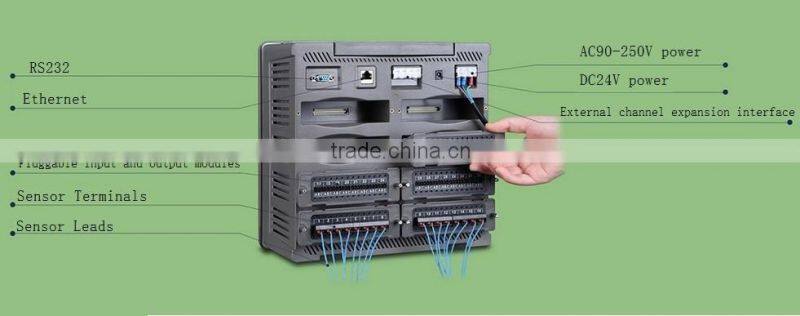

Communications |
Standard RS232C (or RS484, USB, Ethernet, GPRS wireless communications, etc.) |
|
Standard ModBus RTU communication protocol |
|
|
Operating temperature |
0℃~50℃ |
|
Operating humidity |
<85%R.H |
|
Storage temperature |
-20℃~70℃ |
|
Storage humidity |
<95%R.H |
|
Materials |
ABS |
|

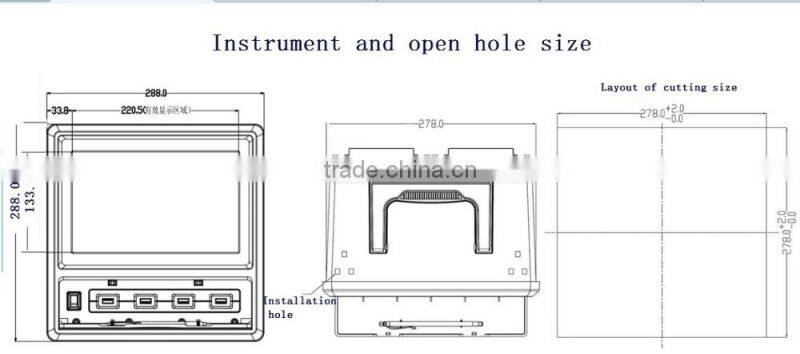

Dimensions |
288*288*200mm |
|
Panel cutout |
278*278mm |
|
Weight |
3.8KG |
