Connection

Single Phase

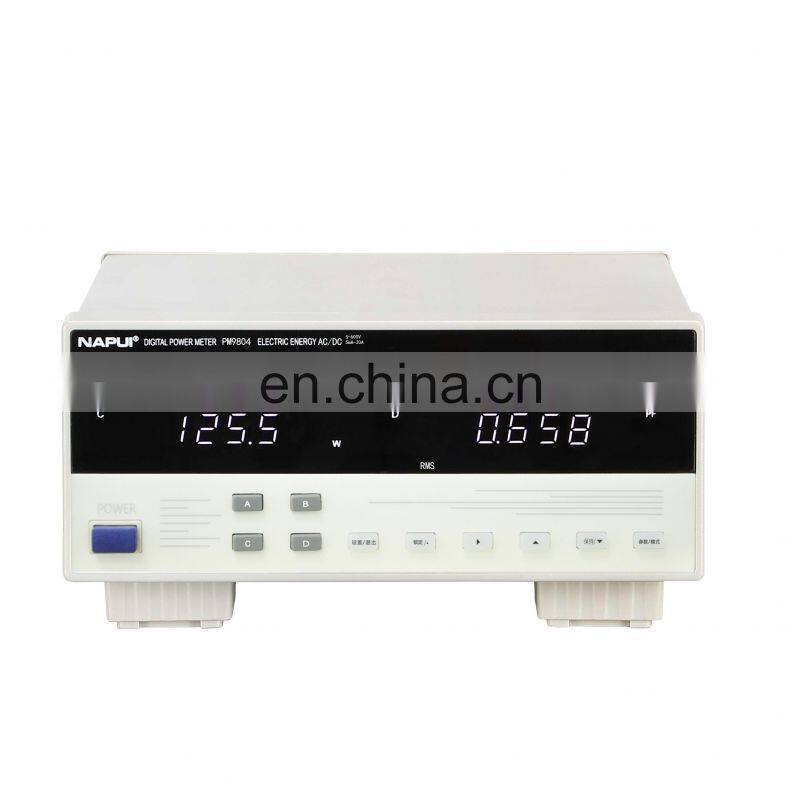

Display

Four Windows display, Seven-segment digital tube

Measuring items

Voltage-V, current-A, active power-W, power factor-PF, frequency-HZ

Measuring form

True Root Mean Square(TRMS)

Voltage Range DC

75v/150V/300v/600v DC(Switch the range automatically

Peak Voltage:700v DC

Min test voltage:5v(Below 5v, can't be tested)

Voltage Range AC

75v/150V/300v/600v AC(Switch the range automatically

Peak Voltage:700v AC

Min test voltage:5v(Below 5v, can't be tested)

Current Range DC

0.5A/2A/8A/20A DC (Switch the range automatically)  Peak Current:26A DC Min test current :10mA DC (Below 10mA, can't do tested)

Current Range AC

0.5A/2A/8A/20A AC (Switch the range automatically)  Peak Current:26A AC Min test current :10mA AC (Below 10mA, can't do tested)

Power Range(AC/DC)

0.1W-9999W

The frequency range

45-400Hz Note: when it is DC signal, no frequency display

Basic Accuracy

±0.4% reading +0.1%range+1 digit

Measuring Speed

Five times per second

Input Impedance

≥1MΩ(All voltage)

Power Supply

100~240V AC 50/60 Hz

Volume and weight

30cm(L)*21.5cm (W)*8.8cm(H), 3KG

Attachment

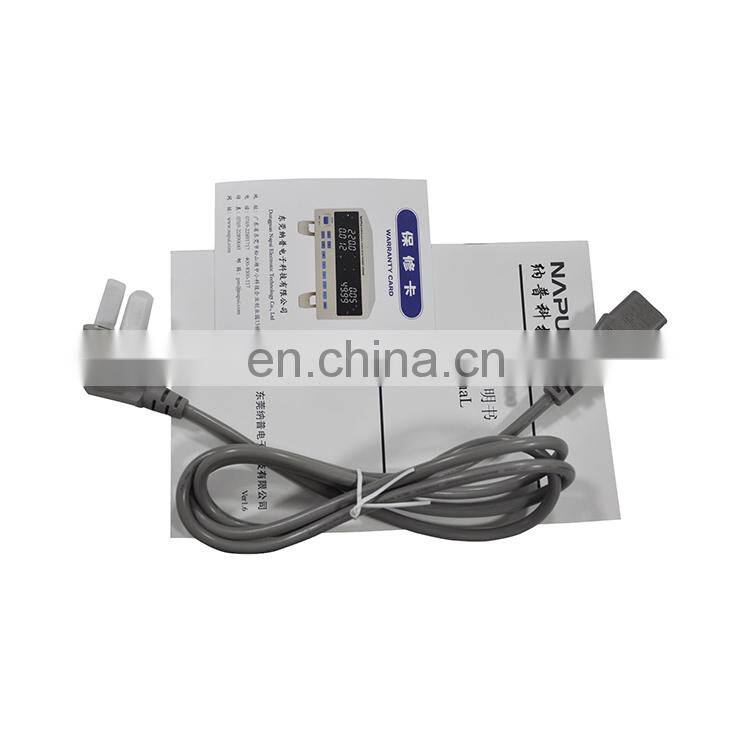

Power line, fuses, specification

Power factor Range(AC)

0.001-1.000 Calculation method: Watt(W)/[voltage(V) current(A)]=Power Factor(PF)

Note: when t is DC signal, power factor PF display 1.000
