SFR-APF dynamic reactive power compensation active harmonic filter
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Low voltage 380v power factor correction harmonic control induction super capacitor bank
-
Elecnova SFR-L series power factor correction intelligent low voltge 5kvar/10kvar/20kvar/30kvar/40kvar/50kvar capacitor
-
SFR-SVG 50kvar SVG integrated low voltage kvar power capacitor bank
-
Elecnova SFR-L series power factor correction intelligent low voltage power distribution equipment capacitor bank
-
Elecnova SFR-L series reactive power compensation intelligent low voltage super power capacitor
-
Elecnova SFR-L series power quality improvement 0.4KV compensation module power capacitor
Product Description
Product Description

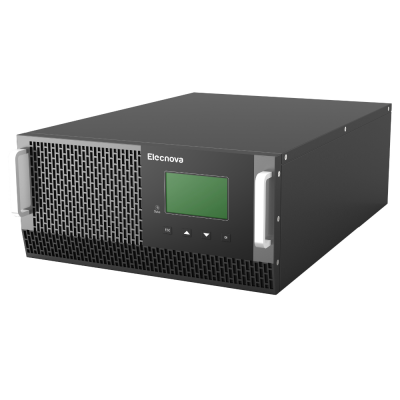

Product name: SFR-APF dynamic reactive power compensation active harmonic filter

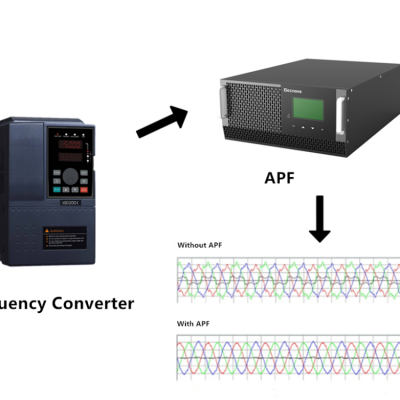

Active power filter is a new type of electronic device for dynamic filtering of harmonic wave and reactive power compensation. It can conduct real-time filtering and compensation to harmonic wave (both size and frequency are changed) and dynamic reactive power, and is used to overcome disadvantages of traditional harmonic suppression and reactive compensation methods of traditional filters,thus realizing systematic harmonic filtering function and reactive power compensation function. In addition, it is widely applied into power,metallurgy. petroleum, port, chemical and industrial and mining enterprises.
Technical Parameter
Function | Specification | ||
Measurement accuracy | Current | ≤1.0%(5%~120%In) | |
Voltage | ≤0.5%(80%~120%Un) | ||
Power | ≤2% | ||
Power factor | ≤0.01 | ||
Switching mode | Zero cross switching | ||
Compensation operation | Working voltage | AC380V±20%, distortion rate ≤5% | |
Comsumption | ≤5VA | ||
Max working current | 1.35 X In | ||
Switching inrush current | ≤3 X In | ||
Host protection | Over voltage | 430V(can be set) | |
Under voltage | 300V(can be set) | ||
Harmonic exceeding | 0%~100% | ||
Local protection | Over current | 0A~100A | |
Over temperature | 55 ℃ | ||
Unbalance | 50% | ||
Control setting | Control parameter | Target power factor, switching threshold, delay time etc. | |
Peripheral unit parameters | Current transformer ratio | ||
Network interface | Pluggable data line, internal network protocol | ||
Mechanical installation | Outline dimension | W-71.5mm L-370mm, height is a according to different capacity | |
Installation dimension | Distance of installation fixing holes:W-85mm*L-315MM | ||
Weight | ≤6.5kg | ||
Environment temperature | Working temperature | -15℃~45℃ | |
Storage temperature | -25℃~55℃ | ||
Altitude | ≤2000m | ||
Standard | GB/T15575-2008 | ||
Model Selection
Transformer Capacity(kVA) | Capacity and Quantity of Active Power Filter(Three-phase Four-wire) | Capacity and Quantity of Active Power Filter(Three-phase Three-wire) |
200 | SFR-APF4-50/0.4 | SFR-APF3-50/0.4 |
250/315 | SFR-APF4-50/0.4 | SFR-APF3-75/0.4 |
400 | SFR-APF4-75/0.4 | SFR-APF3-75/0.4 |
500/630 | SFR-APF4-75/0.4 | SFR-APF3-100/0.4 |
800 | SFR-APF4-100/0.4 | SFR-APF3-150/0.4 |
1000 | SFR-APF4-100/0.4 | SFR-APF3-200/0.4 |
1250 | SFR-APF4-150/0.4 | SFR-APF3-250/0.4 |
1600 | SFR-APF4-200/0.4 | SFR-APF3-300/0.4 |
2000 | SFR-APF4-200/0.4 | SFR-APF3-400/0.4 |
2500 | SFR-APF4-300/0.4 | SFR-APF3-250/0.4 x 2 |
