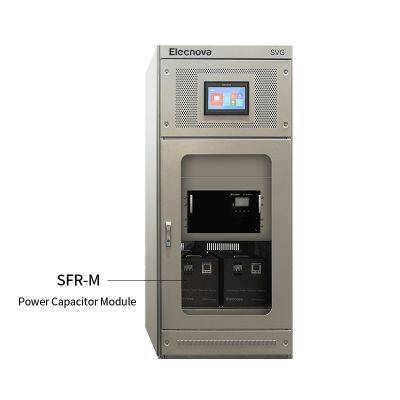

Product name：SFR-SVG reactive power compensation power quality improvement device

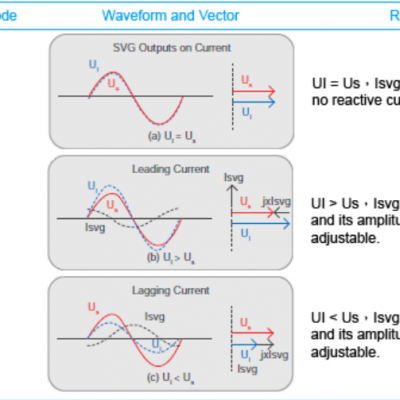

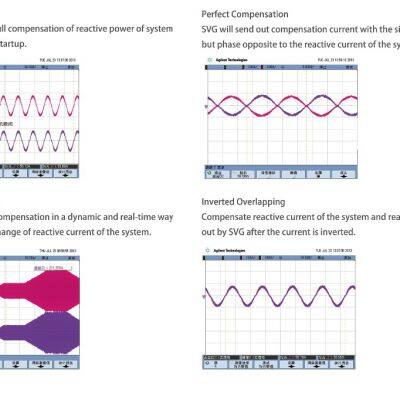

The principle of the SVG is very similar to that of Active Power Filter, as demonstrated in the picture below. When the load is generating inductive or capacitive current, it makes load current lagging or leading the voltage. SVG detects the phase angle difference and generates leading or lagging current into the grid, making the phase angle of current almost the same as that of voltage on the transformer side, which means fundamental power factor is unit. SFR-SVG is also capable of correcting load imbalance.

Application
Data centers
UPS systems
Renewable power generation
(e.g. photovoltaics and wind turbines)
Industrial production machines
Electrical welding systems
Plastic industry machinery
(e.g. extruders, injection molders)
Technical Parameter
Function
Technical parameters
Wall mounted SFR-SVG-(30~50)/B
Rack mounted SFR-SVG-(30~200)/M
Cabinet type SFR-SVG-(100~500)/G


Electrical
characteristics
Rated voltage(V)
AC380V±15%, AC690V±15%
Working frequency(Hz)
50Hz±5%
Rated compensation capacity(KVA)
30
50
30       50
75       100
150     200
100~500
Scope of reactive adjustment
Continuously adjustable from rated induced to rated capacitive
Response time
5ms
Loss of active power
<3% rated module power
Over-load capability
120%
Multi-set running mode
Parallel running
Mean time between failures
≥100,000hours


Local protection
Switching frequency
Average 10kHz
Control algorithm
compensation algorithm of screening vector of frequency domain possessing self-adaptation capability
Controller
Digital signal processor(DSP)
Communicationcapability
Adopting Modbus remote communication protocol,communication interface RS485/232 and CAN bus
Control connection
Optical fiber or electrical connection


Structural characteristics
W x H x D(mm)
510 x 218 x 694
340 x 629 x 709
Refer to capacity of cabinet
Protection grade
IP21 orcustomized according to the user' s demand
Color
RAL7035(light gray),
Cooling mode
Forced air cooling
Overall structure
Floor type
Installation mode
Indoor installation; optional fixing modes and optional cable incoming modes


Environmental conditions
Environmental temperature
-10~40℃
Storage temperature
-40~65℃
Relative humidity
5%-95%, no condensation
Altitude
≤1000m,1000-4000;according to national standard GB/T3859.2, for every increased 100m, the power is reduced by 1%
Electromagnetic
compatibility
Conforming to GB/T7250-2005
Project Case
Model Selection
Transformer Capacity(kVA)
Three-phase Four-wire
Three-phase Three-wire
200
SFR-SVG4-100/0.4 X 1
SFR-SVG3-100/0.4 X 1
250/315
SFR-SVG4-100/0.4 X 1
SFR-SVG3-100/0.4 X 1
400
SFR-SVG4-150/0.4 X 1
SFR-SVG3-200/0.4 X 1
500/630
SFR-SVG4-200/0.4 X 1
SFR-SVG3-300/0.4 X 1
800
SFR-SVG4-250/0.4 X 1
SFR-SVG3-400/0.4 X 1
1000
SFR-SVG4-300/0.4 X 1
SFR-SVG3-500/0.4 X 1
1250
SFR-SVG4-400/0.4 X 1
SFR-SVG3-300/0.4 X 2
1600
SFR-SVG4-250/0.4 X 2
SFR-SVG3-400/0.4 X 2
2000
SFR-SVG4-300/0.4 X 2
SFR-SVG3-500/0.4 X 2
2500
SFR-SVG4-400/0.4
SFR-SVG3-400/0.4 X 3
