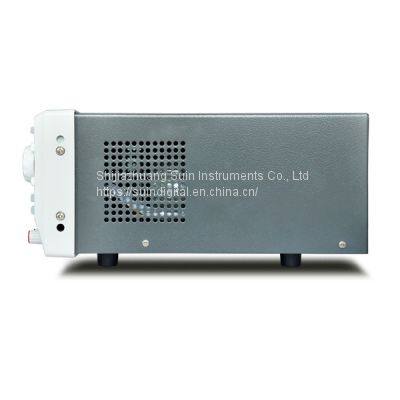

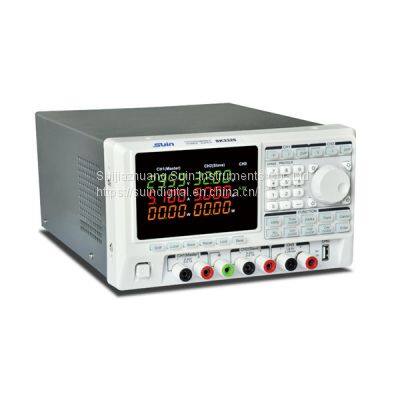

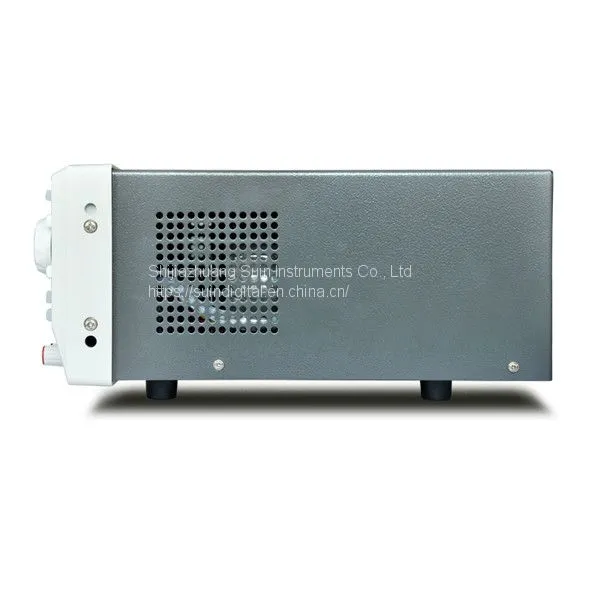

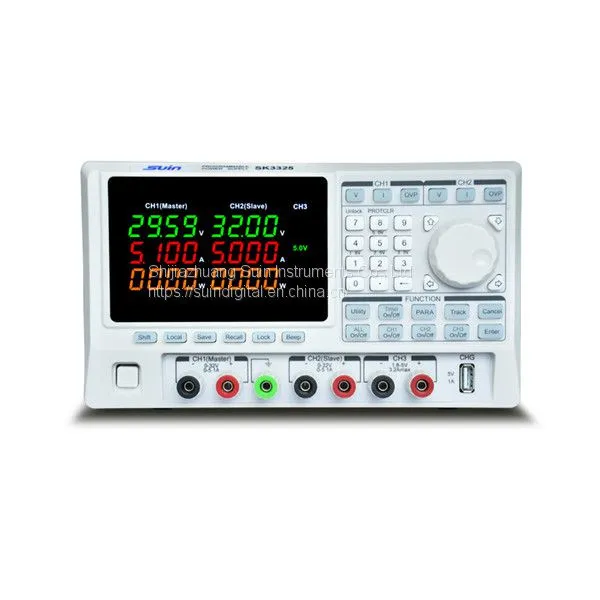

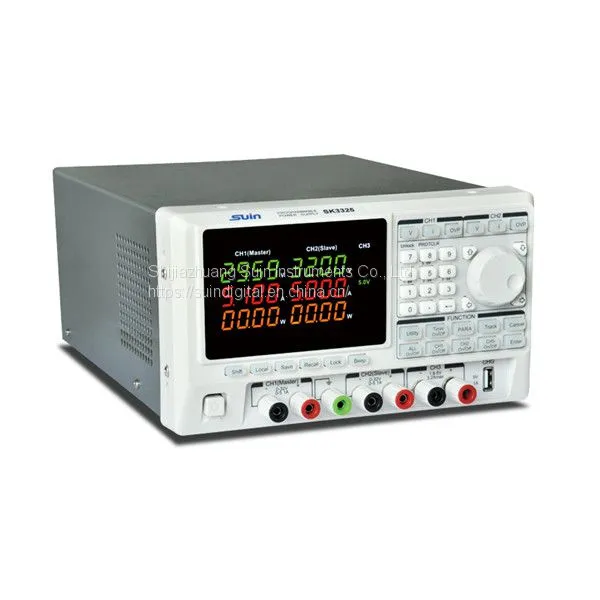

SK3323/3325/3503 Sk3323 Power Supply programmable linear DC power
Feature
The SK33XX series programmable linear DC power supplies have three independent outputs – two sets of adjustable voltage/current and a fixed set of selectable voltage1.8V, 2.5V, 3.3V and 5V. it has three available operation modes–independent, series and parallel modes. All make this series become a high performance-to-price ratio instrument.
Aplication
Military R&D, Quality detection, Circuit test, Test of industrial manufacture automatization,
Education and Technical Training, Test of electronic assemblies, Aging test
Design Feature
1. 3 independent outputs-two 32V or 50V /5.1A or 3.2A, one 1.8V, 2.5V, 3.3V, 5V/3.2A, maximum 342W.
2. 4 digit voltage and current display, minimum resolution-10mV, 1mA
3. Smart temperature controlled fan to reduce noise effectively.
4. Save/Recall 5 group system set-ups
5. Standard timing output
6. Comprehensive over-voltage protection
Specifiations
Model |
SK3323 |
SK3325 |
SK3503 |
||
Channel |
CH1 |
0~32V/ 0~3.2A |
0~32V /0~5.1A |
0~50V/ 0~3.2A |
|
CH2 |
0~32V/ 0~3.2A |
0~32V/ 0~5.1A |
0~50V/ 0~3.2A |
||
CH3 |
1.8V/2.5V/3.3V/5.0V switchable, 3.2A (Max. output) |
||||
Line Regulation |
Voltage |
CH1, CH2 |
≤1×10-4+2mV |
||
CH3 |
≤1×10-4+3mV |
||||
Current |
CH1, CH2 |
≤1×10-4+2mA |
|||
Load Regulation |
Voltage |
CH1 |
≤1×10-4+3mV |
≤1×10-4+8mV |
≤1×10-4+3mV |
CH2 | |||||
CH3 |
≤1×10-4+3mV |
||||
Current |
CH1, CH2 |
≤1×10-4+2mA |
|||
|
Programming/ Readback Accuracy |
Voltage |
CH1 |
≤±(0.5%+30mV) |
≤±(0.5%+60mV) |
|
CH2 | |||||
|
CH3 (no readback) |
≤±7% |
||||
Current |
CH1 |
≤±(0.5%+30mA) |
≤±(1%+60mA) |
≤±(0.5%+30mA) |
|
CH2 | |||||
|
CH3 (no readback) |
≥3.2A |
||||
Ripple and Noise |
Voltage |
CH1, CH2 |
≤1mVrms |
≤1.5mVrms |
|
CH3 |
≤1mVrms |
||||
Current |
CH1, CH2 |
≤3mArms |
≤5mArms |
≤3mArms |
|
|
Display resolution |
Voltage |
CH1, CH2 |
10mV |
||
Current |
CH1, CH2 |
1mA |
|||
Display Digits |
Voltage |
4 digits |
|||
Current |
4 digits |
||||
Other function |
Auto switch of serial and parallel |
||||
|
General Characteristics |
Rated Voltage |
AC220(1±10%)V |
|||
Rated Power |
500W 670VA |
600W 800VA |
|||
Rated Frequency |
50/60(1±5%)Hz |
||||
USB charging Interface |
5V 1A |
||||
Remote Interface |
USB, LAN (option) |
||||
Dimension |
226×140×303mm3 |
226×140×333mm3 |
|||
Weight |
8KGs |
9KGs |
|||
Standard Accessories
Power Cord:1pcs
CD( User's Guide):1pcs
Options
LAN
