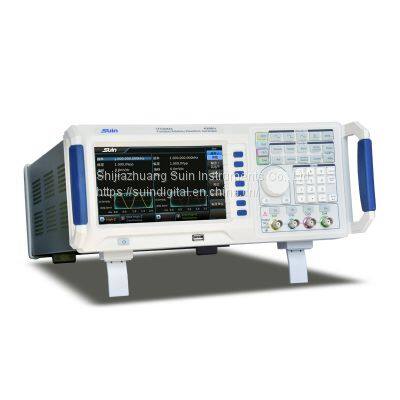

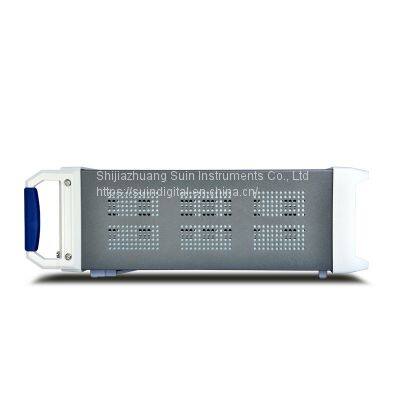

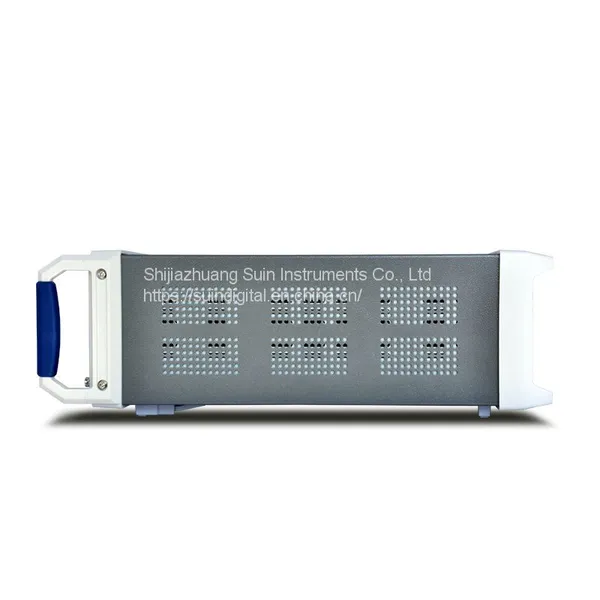

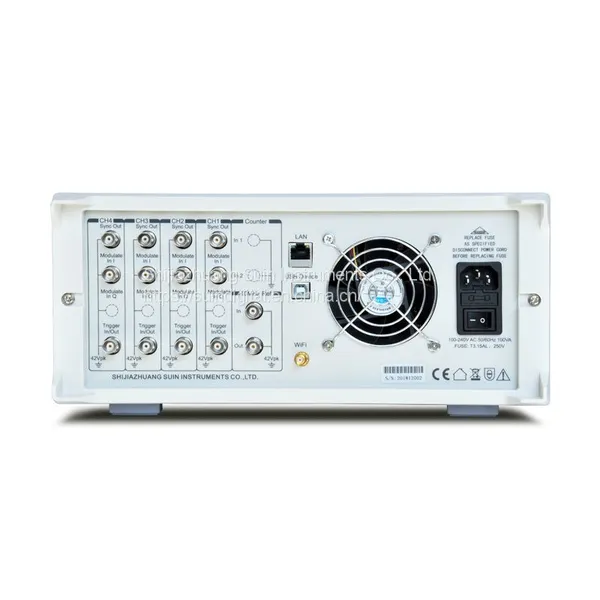

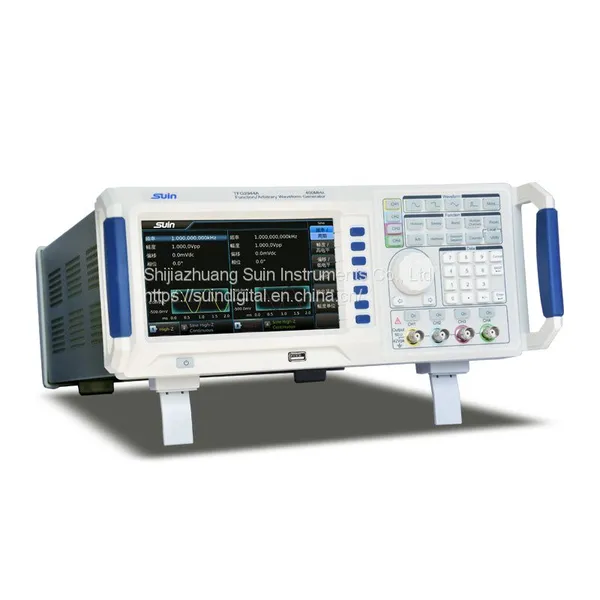

TFG2900A Series frequency generators for sale Economical Signal Generator

Channel

2

4

2

4

2

4

Frequency

Sine

1μHz~200MHz

1μHz~30MHz

1μHz~400MHz

Square

1μHz~120MHz

Pulse

1μHz~80MHz

Ramp

1μHz~6MHz

Others

1μHz~50MHz

Resolution

1μHz

Accuracy

±1ppm

Waveform

Type

165 kinds include: Sine, Square, Ramp, Pulse, Noise,DC, PRBS, bulit-in arbitrary waveforms and user-defined harmonic, etc.

Sample Rate

1.2GSa/s

Vertical Resolution

14 bits

Arbitrary

Sample

Rate

1uSa/s~200MSa/s

Length

2 ~ 32M points

Resolution

14 bits

Square

Rise/Fall

Time

≤2.5ns

Duty

Cycle

0.01％~99.99％

Pulse

Rise/Fall

Time

2.5ns ~1.2s

Width

4ns~(1000000s ~4ns)

Sine Spectral Purity

Total Distortion

≤0.2% (20Hz~20kHz, 20Vpp)

Phase Noise

<-140dBc @ 10MHz (0dBm, 10kHz offset)

Amplitude

Range

(50Ω

load)

f≤40MHz

1mVpp~10Vpp

f≤100MHz

1mVpp~5Vpp

f≤200MHz

1mVpp~2Vpp

f≤300MHz

1mVpp~1.5Vpp

f>300MHz

1mVpp~1Vpp

Accuracy

±(1％of setting＋1mVpp), (Sine 1kHz，0V offset，≥10mVpp)

Offset

Range

±5Vpk ac+dc (50Ω load)

Accuracy

±(1%of setting+2mV+0.5% of amplitude)(High-Z)

Modulation

Type

FM, AM, PM, PWM, Sum, FSK, 4FSK, NFSK, PSK, 4PSK, NPSK,ASK, OSK

Burst

Burst Count

1 to 100000000

General Characteristic

Power

AC 100~240V, 45~65Hz , <70VA(TFG29X2A), <80VA(TFG29X4A)

Dimension & Weight

363*154*327 mm, 7.0KGs, (TFG29X2A)

363*154*467 mm, 10.0KGs, (TFG29X4A)
