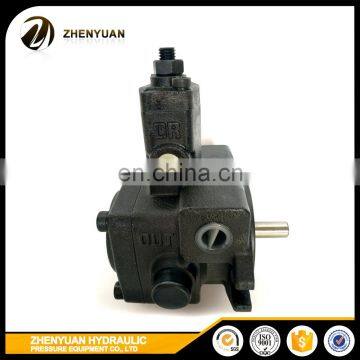

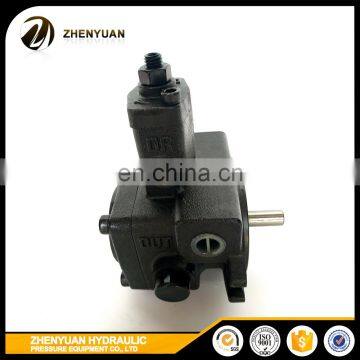

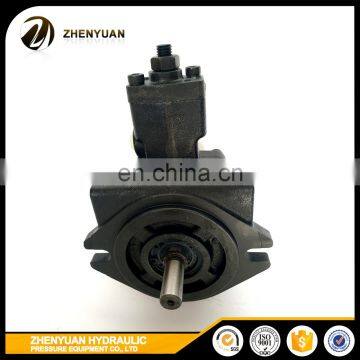

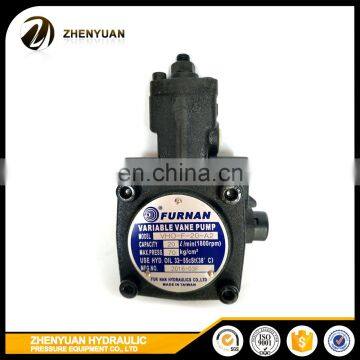

Hydraulic station original dedicated hydraulic pump VHO-F-20-A2

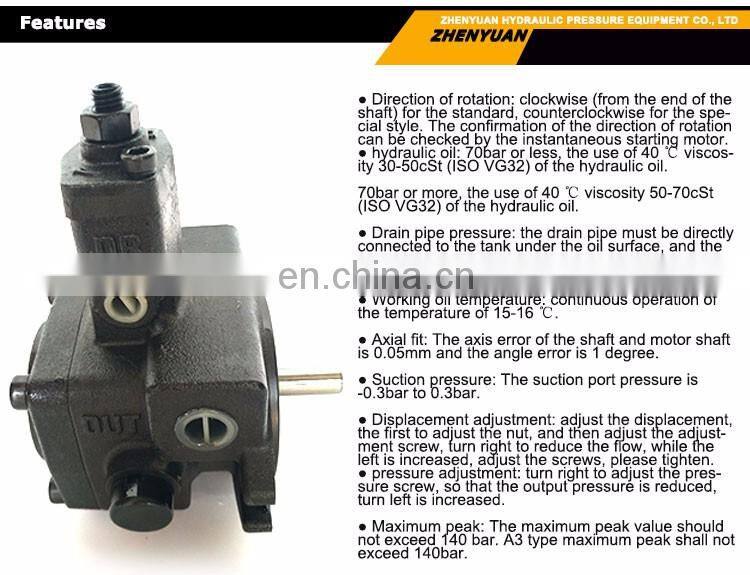

Low pressure variable capacity vane pump VHO series features:
1. Variable capacity of the leaves of the pump, the hydraulic circuit for the need for oil and design, it can improve the efficiency of the loop.
2. Reduce the Sao, reduce the oil temperature, so that the input of energy, into an effective work, to achieve the purpose of saving power.
3. Applicable grinding machine, automatic lathe, machine tool, shoe machinery and other special machine or single machine.

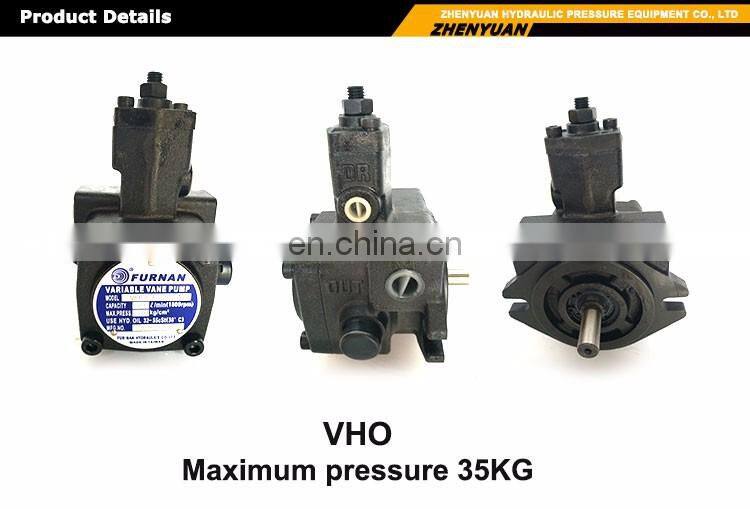

Low-voltage variable capacity vane pump VHO series performance table:
| MODEL |
MAX PRESSURE kg/cm 2 |
OUTPUT FLOW AT 3.5kg/ kg/cm 2 1800 r.p.m. l/min | PORTS SIZE | SPEED (r.p.m) | WEIIGHT(kg) | ||||
| OUT | IN | DR. | MIN | MAX |
FOOT TYPE |
FLANGE TYPE | |||
| VHO-08 | 70 | 08 | 3/8” | 1/2” | 1/4” | 900 | 1800 | 6 | 5 |
| VHO-12 | 70 | 12 | |||||||
| VHO-15 | 70 | 15 | |||||||
| VHO-20 | 70 | 20 | |||||||
Company Information
1.ZHENYUAN hydraulic equipment Co.,Ltd has more than 30years of experiments in manufacturing CNC
machines, and plastic injection moidingmachines.
2.ZHENYUAN company has quiet office enviroment and we have independent R&D ability.
3.ZHENYUAN commpany has efficient production department and strict quality control department to supply good quality products all over the world.
Our Advantages
1.Be of long standing factory built in 1986;
2.usa professional engineer and with 5 utility models and 4 patents;
3.GRH OEM and with 370 professinal employees, 4workshops total 22000 square meters;
4.208 pcs mechanical and test equipments:
5.100% factory testing and inspection personnal in accordance with international standards for the high-frequency sampling,to ensure the quality of products manufactured;
6.Become TEREX,JOHN DEERE,HYDAC,AGCO,EATON,NEW HOLLAND,GARONER DENVER and MAHINDRA supplier.
FAQ
Q:What Is Our Main Application?
A:1.Hydraulic system
2.Agriculture machine
3.Construction machina
4.Automobile
5.Local distributors
Q:What Is The Payment Terms?
A:Full order:30% as desposit, the balance before shipment:
Small order /sample ordre: full payment in advance:
Q:Can I Mark My Own Brand On The Pump?
A:Yes. Full order can mark your brand and code.
Q:What Is Our Main Export Market?
A:Europe (41.7%):Italy,Germany,England,France,Holland,Greece,Spain,Portugal,Swissland,Finland,Czekh,Russia,Poland
Asia(40.5%):China,Korea,Singapore,India,Turkey,Iran,Vietnam,Saudi Arabia,Syria,Isreal,Lebanon
Q:How Long Is Guarantee?
A:We give 1 year guarantee.
| Packaging details | Standard export wooden case or as your requirements |
| Delivery details | 1~3 days after payment |
