water pressure regulator for broiler cages chicken farm

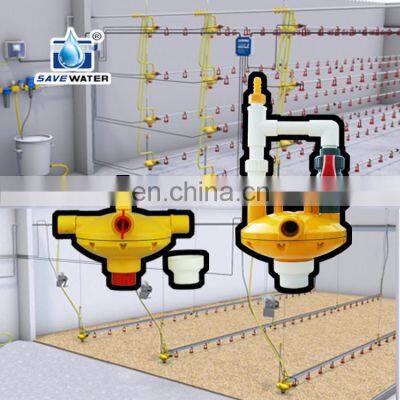

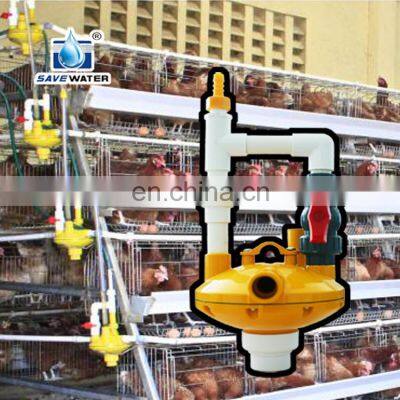

 Water Pressure Regulator for poultry farm

 Technical parameters

1.Work pressure: 0.1-0.4Mpa, can be applied to 160m chicken farm.

2.When the water pressure is 0.1Mpa, the discharge volume of the regulator is 25kg/min, and back flush is 40kg/min.

3.Suitable for drinking water pipe that its diameter is 25mm,26.6mm,32mm and square pipe 22mm*22mm.

4.For 1-7 days chicks, the water level of display pipe is 50-80mm; 8-15 day chicks, 80-200mm; more than 15 days, 200-250mm.

 Water line for floor raise chicken

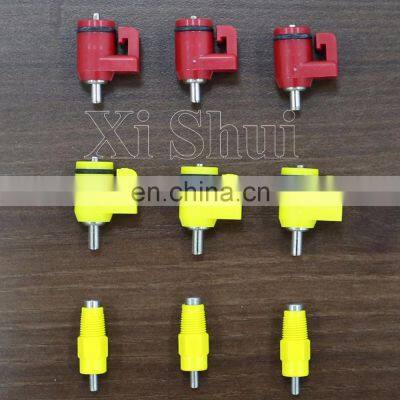

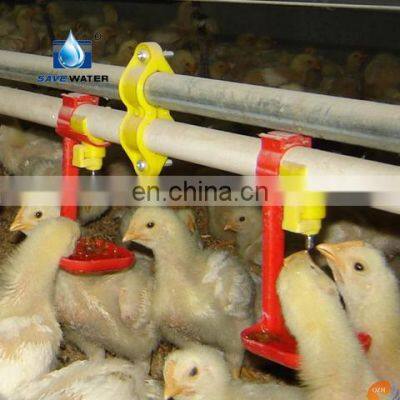

 poultry nipple drinker and drip cup
