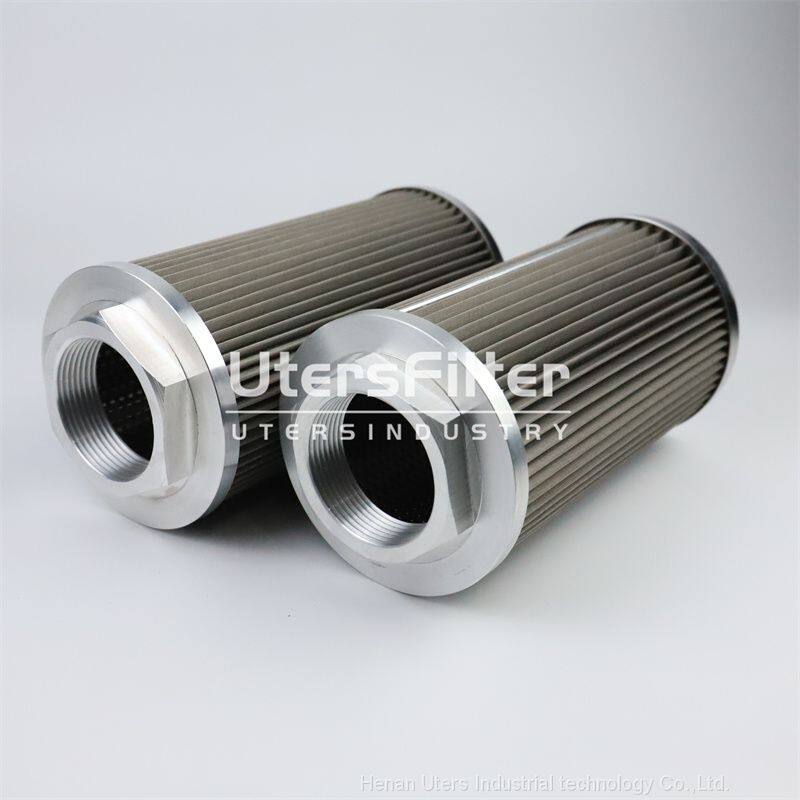

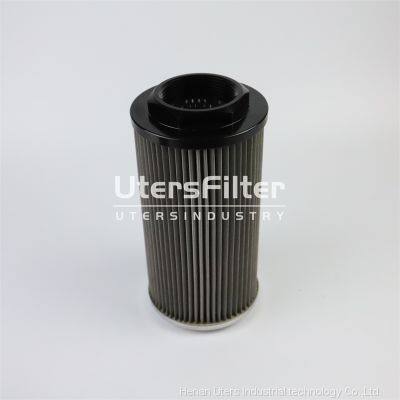

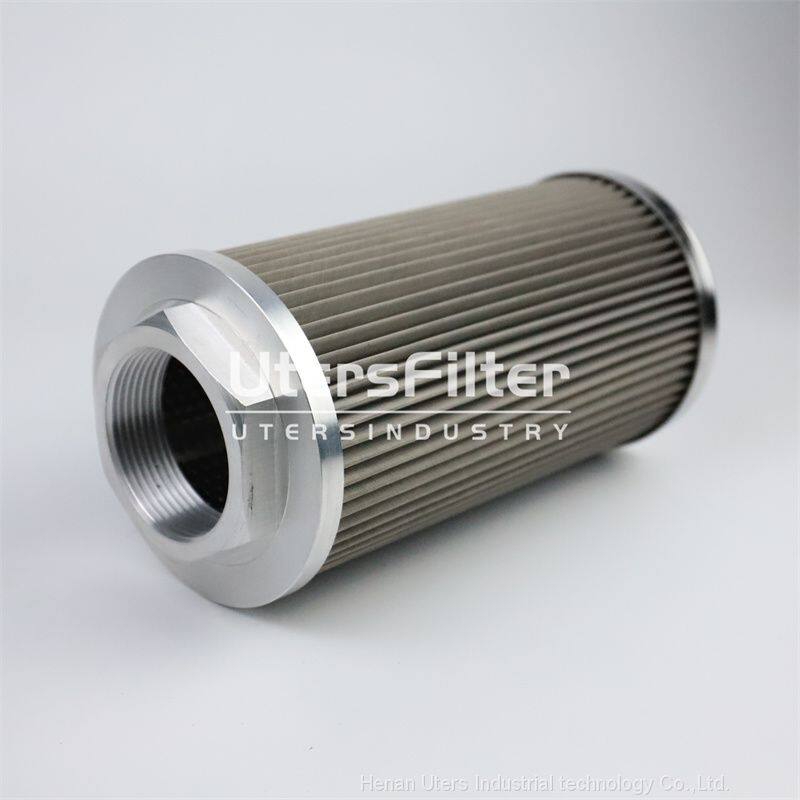

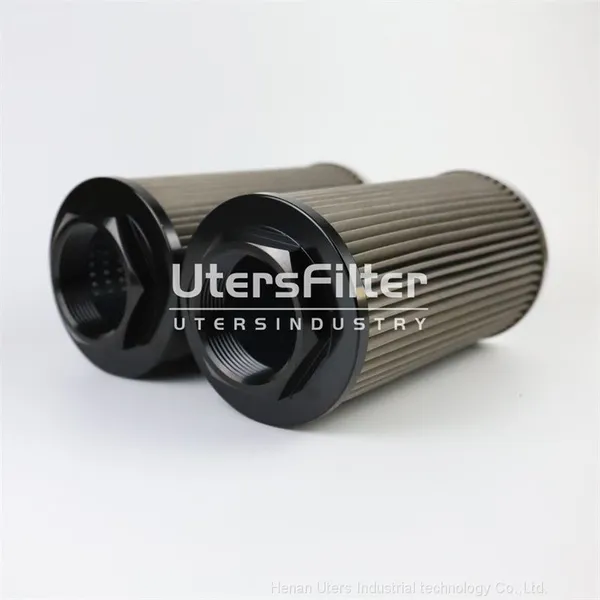

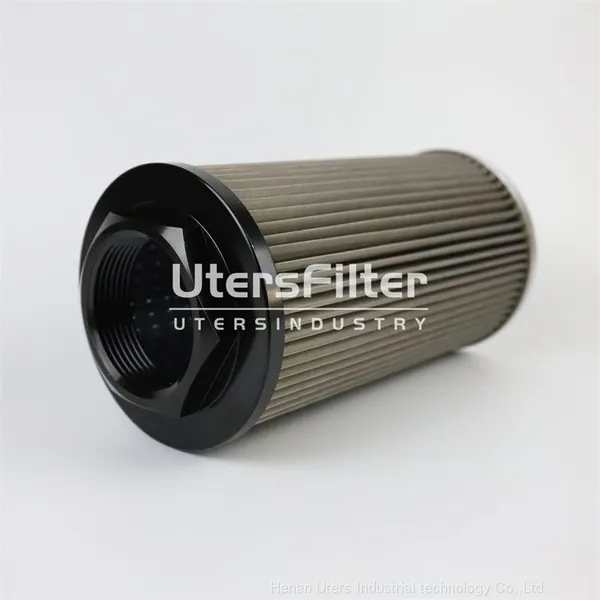

UTERS Replace HYDAC Stainless Steel Oil Suction Filter Element 0015S125W

Introduction

The stainless steel filter element has very good filtration performance, and can exert uniform surface filtration performance for the filtration particle size of 2-200um. The main filter material adopts multi-layer stainless steel sintered mesh with a filtration accuracy of 0.5-200um. Its external dimensions can be customized Request processing.

performance

It has a variety of porosity (28%-50%), pore size (4u-160u) and filtration accuracy (0.2um-100um). The pores are crisscrossed, high temperature resistance, and rapid cold and heat resistance. Corrosion resistance. Suitable for a variety of acid, alkali and other corrosive media. The stainless steel filter element is resistant to general acid, alkali and organic corrosion. It is especially suitable for sulfur-containing gas filtration. High strength and good toughness. Suitable for high pressure environments. Can be welded, Easy to load and unload. Stable hole shape and uniform distribution to ensure stable filtration performance. Good regeneration performance. After repeated cleaning and regeneration, the filtration performance is restored to more than 90%.

Main feature

1. Good filtration performance, uniform surface filtration performance for 2-200um filtration particle size;

2. Good corrosion resistance, heat resistance, pressure resistance and wear resistance; it can be washed repeatedly and has a long service life.

3. The stainless steel filter element has uniform and precise filtration accuracy;

4. The stainless steel filter element has a large flow per unit area;

5. The stainless steel filter element is suitable for low temperature and high temperature environment;

6. It can be used again after cleaning, no need to replace.

Application range

1. Petrochemical and oilfield pipeline filtration;

2. Fuel filtration for refueling equipment, engineering machinery and equipment;

3. Equipment filtration in water treatment industry;

4. Pharmaceutical and food processing fields;

5. It is suitable for pre-processing and post-processing systems in the electronics, petroleum, chemical, pharmaceutical, food and other industrial sectors. Further purify the water with low suspended impurities (less than 2~5mg/L).

Test standard

Filter burst resistance verification according to ISO 2941

The structural integrity of the filter element is in accordance with ISO 2943

Filter element compatibility verification according to ISO 2943

Filter filter characteristics according to ISO 4572

Filter pressure difference characteristics according to ISO 3968

Flow rate-differential pressure characteristic test according to ISO 3968
