High Quality Galvanized Concertina Razor Wire
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- Low price military galvanized concertina razor barbed tape
- Galvanized Concertina Razor Wire Razor Barbed Wire
- QYM High Quality Concertina Razor Wire Fence
- QYM Galvanized Military Concertina Razor Wire Barbed Tape
- Stainless Steel Concertina Razor Wire Blade Barbed Tape
- QYM Stainless Steel Barbed Tape Military Concertina Razor Wire
Product Description
1.The product parameters of bto cbt concertina razor wire/razor barbed wire
Reference Number | Thickness | Wire Dia. | Blade Length | Blade Width | Blade Spacing | |||||
BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 | |||||
BTO-15 | 0.5±0.05 | 2.5±0.1 | 15±1 | 15±1 | 33±1 | |||||
BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 | |||||
BTO-30 | 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 45±1 | |||||
CBT-25 | 0.5±0.05 | 2.5±0.1 | 25±1 | 16±1 | 40±1 | |||||
CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 | |||||
CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 | |||||
Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO) Standard materials are either galvanized or stainless steel.430/304/316 Standard packages products are shown in the tables above, special specifications are available on request. |
Concertina Razor Wire (Standard Use) | ||||||||
Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes | ||||
450mm | 33 | 7-8M | CBT-60.65 | Single coil | ||||
500mm | 56 | 12-13M | CBT-60.65 | Single coil | ||||
700mm | 56 | 13-14M | CBT-60.65 | Single coil | ||||
960mm | 56 | 14-15M | CBT-60.65 | Single coil | ||||
450mm | 56 | 8-9M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | ||||
500mm | 56 | 9-10M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | ||||
600mm | 56 | 10-11M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | ||||
600mm | 56 | 8-10M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | ||||
700mm | 56 | 10-12M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | ||||
800mm | 56 | 11-13M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | ||||
900mm | 56 | 12-14M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | ||||
960mm | 56 | 13-15M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | ||||
980mm | 56 | 14-16M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross typ |

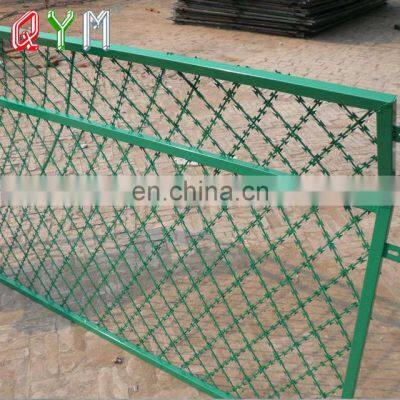

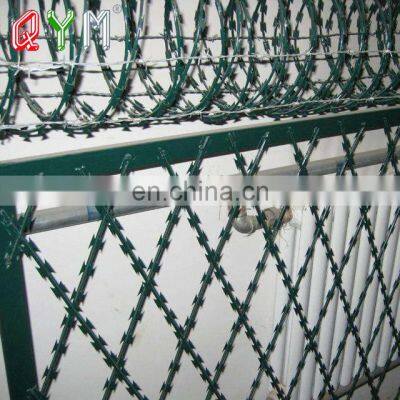

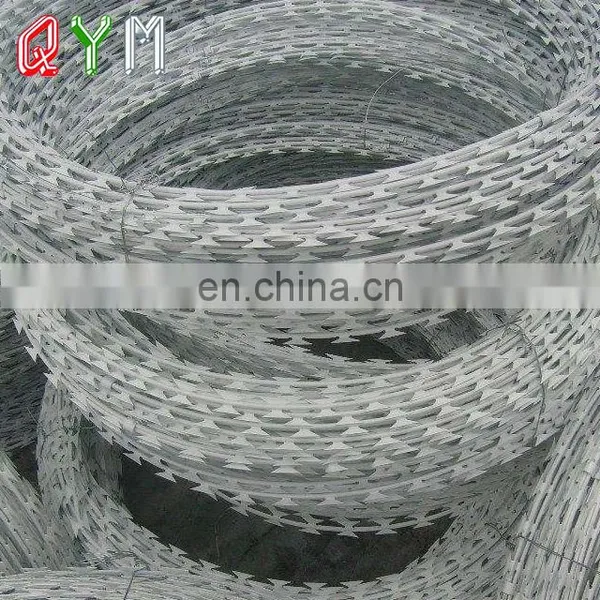

2.The product picture of bto cbt concertina razor wire/razor barbed wire
3.The advantage of bto cbt concertina razor wire/razor barbed wire
1>It is relatively inexpensive, but viciously effective. Razor Wire around the perimeter is enough to deter any would-be vandal, robber or saboteur.
2>Razor Wire is made of a corrosion resistant galvanized steel cutting ribbon wrapped around a core of galvanized spring steel wire.
3>It's impossible to cut without highly specialized tools, and even then it's a slow, dangerous job.
4>Concertina Razor Wire is a long lasting and very effective barrier technology, known and trusted by security professionals.
4. The details of bto cbt concertina razor wire/razor barbed wire
1>It is relatively inexpensive, but viciously effective. Razor Wire around the perimeter is enough to deter any would-be vandal, robber or saboteur.
2>Razor Wire is made of a corrosion resistant galvanized steel cutting ribbon wrapped around a core of galvanized spring steel wire.
3>It's impossible to cut without highly specialized tools, and even then it's a slow, dangerous job.
4>Concertina Razor Wire is a long lasting and very effective barrier technology, known and trusted by security professionals.
4. The details of bto cbt concertina razor wire/razor barbed wire
5.The use of concertina razor wire
1>military heavy land
2>prisons
3>government agencies
4>banks
5>residential community walls
6>private houses
7>villa walls, doors and windows
8>highways, railway guardrails
9>borders
