Galvanized Concertina Razor Wire Razor Barbed Wire
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2004
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
QYM High Quality Concertina Razor Wire FenceNegotiableMOQ: 1 -
QYM Galvanized Military Concertina Razor Wire Barbed TapeNegotiableMOQ: 1
-
Stainless Steel Concertina Razor Wire Blade Barbed TapeNegotiableMOQ: 1
-
QYM Stainless Steel Barbed Tape Military Concertina Razor WireNegotiableMOQ: 1
-
High Quality Airport Use BTO & CBT Type Concertina Razor WireNegotiableMOQ: 1
QYM-Concertina razor wire
When you need to get serious about security,Concertina Razor Wire is the answer.It is relatively inexpensive, but viciously effective. Razor Wire around the perimeter is enough to deter any would-be vandal, robber or saboteur.

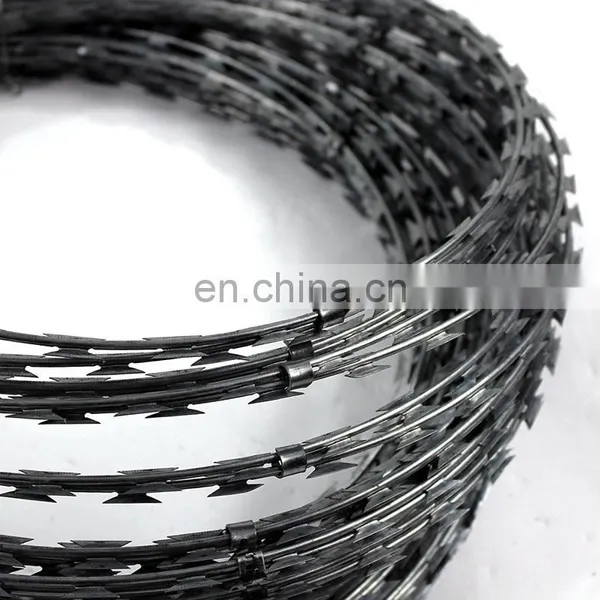

Razor Wire is made of a corrosion resistant galvanized steel cutting ribbon wrapped around a core of galvanized spring steel wire. It's impossible to cut without highly specialized tools, and even then it's a slow, dangerous job. Concertina Razor Wire is a long lasting and very effective barrier technology, known and trusted by security professionals.
Reference Number | Thickness | Wire Dia. | Blade Length | Blade Width | Blade Spacing | |||||
BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 | |||||
BTO-15 | 0.5±0.05 | 2.5±0.1 | 15±1 | 15±1 | 33±1 | |||||
BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 | |||||
BTO-30 | 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 45±1 | |||||
CBT-25 | 0.5±0.05 | 2.5±0.1 | 25±1 | 16±1 | 40±1 | |||||
CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 | |||||
CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 | |||||
Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO) Standard materials are either galvanized or stainless steel.430/304/316 Standard packages products are shown in the tables above, special specifications are available on request. | ||||||||||
Concertina Razor Wire (Standard Use) | ||||||||
Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes | ||||
450mm | 33 | 7-8M | CBT-60.65 | Single coil | ||||
500mm | 56 | 12-13M | CBT-60.65 | Single coil | ||||
700mm | 56 | 13-14M | CBT-60.65 | Single coil | ||||
960mm | 56 | 14-15M | CBT-60.65 | Single coil | ||||
450mm | 56 | 8-9M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | ||||
500mm | 56 | 9-10M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | ||||
600mm | 56 | 10-11M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | ||||
600mm | 56 | 8-10M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | ||||
700mm | 56 | 10-12M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | ||||
800mm | 56 | 11-13M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | ||||
900mm | 56 | 12-14M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | ||||
960mm | 56 | 13-15M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | ||||
980mm | 56 | 14-16M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross typ | ||||
Concertina Razor Wire is been widely used by many countries in military field, prisons, detention houses, government buildings and other national security facilities，not only military and national security applications, but also for cottage and society fence, and other ，as follow:
1.military heavy land
2.prisons
3.government agencies
4.banks
5.residential community walls
6.private houses
7.villa walls, doors and windows
8.highways, railway guardrails
9.borders
Hebei Qianye Metal Product Co.,Ltd is a company engaged in production and exportation of defense barrier,metal fence as well as other metal products.Its registered capital is RMB50,100,000(about USD7,400,000),covering a land area of 30,000 square meters.
Since its foundation in 2002,this company has been always adhering to the principle of uncompromising integrity and credibility first in doing things.Through years of production experience,we deeply understand that the qualified product is the factory basis for survival and development.In order to ensure consistency of product quality,our company introduced a fully automatic mesh panel welding equipment,automatic electrostatic spraying production line.as well as advanced welding machines,cutting machines,punching machines and bending machines.
HR is the assurance and competitive strength of the company’s long lasting progress and development.In order to create a wolf team,the company attaches great importance to personnel training and appointment of staff,and we provide abroad platform for our staff to display their own capability! We have first-class product design department responsible for product at each production process and first-class one-to-one sales staff to provide you with efficient services.
Hope we can have chance to get a be successful future!
Q: What's QYM's after service policy?
A: QYM's after service staff will contact you when you received the products, and ask for your comments on the products. Any issues on QYM's products, please send email or call us. QYM will service you timely with whole-heartedness and profession.
Q: What's the MOQ of QYM's product?
A: Different item has different MOQ. Normally 1X20FCL is preferred, LCL could be negotiable. Q: How can we get the quotation from QYM? A: Please send your inquiry to QYM's official email.
Q: How to be QYM's agent, wholeseller or distributor in my country?
A: Please send your company's basic information and application to my email adress. A feedback will be sent to you within 7 working days.
Q: What's the MOQ of QYM's product?
A: Different item has different MOQ. Normally 1X20FCL is preferred, LCL could be negotiable. Q: How can we get the quotation from QYM? A: Please send your inquiry to QYM's official email.
Q: How to be QYM's agent, wholeseller or distributor in my country?
A: Please send your company's basic information and application to my email adress. A feedback will be sent to you within 7 working days.
We making our own Brand QYM and has been exporting the Defence Barrier,Airport Fence,High Security Fence,Palisade Fence and other high grade protective fences to over 100 countries and regions in Europe,America,Africa,Middle East and Australia.From 2015 to 2019, our export of more than one million sets made us an apparent leader in the local barrier industry;and in 2009,we successfully took and completed the orders of concertina razor coils from UN,which perfectly proved our good reputation and our strong production capability.
