Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Kl Resistors Nichrome Wire Tophet A Round Ni200 Nichrome Wire Coil

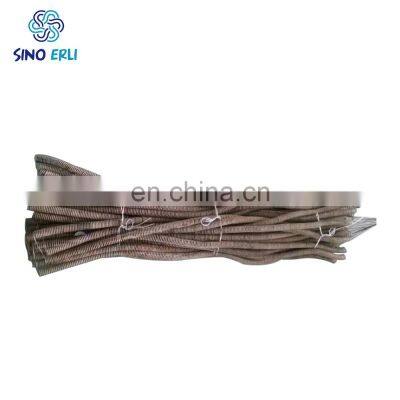

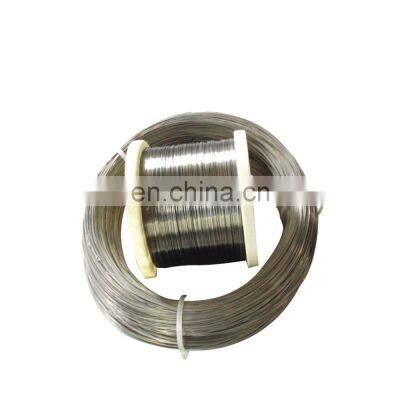

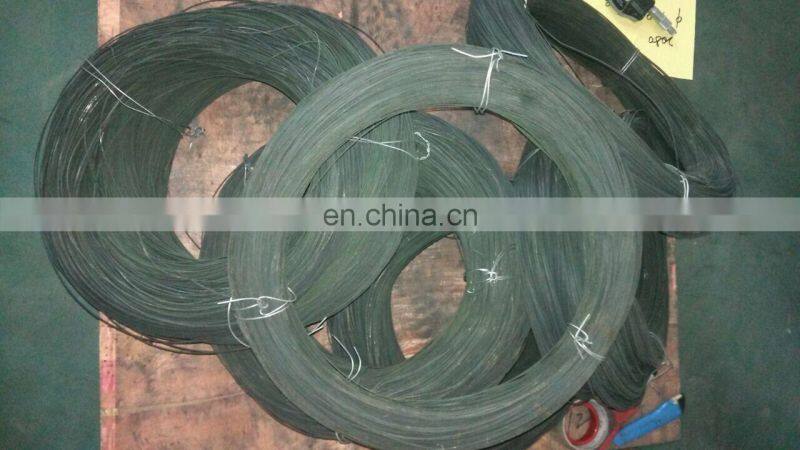

Kl Resistors Nichrome Wire Tophet A Round Ni200 Nichrome Wire Coil
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2011
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Aluchrom Y Heating Resistance Wire Heating Element Fecral Resistance Alloy WireNegotiableMOQ: 1 -
Cr20Ni80 Strip Nickel Chrome Strip Nichrome Alloy C Thermal Wire Nichrome Strip Nicr 80/20NegotiableMOQ: 1
-
12V Heating Wire Fecral Alloy 875 Heating Wire 0Cr25Al5 For SpringNegotiableMOQ: 1
-
Resistance Wire Gold/Blue Wire Heating Stove Resistance WireNegotiableMOQ: 1
-
Corrosion Resistant FeCrAl Alferon 901 Aluchrom 5 High Resistance FeCrAl Heating WiresNegotiableMOQ: 1
Product Description
Ni-Cr and Ni-Cr-Fe electric heating alloys
Nichrome electric heating alloys with high and stable resistance, corrosion resistance, surface oxidation resistance is good, a better under high temperature and seismic strength, good ductility, good workability and weldability.
It is widely used in industrial electric furnace, metallurgy, household appliances, machinery manufacturing, heating element and resistor varistor other material.
| Alloy Nomenclature Performance | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
| Main chemical composition (%) | Ni | Rest | Rest | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
| Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 | |
| Fe | ≤1.0 | ≤1.0 | Rest | Rest | Rest | |
| Max. continuous service temp. of element (ºC) | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Resistivity at 20ºC (μΩ·m) | 1.09 | 1.18 | 1.12 | 1 |
1.04 |
|
| Density (g/cm3) | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
| Thermal conductivity (KJ/m·h·ºC) | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coefficient of lines expansion (α×10-6/ºC) | 18 | 17 | 17 | 19 | 19 | |
| Melting point (approx.) (ºC) | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Elongation at rupture (%) | >20 | >20 | >20 | >20 | >20 | |
| Micrographic structure | austenite | austenite | austenite | austenite | austenite | |
| Magnetic properties | nonmagnetic | nonmagnetic | Weak magnetic | Weak magnetic | Weak magnetic | |
Round wire: diameter 0.03mm-10.0mm
Flat wire: thickness 0.2mm-1.0mm, width 0.08mm-40.0mm
