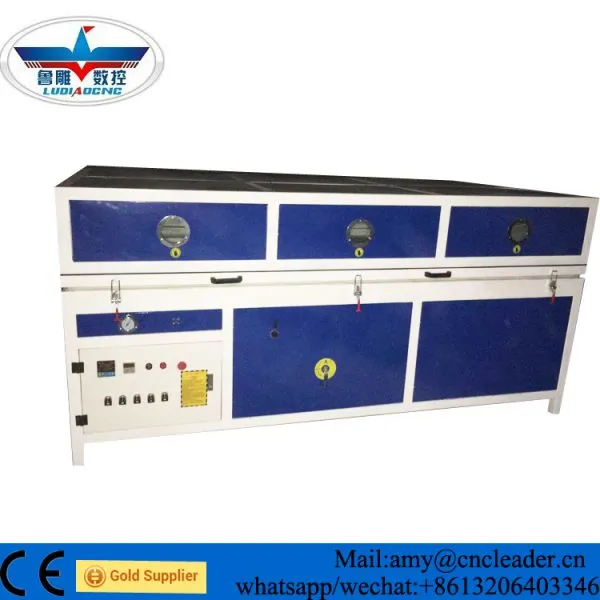

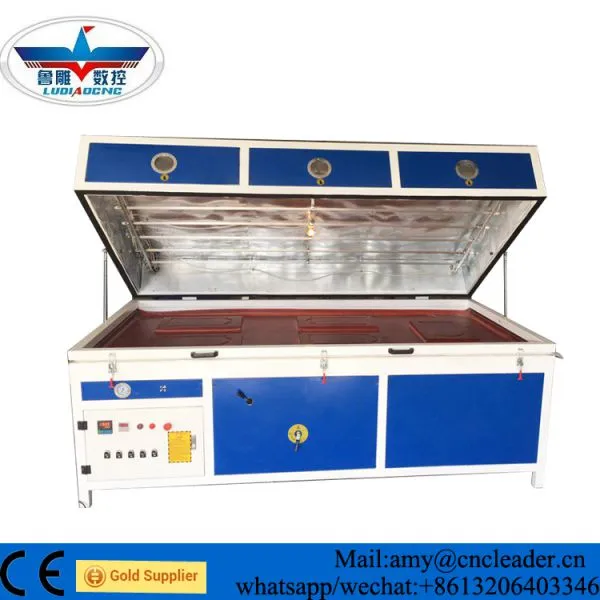

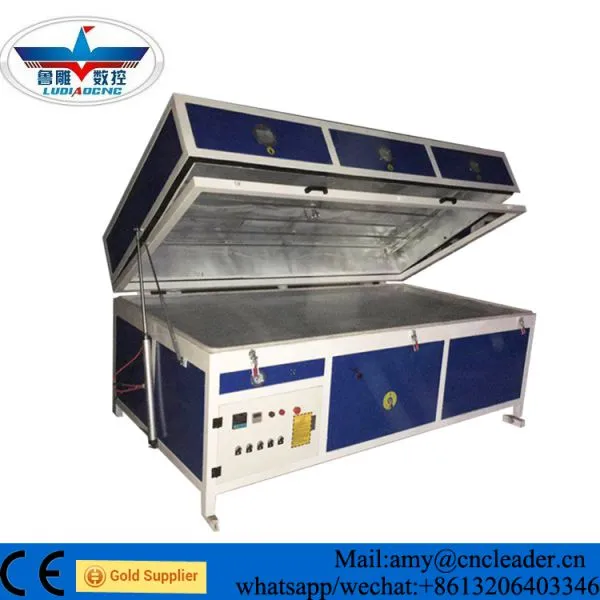

Automatic PVC film vacuum press machine for wood cabinet door vacuum membrane press machine for kitchen cabinet
Applicable covering material and the working materials
PVC film
MDF board, Plywood,OSB board, Mgo board and other wooden materials with breathable
It is applicable to cover furniture, sound box, cabinets, relief door, decorative panels and all kinds of baroque decorative surfaces with PVC films and natural veneer and hot stamping foils,
Introduction
1. This machine has 1 work table The electronic part is fully automatic and digitalize control.
2. The components are produced by famous domestic enterprises with good quality. The temperature is controlled by button so that the heating speed is adjustable and the temperature can be perfectly managed.

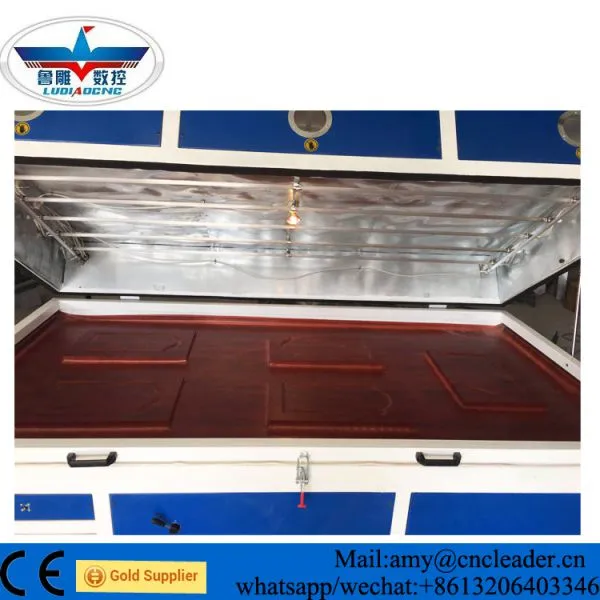

3. Use Quartz heating tube heating system and high quality heat preservation material, which can ensure evenly heating and energy saving.
4. With alarm system.when air sight or accidence happen, we can stop in time and the light inside can be visible for see the PVC film changing
Features:
1. Intelligent temperature controller,heating area adopt energy-gathered reflecting cover,save electricity.
2. Heating tubes are special customized from our factory,can run 24 hours continuously,service life 8000-10000mm,make sure heating material balanced,can’t partial rupture.
3. Heating box is controlled by cylinder,tight closed,beautiful appearance.easy to open and close.
4. Compact structure,easy to operation,takes up small area,no special requirement for factory and infrastructure.can begin production after short training for staff.
Specification
mode |
LD1325 |
function |
PVC pres |
Working table size |
1300*2500mm |
Heating area size |
1400*2600mm |
Max forming height |
80mm |
Max pressire |
-0.095 MPA |
Heating oven lift |
Auto Cylinder driving |
Fixed tool |
.PVC film press frame
|
Air pump |
40cube/h .Chinese brand |
heating power |
15KW |
air pump power |
2.2KW |
total power |
20KW |
voltate |
AC 380V/50HZ 3P(customized) |
|
L*W*H(mm) Working size |
3000*1600*1700mm |
|
Packing size (kg) weight |
3.2*1.8*1.9m |
About 800KG |
Application

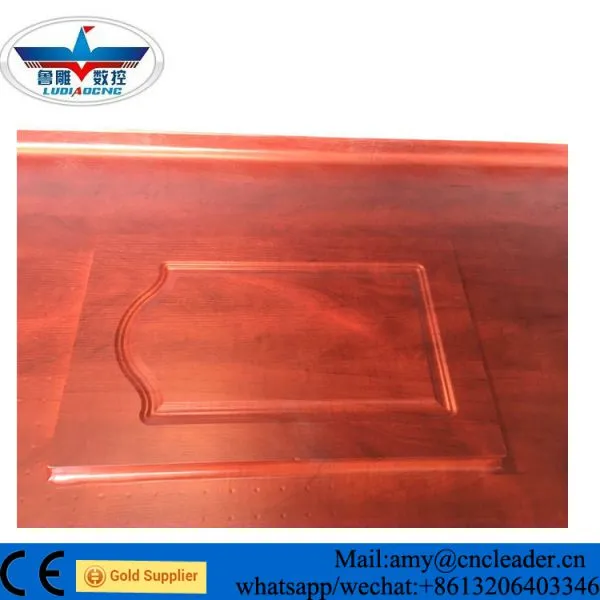

Wide application,material could be wood veneer,heat transfer film,PVC film and etc.It is a professional membrane machine in making PVC wood door,cabinet,other wood furniture.
After sale-service
1.24 hour technical support by email or calling
2.User-friendly english manual for machine using and maintaining if you visit us.we can also record a DV/VCD show you how to operate the machine free
3.Free replacement for the machine parts without the human factor during the warranty, (Customer pay the deliver cost)
