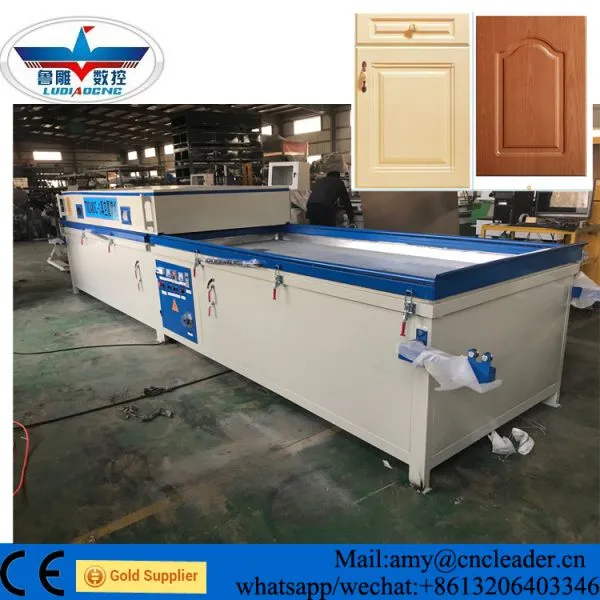

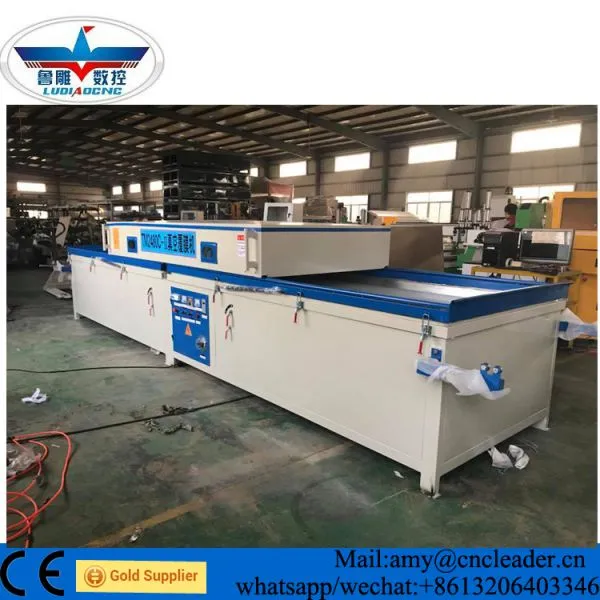

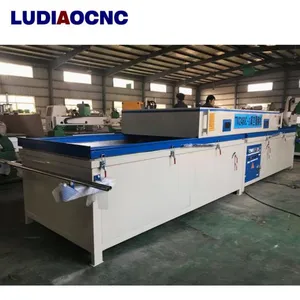

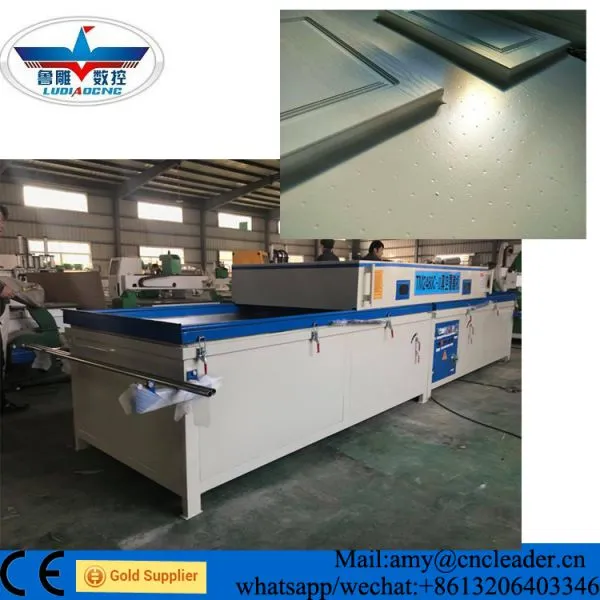

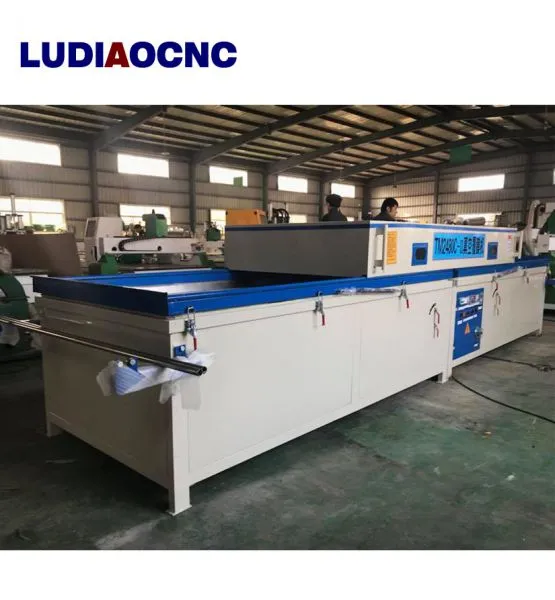

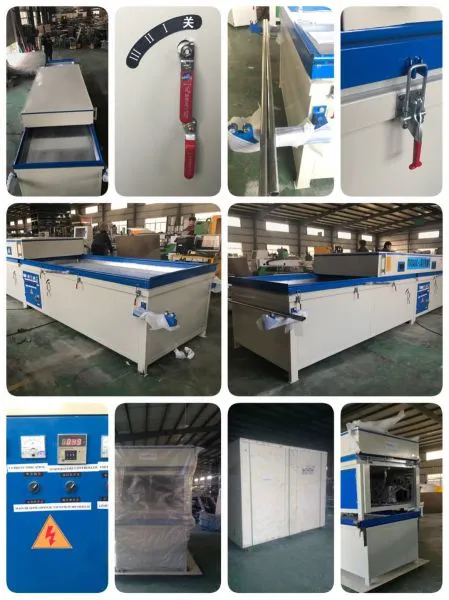

PVC hot press machine film vacuum laminating membrane press machine for kitchen cabinet door
Applicable covering material and the working materials
PVC film
MDF board, Plywood,OSB board, Mgo board and other wooden materials with breathable
It is applicable to cover furniture, sound box, cabinets, relief door, decorative panels and all kinds of baroque decorative surfaces with PVC films and natural veneer and hot stamping foils,
Features:

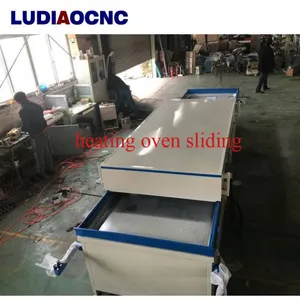

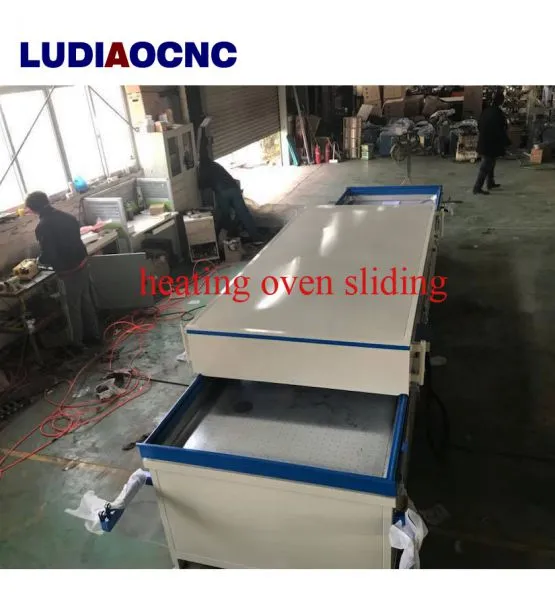

1. This machine has 2 work tables, Run is operated manually. The working plate is fixed while the heating cabinet is movable.
2.The components are produced by famous domestic enterprises with good quality. The temperature is controlled by button so that the heating speed is adjustable and the temperature can be perfectly managed.
3.Use Aluminum sheet heating system and high quality heat preservation material, which can ensure evenly heating and energy saving.
4.This machine uses integrated movement electromotor. It produces less noise and seldom breaks down.
Technical parameters:
1) External dimensions: 5500 x 1,400 x 1,400mm
2) Worktable dimensions: 2,500 x 1300x 50mm
3) Max. processing height: 80mm
4) PVC thickness:0.1-0.5mm;
5)Max vacuum press:-0.1Mpa;
6) Air pump:2.2KW
6) Total power: 15kW
7) Actual power:5kW
8)Machine weight: 1200kg
9)Package:Standard export wooden box
10)Packing size:2.9*1.8*2.25m
11)Gross weight:1300Kg
12)Warranty:One year
13)Delivery time:Within 15working days
14)Payment:TT
After sale-service
1.24 hour technical support by email or calling
2.User-friendly english manual for machine using and maintaining if you visit us.we can also record a DV/VCD show you how to operate the machine free
3.Free replacement for the machine parts without the human factor during the warranty, (Customer pay the deliver cost)
