PLC WAFER

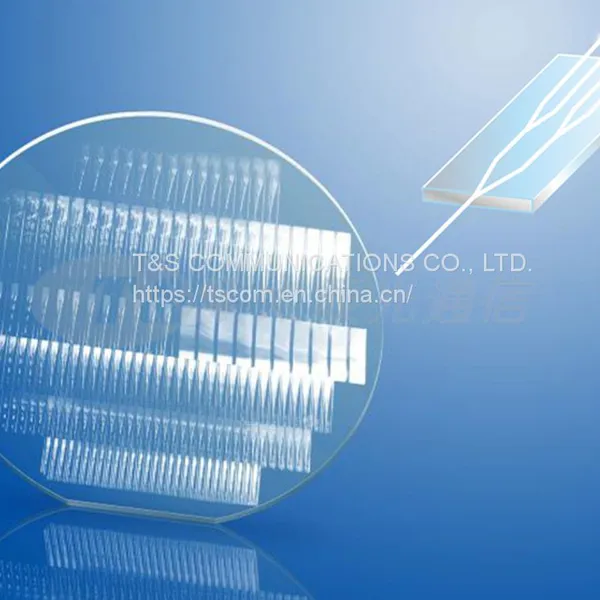

As an experienced plc splitter factory, T&S offers PLC splitter wafers as well. Based on Planar Lightwave Circuit technologies, PLC splitter wafers are produced on the quartz substrate through a series of processes including CVD deposition, photo-masking, etching, etc. PLC splitter wafers can be designed for 1x2, 1x4, 1x8, 1x16, 1x32, 1x64 and 2xN. Splitter chips with high yield, quality and reliability, are made of PLC wafers through dicing and polishing.
Specifications of PLC Wafer
Optical SpecificationsWafer Specifications
Parameter Class Unit 1x2 1x4 1x8 1x16 1x32 1x64
Operating Wavelength - nm 1260-1650
Insertion Loss P dB 3.6 6.7 9.8 13.2 16.2 19.8
PDL P dB 0.15 0.15 0.2 0.25 0.25 0.3
Uniformity P dB 0.5 0.5 0.6 0.8 1.0 1.2
Return Loss - dB - ≥55
Directivity - dB - ≥55
Operating Temperature - ℃ - -40~+85
Storage Temperature - ℃ - -40~+85
TS Communication is a professional fiber optic accessories suppliers, we provide plc splitter 1x32, 1x16 plc splitter and etc. Want to know more? Please contact us.
