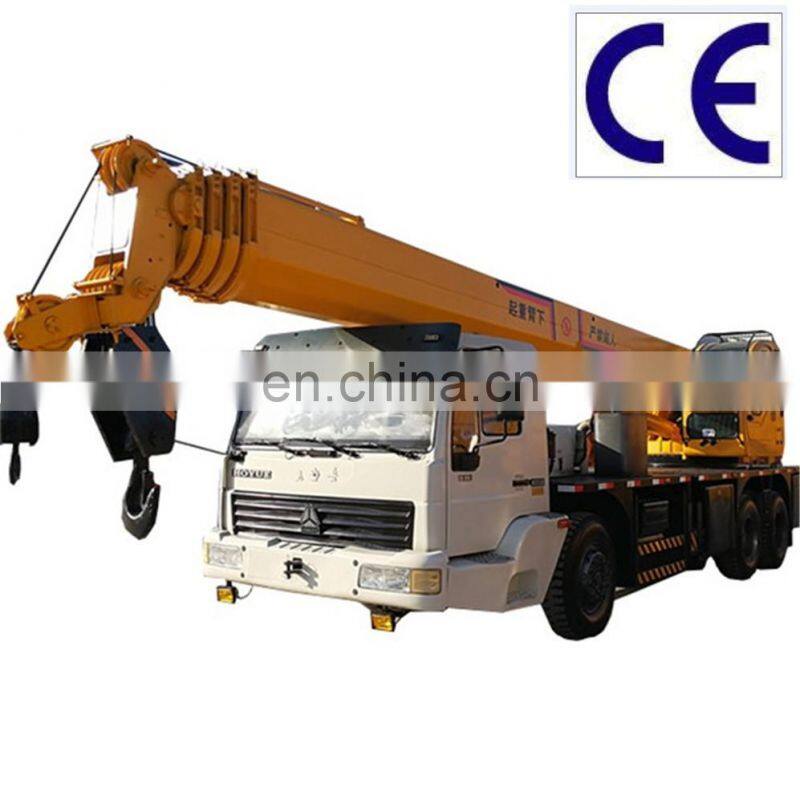

Help Center40m Telescopic Arm 25 Ton Truck With Crane for Sale
Related Products
-
High Torque Used 12 Ton Truck Mounted Crane for Sale India PriceNegotiableMOQ: 1 -
10*4 25 Ton Crane Truck 16 Ton Truck Crane SizesNegotiableMOQ: 1
-
With T-King Used Boom Truck Mounted Crane PriceNegotiableMOQ: 1
-
12 Ton Truck Mounted Crane Truck Mounted Crane for Sale India Price Truck Crane for SellNegotiableMOQ: 1
-
Terex Self Load Truck With Crane in IndiaNegotiableMOQ: 1
The optimizing layout of the machine makes the stress of the main bearing carriers more reasonable, and the lifting performance is higher than the products with the same tonnage.
• Apply the mature jib technique which integrates plug-in boom head, embedded boom block, and special telescoping mechanism, which makes the jib more stable and reliable.
• Optimize the stress design. Adopt the box-type outriggers which have larger span, stronger rigidity, and better stability.
| 25T | |
| Jining | Qinchang QCY25 crane parameters |
| Model | QCY25 |
| Chassis | Chassis for heavy truck crane |
| Maximum rated lifting capacity | 25T |
| Engine power | 196kw |
| Axle | Front single bridge Rear double bridge |
| Tire | 1100-20 |
| Wheelbase | 4.3 meters 5.7 meters |
| Track | 2.5 meters |
| Brake | Air brake |
| Driving direction | power steering |
| Basic arm length | 10 meters |
| Number of booms | 4 knots |
| Longest arm length | 34 meters |
| Maximum lifting height | 34 meters (from the ground) |
| Maximum elevation angle of the boom | 75 degrees |
| The minimum elevation angle of the boom | 0.5 degrees |
| Maximum turning speed (no load) | 2.4r/min |
| Minimum turning speed (full load) | 0.3 r/min |
| Variation time: full arm | 85 s |
| Full arm | 46 s |
| Stretching time: full arm | 92s |
| Full arm | 75s |
| Outrigger | 5 full hydraulic legs |
| Outrigger longitudinal span (front and rear) | 5.55 m |
| Outrigger lateral span (side) | 6.1 m |
| Length, width and height | 13.5 meters 2.5 meters 3.5 meters |
| Double winch | double hydraulic winch hoist |
1. Leading performance: the boom length in full extension is 28m, the performance leading in 5%. The grade ability is 40%, which make the machine have good road adaptability.
2. The unique U boom and plug-in boom head make the load-carrying capacity more balanced, and lift more smoothly.
3. The unique stretch and retract technique prevents the misoperation; the stretch and retract of the boom is safer and more reliable.
4. The control system is optimized by 8 patents; lifting, rotation, and luffing are easy and reliable.
5.Six unique technologies supply the quality assurance, and make the products keep a high value.
6. The innovative jib system adopts embedded block, plug-in boom head and octagon jib, which has excellent lifting performance and safe and reliable lifting work.
7. The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
8. Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
9. Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
10.The humanity design makes the cab and control cab more spacious, and easy to operate.
1. Short delivery time: We are a manufacturer with many advanced and new machine. It ensures we have the ability to carry out the production schedule for punctual delivery.
2. More than 10 years production experience in this industry.
3. All our machine have 1 years warranty.
4.We can accept 1 sets as the first order
5.We can stick customer’s brand on the products if you have request.
