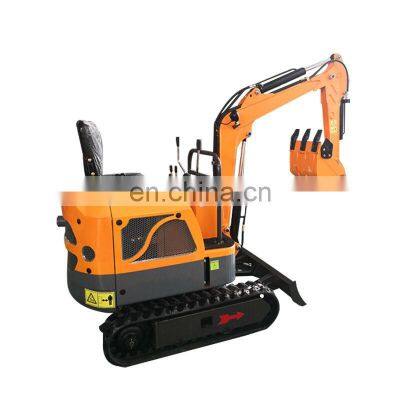

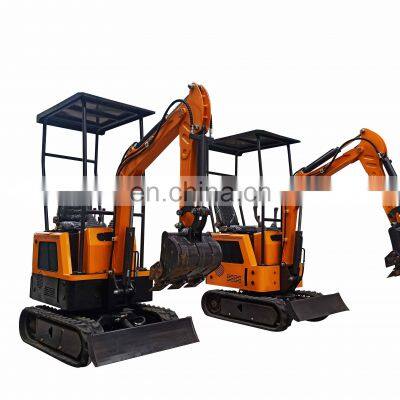

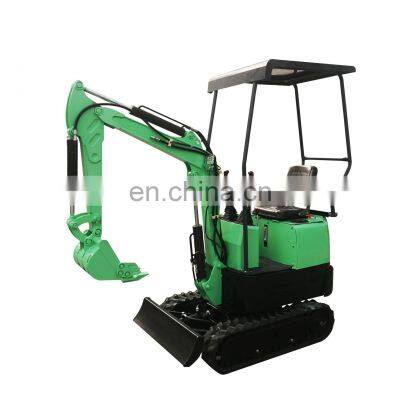

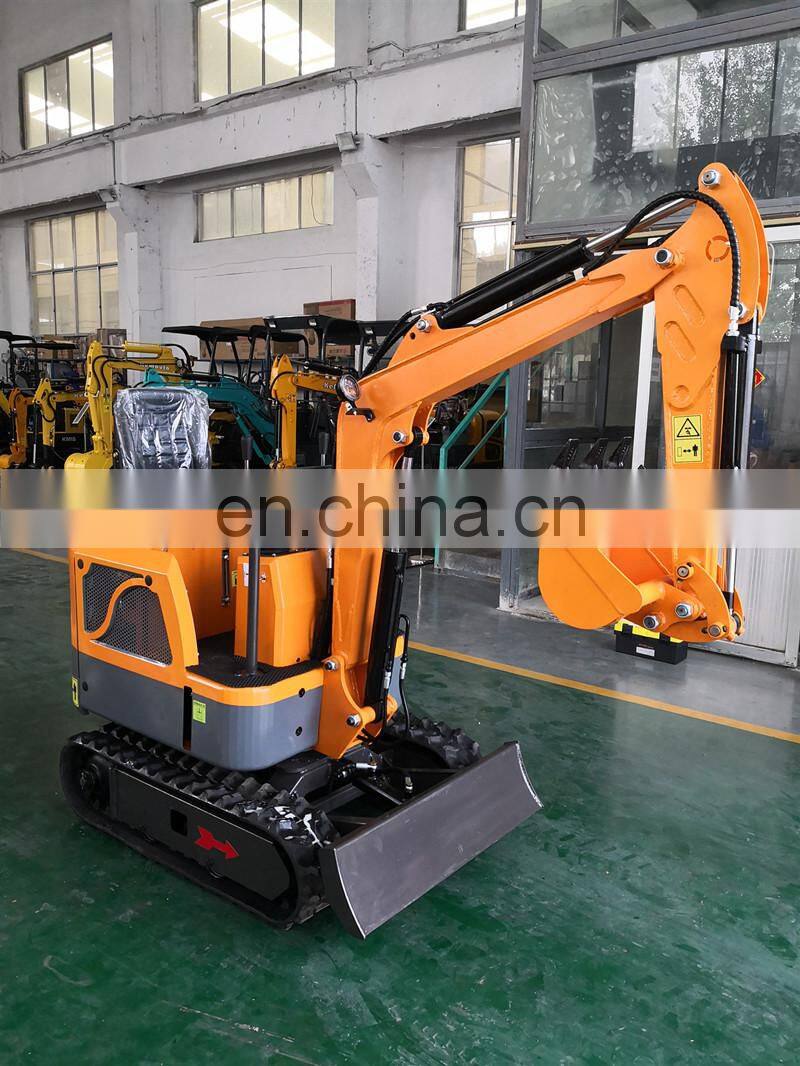

Factory Directly Supply with Good Quality Micro Excavator

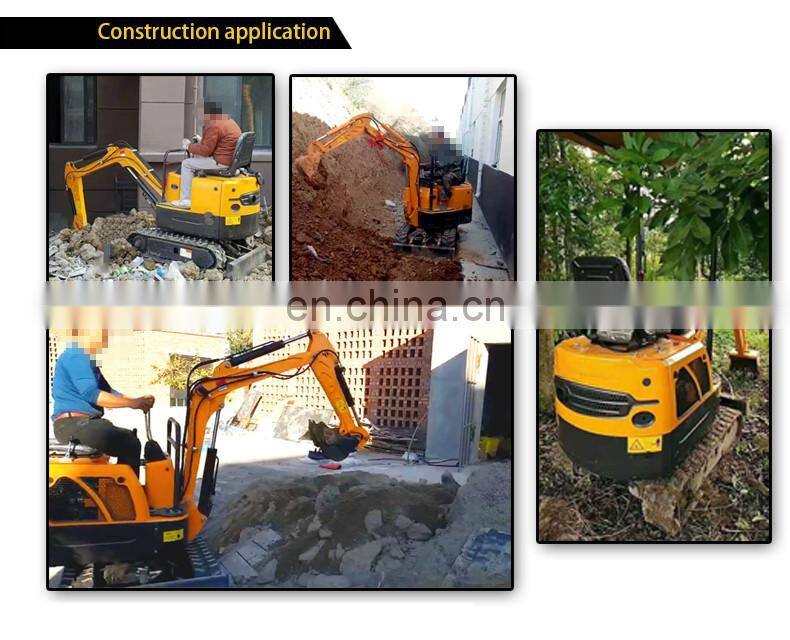

1. Product Applications
Suitable for vegetable greenhouses is loose, the landscaping of the municipal department, the orchard nursery planting trees, the concrete pavement, the gravel mixing, the construction of the narrow space, the crawler excavator can not travel on the road, but it can be muddy Local work, no traps, machinery is relatively large, and efficiency is higher than the wheel type.
| Items | Data |
| Operating Weight | 980kg |
| Digging bucket capacity | 0.025cbm |
| Bucket width | 380mm |
| Engine | Briggs & StrattonXR2100 |
| Rated power | 9.3 kw/ 3600r/min |
| Displacement | 0.211 L |
| Max. digging force | 400 kg |
| Bore stroke | 70x55 |
| Displacement | 6.8ml/r |
| Travel speed | 1.5km/h |
| Overall dimension( LxWxH) | 2770x896x1490 mm |
| Total length of track | 1230mm |
| Platform ground clearance | 380 mm |
| Platform back turning radius | 784 mm |
| Chassis width | 896 mm |
| Track width | 130 mm |
| Chassis ground clearance | 132 mm |
| Track height | 320 mm |
| Max. Digging depth | 1650 mm |
| Max. Digging height | 2610 mm |
| Max. Dumping height | 1850 mm |
Q: Are u the manufacturer ?
A: Yes, we are factory.
Q: What's your MOQ of this term?
A: 1 set.
Q: How long is your warranty?
A: Guarantee for 12 mounths starting from products arriving the destination port.
Q: Could you stick customers brand on the products?
A: Of course, we welcome the OEM orders.
Q: What's your delivery time?
A: Delivery timely about 7 days after receiving the deposit.
