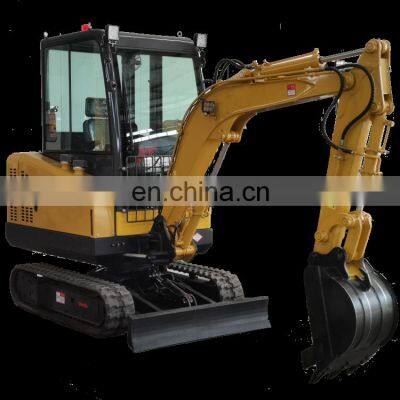

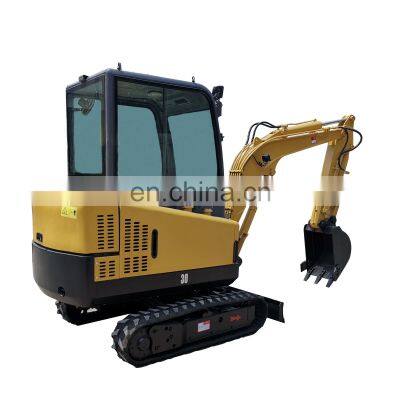

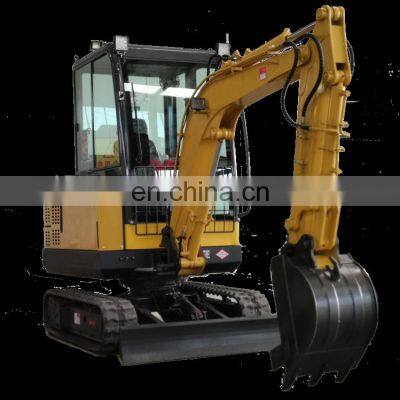

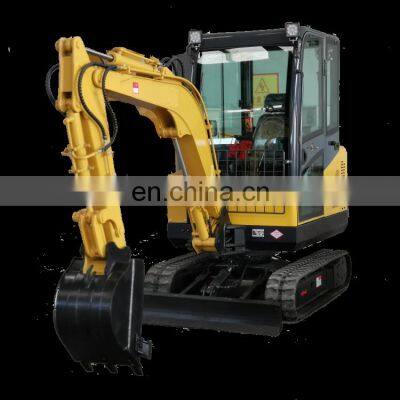

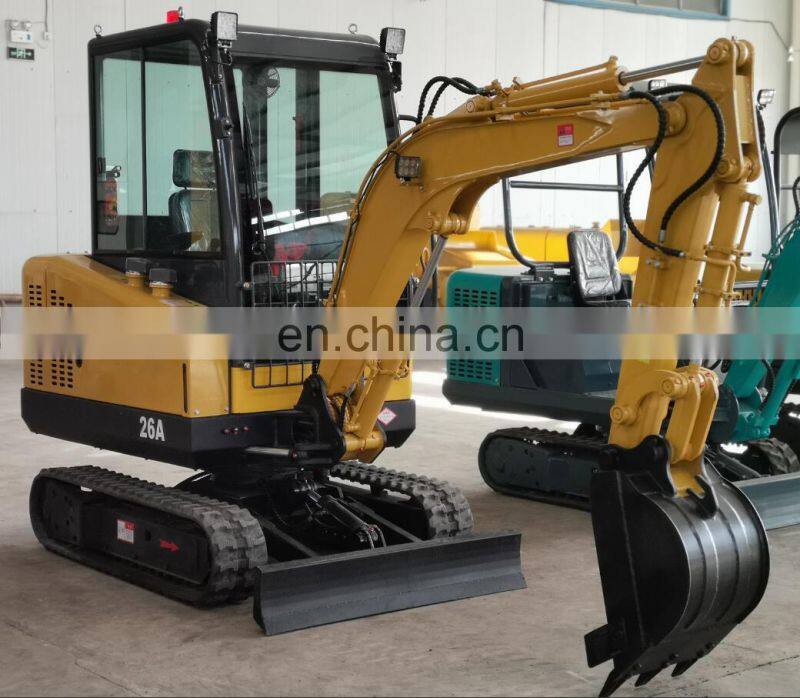

3 Ton Hydraulic Mini Digger Agricultural Excavator for Sale
1. Optional Yanmar (EPA certified) or Changchai or Laidong engines, to meet environmental protection, costcontrol and other needs.
2. It adopts the first-line brand high-precision 8-way multi-way valve. The valve core has its own buffer functionand is controlled by ECU computer, which makes the action more flexible.
3. 1.3tons, 1.5 tons, 1.6 tons, 1.8 tons, 2 tons, 3 tons 3.5tons can be equipped with high precision pilot controlsystem.
4. Adopting Japan NACHI American ETON hydraulic motor, small size, light weight, high eficiency and longservice life.
5. Use Shimadzu gear pump I DOOSAN load sensitive variable displacement piston pump for continuousoperation for up to 8 hours.

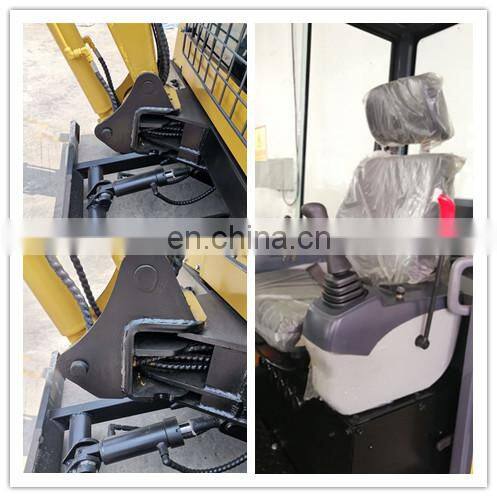

6. The boom can swing from side to side with high flexibility to meet the needs of small space operations.
7. Optional with tail or no-tail to meet the construction needs under different conditions.

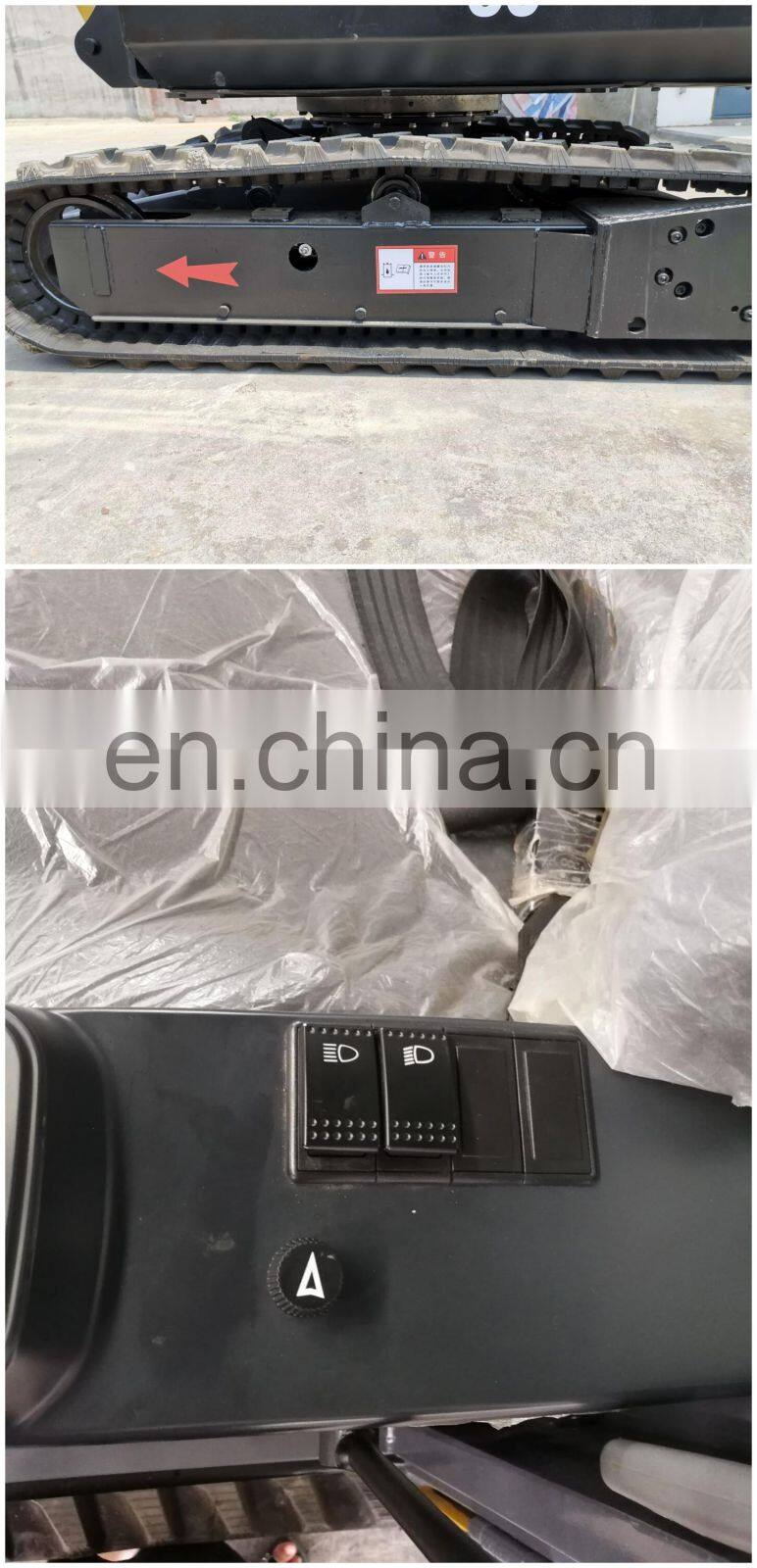

8. Strengthen the engineering rubber track, built-in steel core, wear-resistant and durable.
9. Made of German Continental brand tubring, made of natural rubber. The interior uses dense steel wire to increase the service life.
Name |
3 ton |
3.6 ton |
Operating Weight (kg) |
3000 |
3600 |
Bucket Capacity (m3) |
0.2 |
0.26 |
Bucket Width (mm) |
550 |
600 |
Boom Length (mm) |
2200 |
2300 |
Arm Length (mm) |
1100 |
1290 |
Travel Speed (Km/h) |
2.2 |
2.7/4.6 |
Grade Ability (%) |
35 |
35 |
Bucket digging force (Kg) |
5500 |
5560 |
Arm digging force (Kg) |
4800 |
5560 |
maximum drawbar pull (Kg) |
2000 |
2300 |
Modell |
ZN390Q |
4L22B |
Rated Power (p/Kw/rpm) |
32/20/2200 |
45/26.5/2350 |
Max.Torque (N.m/rpm) |
125 |
140 |
Displacement |
1.813 |
2.156 |
Cylinders |
3 |
4 |
Cooling type |
Water cooling engine |
Water cooling engine |
Maximum working pressure (Mpa) |
28 |
28 |
Fuel Tank (L) |
55 |
60 |
Hydraulic Oil tank (L) |
70 |
75 |
Engine Oil (L) |
9 |
11 |
Coolant (L) |
- |
- |
Fuel consumption (L/h) |
1.5-1.8 |
1.8-2.5 |
Overall Length (mm) |
4082 |
4400 |
Min.ground clerance (mm) |
210 |
250 |
Max.Diiging radius (mm) |
4023 |
4630 |
Max.Digging Depth (mm) |
2150 |
2545 |
Max.Digging Height (mm) |
3714 |
4450 |
Max.Dumping Height (mm) |
2488 |
3050 |
Product display

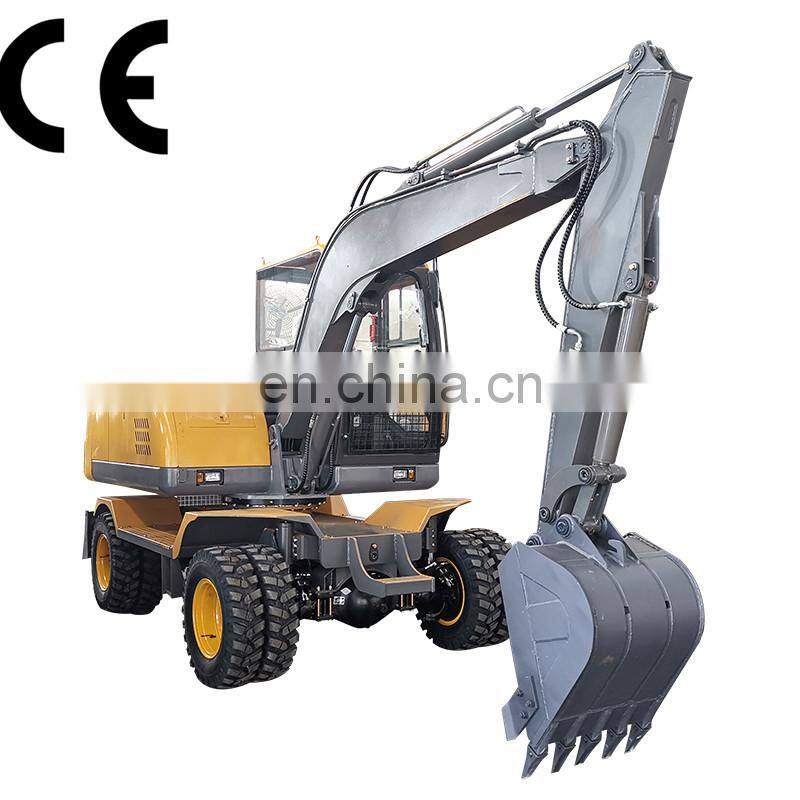

8TON wheeled excavator
Q: Are u the manufacturer ?
A: Yes, we are factory.
Q: What's your MOQ of this term?
A: 1 set.
Q: How long is your warranty?
A: Guarantee for 12 mounths starting from products arriving the destination port.
Q: Could you stick customers brand on the products?
A: Of course, we welcome the OEM orders.
Q: What's your delivery time?
A: Delivery timely about 7 days after receiving the deposit.
