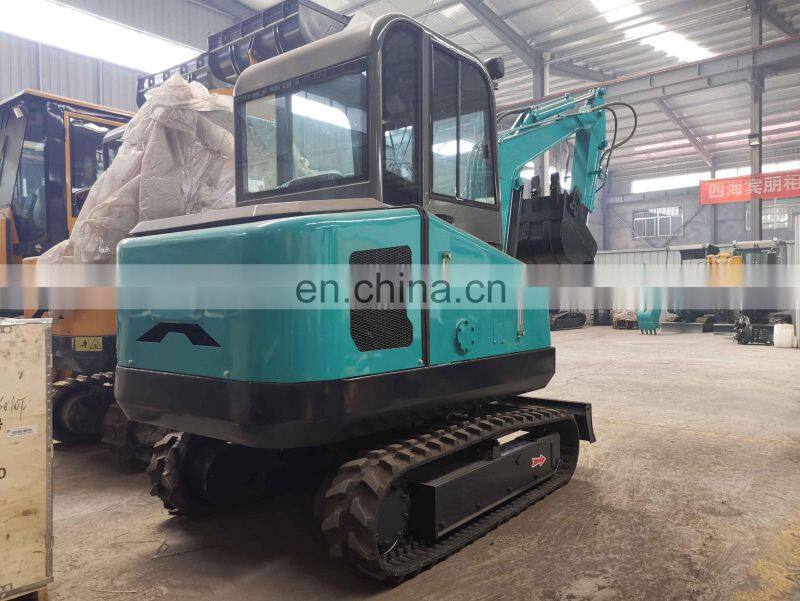

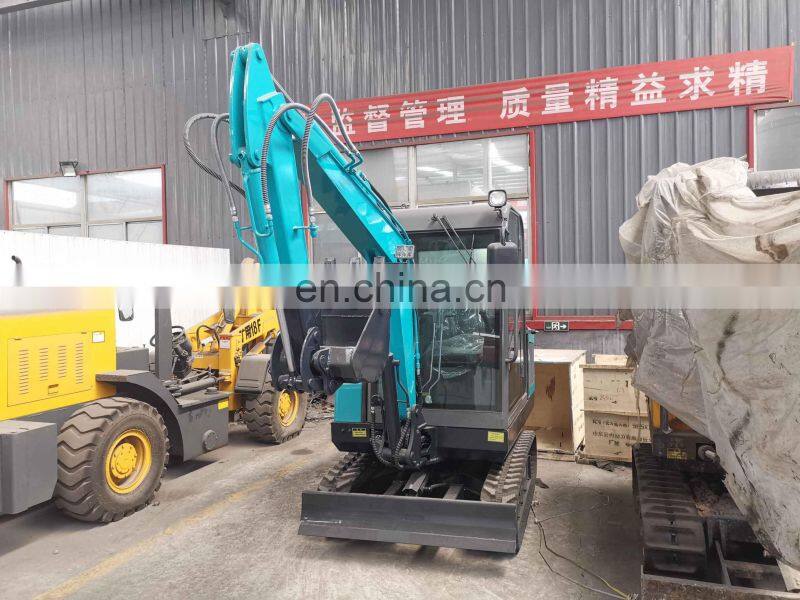

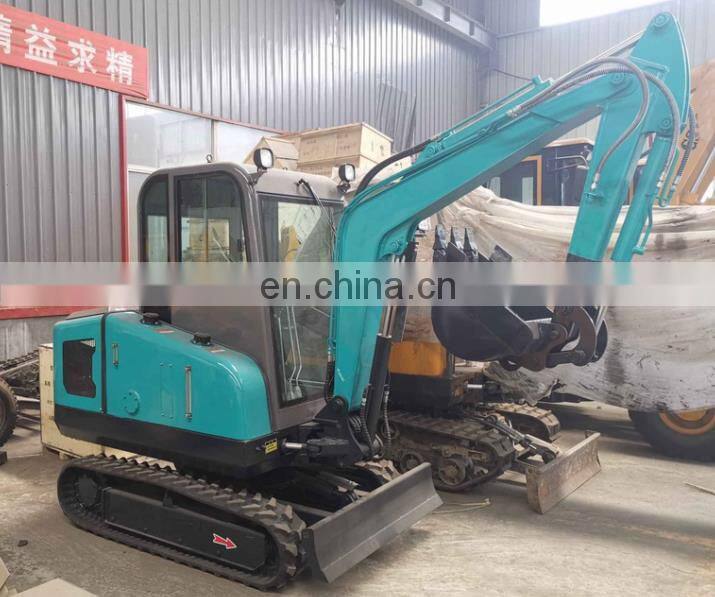

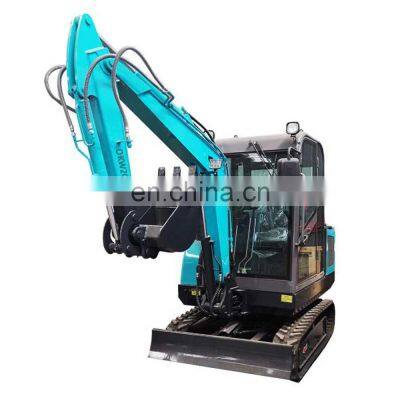

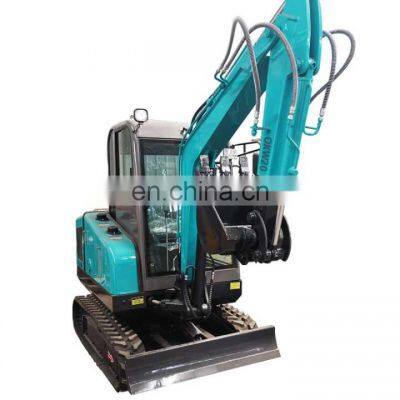

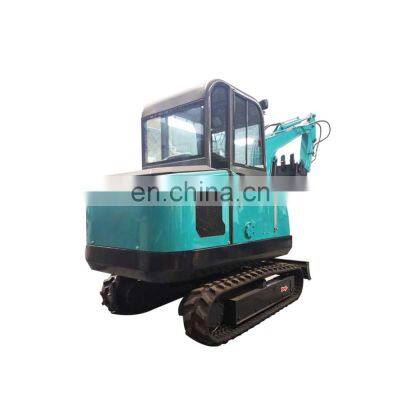

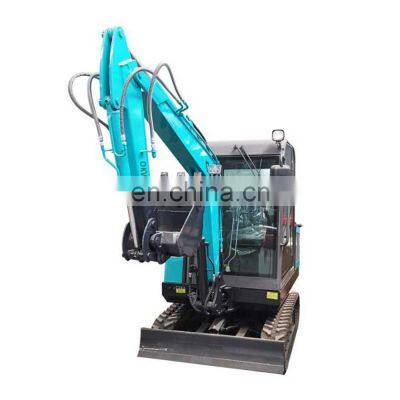

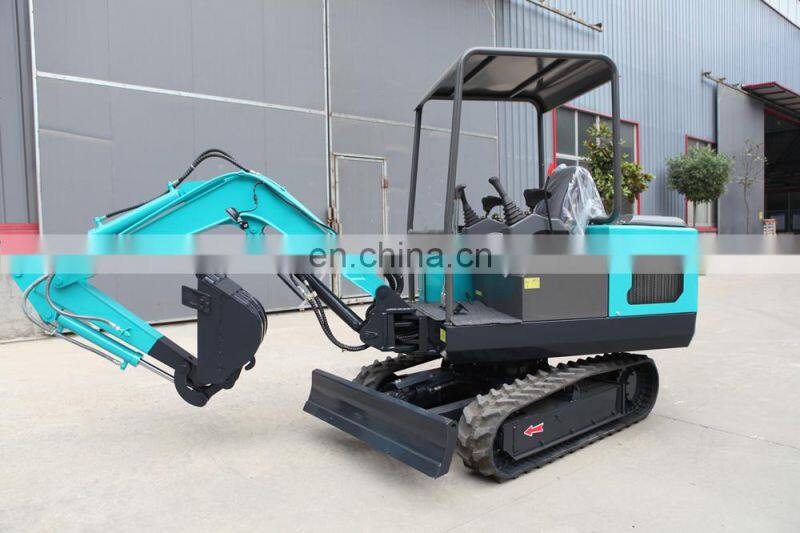

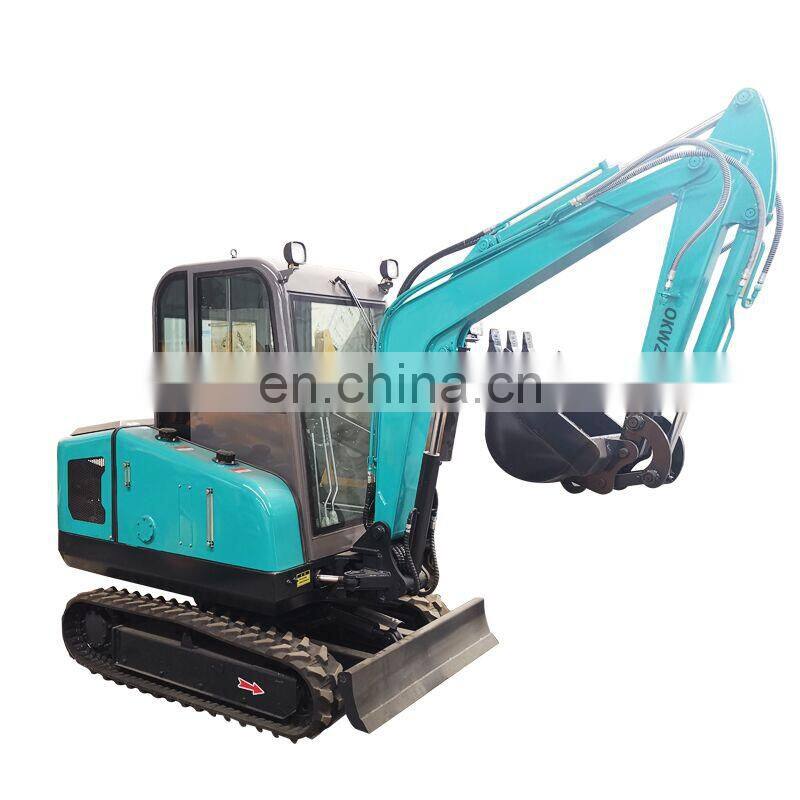

EPA certification diesel engine mini 2t excavator machine with thumb
Product Description:
1. Optional Yanmar (EPA certified) / Changchai / Laidong engines, to meet environmental protection, cost control and other needs.
2. It adopts the first-line brand high-precision 8-way multi-way valve. The valve core has its own buffer function and is controlled by ECU computer, which makes the action more flexible.
3. 1.3 tons, 1.5 tons, 1.6 tons, 1.8 tons, 2 tons, 3 tons can be equipped with high precision pilot control system. 4. Adopting Japan NACHI / American ETON hydraulic motor, small size, light weight, high efficiency and long service life.
5. Use Shimadzu gear pump / DOOSAN load sensitive variable displacement piston pump for continuous operation for up to 8 hours.
6. The boom can swing from side to side with high flexibility to meet the needs of small space operations. 7. Optional with tail or no-tail to meet the construction needs under different conditions.
8. Strengthen the engineering rubber track, built-in steel core, wear-resistant and durable.
9. Made of German Continental brand tubing, made of natural rubber. The interior uses dense steel wire to increase the service life.
Technical parameters:
|
OKW-2.0T |
|
|
Bucket Capacity |
0.07m3 |
|
Swing speed |
10-12km/h |
|
Travel Speed |
0-4.5km/h |
|
Grade Ability |
35% |
|
Bucket digging force |
1900KN |
|
Arm digging force |
1500KN |
|
Engine model |
Yanmar 3tnv70 |
|
Rated Power |
10.3kw |
|
Main pump |
Korea |
|
Walking hydraulic motor type |
American Eton |
|
Maximum working pressure |
16Mpa |
|
Track width |
230mm |
|
Fuel Tank |
20L |
|
Hydraulic Oil tank |
15.3L |
|
Overall size |
4120*1320*2550 mm |
|
Min.Front Swing radius |
1850mm |
|
Tail Swing radius |
740mm |
|
Dozer blade width |
1040mm |
|
Max.Digging radius |
3700mm |
|
Max.Digging Depth |
2150mm |
|
Max.Digging Height |
3275mm |
|
Max.Dumping Height |
2310mm |
|
dozer blade lift/digging |
275/180mm |

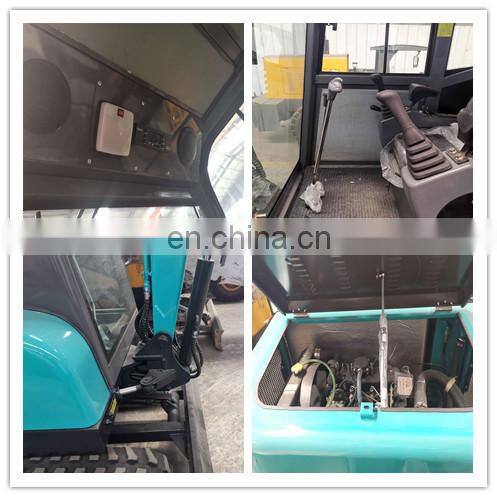

More details:
It can equip with Auger, Wood Grab, Roof, Ripper, Rake, 200mm Narrow Bucket, 400mm Standard Bucket, 500mm Leveling Bucket and other tools, machine utilization greatly improved.
Related product:
1.8T mini digging machine with canopy
Workshop show:
Customers Visit:
Certification:

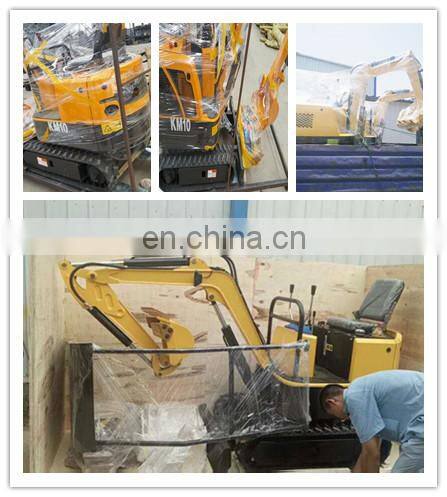

Packing and Shipping:
Company information:
Amy
Tel: +86 15215376135
Whatsapp: +86 15215376135
Wechat: jnok001annie
E-mail: jnok007(@)
