1 Output Non-Isolated DC/DC Converters Power Regulator

FOB Price

US$ 0.99

≥50000 Pieces

Port GZ
Payment TermsT/T L/C
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Top Power	Place of Origin	China
Model Number	TP78LUSeries	Weight	3G
Application	ALL	Frequency	HZ
Rated Voltage	VDC	Rated Torque	N
Rated Input Power	N	No-Load Speed	N
Max. Drilling Diameter	N	Drill Type	Other, N

Product Description

K78U03-500 1 Output Non-Isolated DC/DC Converters power regulator

TP78LUXX-0.5 series has high efficiency, short circuit protection, Thermal shutdown, no heat sink required, Industry standard pinout.ideal for redialing 78xx linear regulates and are pin compatible.

ROHS Compliant Wide input non-isolated、regulated single output   Efficiency up to 93%

Short circuit protection, Thermal shutdown Temperature range: -40ºC ~ +85ºC Low ripple noise

SIP package, UL94-V0 Compliant No heat sink required Industry standard pinout

Part Number Input Voltage (VDC) Input Voltage (VDC)

Nominal Nominal Voltage（VDC) Current（mA) (Min)

（mA） Current（mA) (Max)

（mA）

TP78LU3.3-0.5 48

9.0~72.0

3.3 10 500

TP78LU5.0-0.5 48 9.0~72.0

5.0 10 500

TP78LU6.5-0.5 48 9.0~72.0

6.5 10 500

TP78LU9.0-0.5 48 14.0~72.0

9.0 10 500

TP78LU12-0.5 48 17.0~72.0

12 10 500

TP78LU15-0.5 48 20.0~72.0

15 10 500

TP78LU24-0.5 48 36.0~72.0

24 6 300

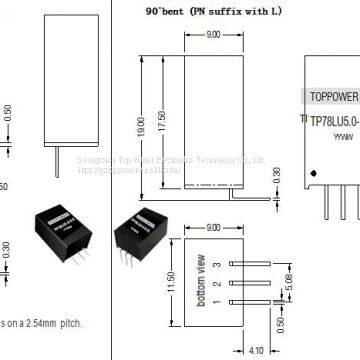

The above part number with “L” suffix are 90°bent pins power converters, for example TP78LU5.0-0.5L
