3.3-24VDC Input, Unregulated Single Voltage Output Powered Converter Convertisseur DC/DC Abaisseur
US$ 0.29
≥7777777888888 Pieces
Key Specifications
Get Latest Price
Brand Name:
TOPPOWER
Place of Origin:
China
Model Number:
TPA 5V, 12V & 15V Series
Payment & Shipping
Payment Methods:
Port of Shipment:
GZ
Delivery Detail:
7 days
Related Products
-
Non-isolated DC/DC Converter Regulator 500mA Integrated CircuitsUS$ 0.29MOQ: 2147483647 Pieces -
2:1 Wide Input DC/DC Converter Board Mount EncapsulatedUS$ 0.29MOQ: 2147483647 Pieces
-
TPG DC/DC Power Converter ModulesUS$ 0.29MOQ: 2147483647 Pieces
-
10W DC/DC Converters Board Mount Power Supply Electronic ComponentUS$ 0.23MOQ: 2147483647 Pieces
-
2X1 Size Wide Input Voltage Isolated DC/DC Converters Power Supply 40W 50WUS$ 0.23MOQ: 2147483647 Pieces
Brand Name
TOPPOWER
Place of Origin
China
Model Number
TPA 5V, 12V & 15V Series
Weight
2.1G
Application
ALL
Frequency
hz
Rated Voltage
3.3,5,6,9,12,15,24VDC
Rated Torque
/
Rated Input Power
3.3,5,6,9,12,15,24VDC
No-Load Speed
/
Max. Drilling Diameter
/
Drill Type
Other, /
| Summary Description: | |||||||||||||
|
1W Isolated Dual Output DC/DC Converters power supply module The TPA series of industrial temperature range DC/DC converters are the standard building blocks for on-board distributed power systems. They are suited for providing dual rail supplies,both SIP and DIP are available. | |||||||||||||
| Basic Terms: | |||||||||||||
| 1 | Type | TPA 5V, 12V & 15V Series | |||||||||||
| 2 | Efficiency | To 80% | |||||||||||
| 3 | Power density | up to 0.85W/cm3 | |||||||||||
| 4 | Footprint | Industry standard footprint 4.73cm2 | |||||||||||
| 5 | Related certificate | RoHS compliant | |||||||||||
| 6 | Package materials | UL94V-0 Package materials | |||||||||||
| 7 | Iutput voltage | 5V, 12V, & 15V | |||||||||||
| 8 | Output voltage | 5V,9V.12V.15V Output(Single isolated output) | |||||||||||

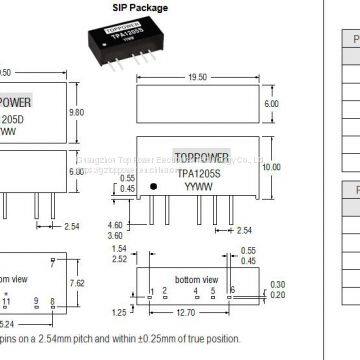

| 9 | Pin connection | 1(-Vin),2(NC),8(OV),9(+Vout),11(+Vout),14(+Vin) | |||||||||||
| 1(+Vin,2(-Vin),4(Vout),5(OV),6(+Vout) | |||||||||||||
| 10 | MOQ | 1 pc (no ltimited for considered the long coorperation relations) | |||||||||||
| 11 | Terms of payment | Western Union,T/T | |||||||||||
| 12 | Terms of delivery | DHL / UPS / EMS / TNT | |||||||||||
| 13 | Delivery time | 7-12 working days | |||||||||||
Part Number |
Nominal Input Voltage |
Output Voltage |
V |
V |
|
TPA0303DA |
3.3 |
3.3 |
TPA0305DA |
3.3 |
5 |
TPA0505DA |
5 |
5 |
TPA0509DA |
5 |
9 |
TPA0512DA |
5 |
12 |
TPA0515DA |
5 |
15 |
TPA0524DA |
5 |
24 |
TPA1203DA |
12 |
3.3 |
TPA1205DA |
12 |
5 |
TPA1209DA |
12 |
9 |
TPA1212DA |
12 |
12 |
TPA1215DA |
12 |
15 |
TPA1505DA |
15 |
5 |
TPA1512DA |
15 |
12 |
TPA1515DA |
15 |
15 |
TPA0505D |
5 |
±5 |
TPA0509D |
5 |
±9 |
TPA0512D |
5 |
±12 |
TPA0515D |
5 |
±15 |
TPA0524D |
5 |
±24 |
TPA0505S |
5 |
±5 |
TPA0509S |
5 |
±9 |
TPA0512S |
5 |
±12 |
TPA0515S |
5 |
±15 |
TPA0524S |
5 |
±24 |
TPA1205D |
12 |
±5 |
TPA1209D |
12 |
±9 |
TPA1212D |
12 |
±12 |
TPA1215D |
12 |
±15 |
TPA1224D |
12 |
±24 |
TPA1205S |
12 |
±5 |
TPA1209S |
12 |
±9 |
TPA1212S |
12 |
±12 |
TPA1215S |
12 |
±15 |
TPA1505D |
15 |
±5 |
TPA1509D |
15 |
±9 |
TPA1512D |
15 |
±12 |
TPA1515D |
15 |
±15 |
TPA1524D |
15 |
±24 |
TPA1505S |
15 |
±5 |
TPA1512S |
15 |
±12 |
TPA1515S |
15 |
±15 |
